Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAM3101AAA300IC REG LINEAR 3V 300MA SOT23-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.45V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
PAM3101AAA330IC REG LINEAR 3.3V 300MA SOT23-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.23V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
PAM3101AAA400IC REG LINEAR 4V 300MA SOT23-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 4V | - | 0.23V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
|
PAM3101AAA475IC REG LIN 4.75V 300MA SOT23-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 4.75V | - | 0.23V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-3 |
|
PAM3101DAB150IC REG LINEAR 1.5V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | 1.4V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
PAM3101DAB180IC REG LINEAR 1.8V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 1.1V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
PAM3101DAB285IC REG LIN 2.85V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.85V | - | 0.45V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
PAM3101DAB300IC REG LINEAR 3V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.45V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
PAM3101DUB330IC REG LINEAR 3.3V 300MA SC70-5 |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.23V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|

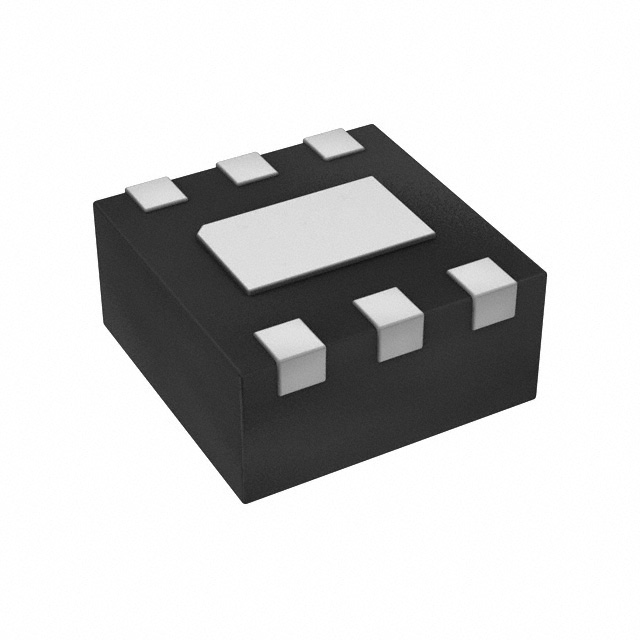

PAM3101FKF330IC REG LINEAR 3.3V 300MA 6DFN |
0 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.23V @ 300mA | 300mA | 90 µA | 90 µA | 70dB ~ 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (1.6x1.6) |
|
PAM3105ACA120IC REG LINEAR |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PAM3108AJEADJRIC REG LIN POS ADJ 1.5A 10WDFN |
0 |
|
- |
- | 10-WFDFN Exposed Pad | Bulk | Obsolete | Positive | Adjustable | 1 | 5.5V | 0.8V | 3V | 0.15V @ 1.5A (Typ) | 1.5A | 1.2 mA | - | 65dB ~ 60dB (100Hz ~ 1kHz) | Enable, Power Good | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | 10-WDFN (3x3) |
|
PAM3115ABA180IC REG LINEAR 1.8V 1.5A SOT223 |
0 |
|
- |
- | TO-261-4, TO-261AA | Bulk | Obsolete | Positive | Fixed | 1 | 3.6V | 1.8V | - | 0.35V @ 1.5A | 1.5A | 150 µA | 600 µA | 55dB ~ 35dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
|
PAM3115ABA250IC REG LINEAR 2.5V 1.5A SOT223 |
0 |
|
- |
- | TO-261-4, TO-261AA | Bulk | Obsolete | Positive | Fixed | 1 | 3.6V | 2.5V | - | 0.3V @ 1.5A | 1.5A | 150 µA | 600 µA | 55dB ~ 35dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
|
PAM3115ABA300IC REG LINEAR 3V 1.5A SOT223 |
0 |
|
- |
- | TO-261-4, TO-261AA | Bulk | Obsolete | Positive | Fixed | 1 | 3.6V | 3V | - | 0.3V @ 1.5A | 1.5A | 150 µA | 600 µA | 55dB ~ 35dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
|
PAM3115ABA330IC REG LINEAR 3.3V 1.5A SOT223 |
0 |
|
- |
- | TO-261-4, TO-261AA | Bulk | Obsolete | Positive | Fixed | 1 | 3.6V | 3.3V | - | 0.3V @ 1.5A | 1.5A | 150 µA | 600 µA | 55dB ~ 35dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | SOT-223-3 |
|
|
AP2114S-1.2G1IC REG LINEAR 1.2V 1A TO263-3 |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 6V | 1.2V | - | 1.3V @ 1A | 1A | 75 µA | - | 68dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-263 |
|
|
AP2114S-1.8G1IC REG LINEAR 1.8V 1A TO263-3 |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 6V | 1.8V | - | 0.7V @ 1A | 1A | 75 µA | - | 68dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-263 |
|
|
AP2114S-3.3G1IC REG LINEAR 3.3V 1A TO263-3 |
0 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | Positive | Fixed | 1 | 6V | 3.3V | - | 0.75V @ 1A | 1A | 90 µA | - | 65dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Short Circuit | -40°C ~ 85°C | - | - | Surface Mount | TO-263 |
|
AZ1084T-3.3E1IC REG LINEAR 3.3V 5A TO220-3 |
0 |
|
- |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 12V | 3.3V | - | 1.5V @ 5A | 5A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
