Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE4471GNUMA1IC REG LINEAR POS ADJ DSO20 |
0 |
|
- |
OPTIREG™ | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Positive | Adjustable (Fixed) | 3 | 40V | 5V, Tracking | - | 0.55V @ 450mA, 0.6V @ 50mA, 0.6V @ 100mA | 450mA, 50mA, 100mA | 1.8 mA | - | 30dB (20Hz ~ 20kHz), 30dB (20hz ~ 20kHz), 30dB (20Hz ~ 20kHz) | Enable, Reset, Watchdog | Over Temperature, Over Voltage, Reverse Polarity, Short Circuit, Transient Voltage | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-20 |
|
TLE4295GV50NTSA1IC REG LINEAR 5V 30MA SCT595-5 |
0 |
|
- |
OPTIREG™ | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.4V @ 20mA | 30mA | 200 µA | 4 mA | 60dB (100Hz) | Power Fail | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-SCT595-5 |
|
LDLN025J50RIC REG LINEAR 5V 250MA 4FLIPCHIP |
0 |
|
Datasheet | - | 4-XFBGA, FCBGA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 5V | - | 0.2V @ 250mA | 250mA | 25 µA | 425 µA | 80dB ~ 60dB (100Hz ~ 100KHz) | Enable | Over Current, Over Temperature, Short Circuit, Soft Start | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-FlipChip (0.63x0.63) |
|

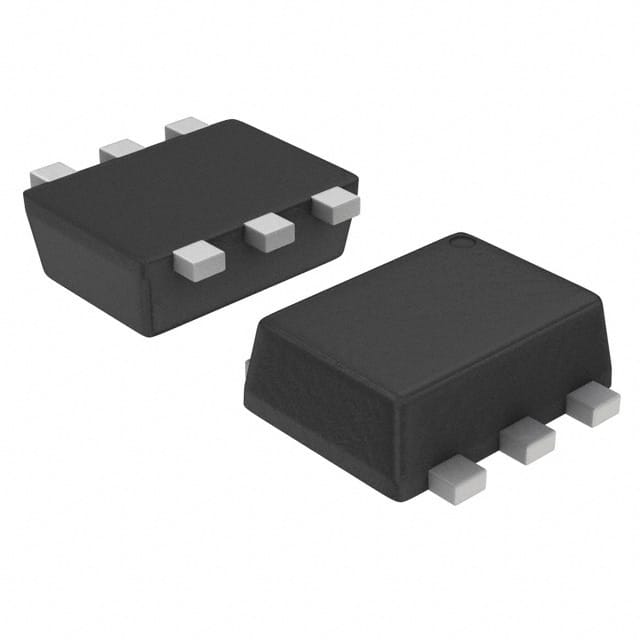

NCP170BXV190T2GIC REG LIN 1.9V 150MA SOT563-6 |
0 |
|
Datasheet | - | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.9V | - | - | 150mA | 900 nA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-563 |
|
TLE4276SVAKSA2IC REG LIN POS ADJ 400MA TO220-5 |
0 |
|
Datasheet | OPTIREG™ | TO-220-5 | Tube | Obsolete | Positive | Adjustable | 1 | 40V | 2.5V | 20V | 0.5V @ 250mA | 400mA | 200 µA | 25 mA | 54dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Through Hole | P-TO220-5-43 |
|
TLE4276GVATMA4IC REG LIN POS ADJ 400MA TO220-5 |
0 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TLE4276GV50ATMA2IC REG LIN 5V 400MA TO263-5-1 |
0 |
|
Datasheet | OPTIREG™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 40V | 5V | - | 0.5V @ 250mA | 400mA | 200 µA | 25 mA | 54dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5-1 |
|
TLE4276GVATMA2IC REG LIN POS ADJ 400MA TO263-5 |
0 |
|
Datasheet | OPTIREG™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Adjustable | 1 | 40V | 2.5V | 20V | 0.5V @ 250mA | 400mA | 200 µA | 25 mA | 54dB (100Hz) | Inhibit | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5-1 |
|
MCP1702-4002E/TOVAOIC REG LINEAR 4V 250MA TO92-3 |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bag | Active | Positive | Fixed | 1 | 13.2V | 4V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Through Hole | TO-92-3 |
|
MAQ5300-1.5YML-TRVAOIC REG LINEAR 1.5V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.5V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-1.8YML-T5VAOIC REG LINEAR 1.8V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
|
MAQ5300-2.5YML-TRVAOIC REG LINEAR 2.5V 300MA 6DFN |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad, 6-MLF® | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.2V @ 300mA | 300mA | 120 µA | - | 65dB ~ 42dB (1kHz ~ 20kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-DFN (2x2) |
|
MCP1700T-1802E/MBVAOIC REG LINEAR 1.8V 200MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 1.8V | - | 0.35V @ 200mA | 200mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
|
MCP1700T-3302E/MBVAOIC REG LINEAR 3.3V 250MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
|
MCP1700T-5002E/MBVAOIC REG LINEAR 5V 250MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 6V | 5V | - | 0.35V @ 250mA | 250mA | 4 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
|
MCP1702T-5002E/MBVAOIC REG LINEAR 5V 250MA SOT89-3 |
0 |
|
Datasheet | - | TO-243AA | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 13.2V | 5V | - | 0.65V @ 250mA | 250mA | 5 µA | - | 44dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-89-3 |
|
MCP1703AT-3302E/CBVAOIC REG LIN 3.3V 250MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
|
MCP1703T-3002E/CBVAOIC REG LINEAR 3V 250MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3V | - | 0.975V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
|
MCP1703T-3302E/CBVAOIC REG LIN 3.3V 250MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 3.3V | - | 0.725V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
|
|
MCP1703T-5002E/CBVAOIC REG LINEAR 5V 250MA SOT23A-3 |
0 |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 16V | 5V | - | 0.65V @ 250mA | 250mA | 5 µA | - | 35dB (100Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SOT-23A-3 |
