Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT7M8218B33TAEXIC REG LINEAR 3.3V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 150mA (Typ) | 300mA | 50 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
TLE4262GMXUMA2IC REG LINEAR 5V 200MA DSO14 |
0 |
|
- |
OPTIREG™ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 150mA | 200mA | 50 µA | 23 mA | 54dB (100Hz) | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14 |
|
NCP140AMXC330TCGIC REG LINEAR 3.3V 150MA 4XDFN |
0 |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.22V @ 150mA | 150mA | 75 µA | - | 62dB ~ 55dB (100Hz ~ 1kHz) | Enable | Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (0.8x0.8) |
|
NCV8161BSN180T1GIC REG LINEAR 1.8V 450MA 5TSOP |
0 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.48V @ 450mA | 450mA | 23 µA | - | 91dB ~ 48dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|

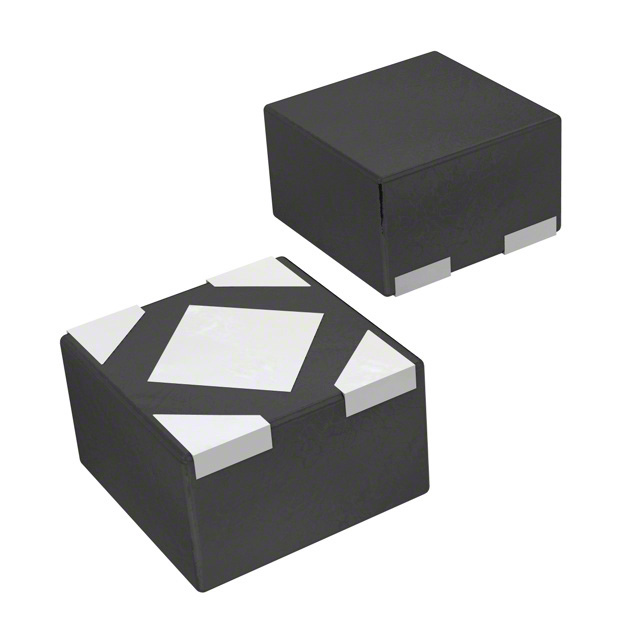

NCP103BMX180TCGIC REG LINEAR 1.8V 150MA 4UDFN |
0 |
|
Datasheet | - | 4-UDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 150mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
PT7M8202B12TA5EIC REG LINEAR 1.2V 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.2V | - | - | 300mA | 100 µA | - | 80dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PT7M8202B15TA5EIC REG LINEAR 1.5V 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 300mA | 100 µA | - | 80dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PT7M8202B18TA5EIC REG LINEAR 1.8V 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.51V @ 300mA | 300mA | 100 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PT7M8202B25TA5EIC REG LINEAR 2.5V 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.39V @ 300mA | 300mA | 100 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PT7M8202B28TA5EIC REG LINEAR 2.8V 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.35V @ 300mA | 300mA | 100 µA | - | - | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
PT7M8202B33TA5EIC REG LINEAR 3.3V 300MA SOT23-5 |
0 |
|
- |
- | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.35V @ 300mA | 300mA | 100 µA | - | 80dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
PT7M8216B25XZEIC REG LINEAR 2.5V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.5V | - | 0.18V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1x1) |
|
PT7M8216B28XYEIC REG LINEAR 2.8V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XFDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (0.8x0.8) |
|
PT7M8216B28XZEIC REG LINEAR 2.8V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B30XYEIC REG LINEAR 3V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XFDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (0.8x0.8) |
|
|
PT7M8216B30XZEIC REG LINEAR 3V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
|
PT7M8216B33XYEIC REG LINEAR 3.3V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XFDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (0.8x0.8) |
|
|
PT7M8216B33XZEIC REG LINEAR 3.3V 300MA 4UDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.15V @ 150mA (Typ) | 300mA | 65 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-UDFN (1.0x1.0) |
|
PT7M8218B09CEIC REG LINEAR 0.9V 300MA SC70-5 |
0 |
|
Datasheet | - | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 0.9V | - | 0.18V @ 150mA (Typ) | 300mA | 50 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
PT7M8218B09TAEIC REG LINEAR 0.9V 300MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Bulk | Obsolete | Positive | Fixed | 1 | 5.5V | 0.9V | - | 0.18V @ 150mA (Typ) | 300mA | 50 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
