Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ1085T-5.0E1IC REG LINEAR 5V 3A TO220-3 |
0 |
|
- |
- | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 12V | 5V | - | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
AZ1085T-ADJE1IC REG LINEAR POS ADJ 3A TO220-3 |
0 |
|
- |
- | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 12V | 1.25V | - | 1.5V @ 3A | 3A | 10 mA | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
AZ1086D-3.3E1IC REG LINEAR 3.3V 1.5A TO252-2 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 3.3V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
|
AZ1086T-5.0E1IC REG LINEAR 5V 1.5A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 1.5V @ 1.5A | 1.5A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
AZ317D-E1IC REG LINEAR POS ADJ 1A TO252-3 |
0 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Obsolete | Positive | Adjustable | 1 | 15V | 1.25V | 13.7V | 1.3V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252-3 |
|
AZ78L05Z-G1IC REG LINEAR 5V 100MA TO92 |
0 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 15V | 5V | - | 1.6V @ 40mA (Typ) | 100mA | 5 mA | - | 62dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 |
|
|
AZ78L09Z-G1IC REG LINEAR 9V 100MA TO92 |
0 |
|
- |
- | TO-226-3, TO-92-3 (TO-226AA) | Tube | Obsolete | Positive | Fixed | 1 | 18V | 9V | - | 1.6V @ 40mA (Typ) | 100mA | 5 mA | - | 44dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Through Hole | TO-92 |
|
ZSPM4121AI1W25IC REG LINEAR 8DFN T&R |
0 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZSPM4141AI1W31IC REG LINEAR 8DFN T&R 7" |
0 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MCP1810T-28I/OTIC REG LINEAR 2.8V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 2.8V | - | 0.38V @ 150mA | 150mA | 50 nA | 290 µA | 40dB (100Hz) | Enable | Over Current | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SOT-23-5 |
|
NCP140AMXC180TCGIC REG LINEAR 1.8V 150MA 4XDFN |
0 |
|
Datasheet | - | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | 0.39V @ 150mA | 150mA | 75 µA | - | 62dB ~ 55dB (100Hz ~ 1kHz) | Enable | Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (0.8x0.8) |
|

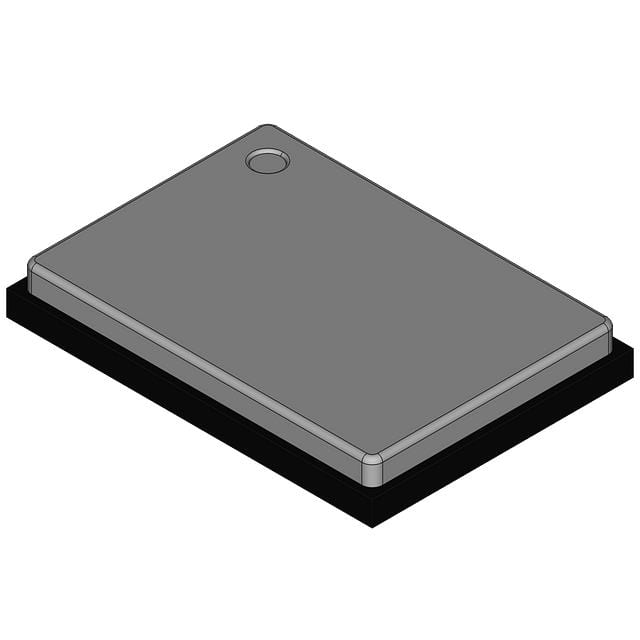

NCP140BMXD330TCGIC REG LINEAR 3.3V 150MA 4XDFN |
0 |
|
Datasheet | - | 4-XDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.22V @ 150mA | 150mA | 75 µA | - | 62dB ~ 55dB (100Hz ~ 1kHz) | Enable | Over Temperature | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 4-XDFN (1x1) |
|
NCP163AFCS270T2GIC REG LINEAR 2.7V 250MA 4WLCSP |
0 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
NCP163AFCT270T2GIC REG LINEAR 2.7V 250MA 4WLCSP |
0 |
|
Datasheet | - | 4-XFBGA, WLCSP | Tape & Reel (TR) | Active | Positive | Fixed | 1 | 5.5V | 2.7V | - | - | 250mA | 20 µA | - | 91dB ~ 60dB (100Hz ~ 100kHz) | Enable | Over Current, Over Temperature, Soft Start | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-WLCSP (0.64x0.64) |
|
LT1129MPST-3.3IC REG LIN 3.3V 700MA SOT223-3 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tube | Obsolete | Positive | Fixed | 1 | 30V | 3.3V | - | 0.7V @ 700mA | 700mA | 70 µA | 90 mA | 64dB (120Hz) | Enable | Over Temperature, Reverse Polarity | -55°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
LT3009ESC8IC REG LIN POS ADJ 20MA SC70-8 |
0 |
|
Datasheet | - | 8-VFSOP (0.049", 1.25mm Width) | Tube | Obsolete | Positive | Adjustable | 1 | 20V | 0.6V | 19.5V | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 72dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-8 |
|
|
LT3009ESC8-1.2IC REG LINEAR 1.2V 20MA SC70 |
0 |
|
Datasheet | - | 8-VFSOP (0.049", 1.25mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.2V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 68dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-8 |
|
|
LT3009ESC8-1.5IC REG LINEAR 1.5V 20MA SC70 |
0 |
|
Datasheet | - | 8-VFSOP (0.049", 1.25mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.5V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 67dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-8 |
|
|
LT3009ESC8-1.8IC REG LINEAR 1.8V 20MA SC70 |
0 |
|
Datasheet | - | 8-VFSOP (0.049", 1.25mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 20V | 1.8V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 66dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-8 |
|
|
LT3009ESC8-2.5IC REG LINEAR 2.5V 20MA SC70 |
0 |
|
Datasheet | - | 8-VFSOP (0.049", 1.25mm Width) | Tube | Obsolete | Positive | Fixed | 1 | 20V | 2.5V | - | 0.45V @ 20mA | 20mA | 6 µA | 1 mA | 63dB (120Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | - | - | Surface Mount | SC-70-8 |
