Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAN2504S25XIC REG LINEAR 2.5V 200MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.2V @ 200mA | 200mA | 75 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
FAN1117AD25XIC REG LINEAR 2.5V 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1950D25XIC REG LINEAR 2.5V 1.5A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 14V | 2.5V | - | 0.5V @ 1.5A | 1.5A | - | - | - | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1086D33XIC REG LINEAR 3.3V 1.5A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 3.3V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
ZMR250CLIC REG LINEAR 2.5V 50MA TO92-3 |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Box (TB) | Obsolete | Positive | Fixed | 1 | 22.5V | 2.5V | - | - | 50mA | 40 µA | - | 75dB (120Hz) | - | Over Current, Over Temperature | -55°C ~ 125°C | - | - | Through Hole | TO-92 |
|
ZSR1200GTAIC REG LINEAR 12V 200MA SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 20V | 12V | - | - | 200mA | 600 µA | - | 57dB (120Hz) | - | Over Temperature, Short Circuit | -55°C ~ 125°C | - | - | Surface Mount | SOT-223-3 |
|
L7812ACPIC REG LINEAR 12V 1.5A TO220FP |
0 |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | Positive | Fixed | 1 | 35V | 12V | - | 2V @ 1A (Typ) | 1.5A | 6 mA | - | 60dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | - | - | Through Hole | TO-220FP |
|
SG7805AKIC REG LINEAR 5V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 50V | 5V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 68dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

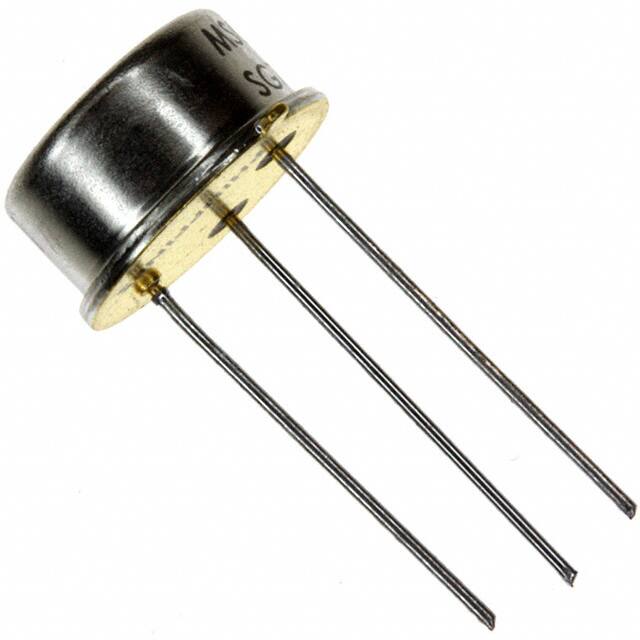

SG7805ATIC REG LINEAR 5V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 50V | 5V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 68dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

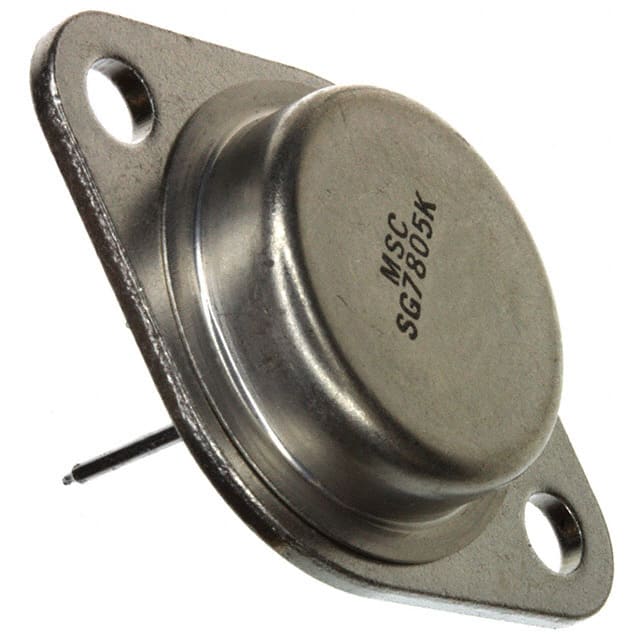

SG7805KIC REG LINEAR 5V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 68dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

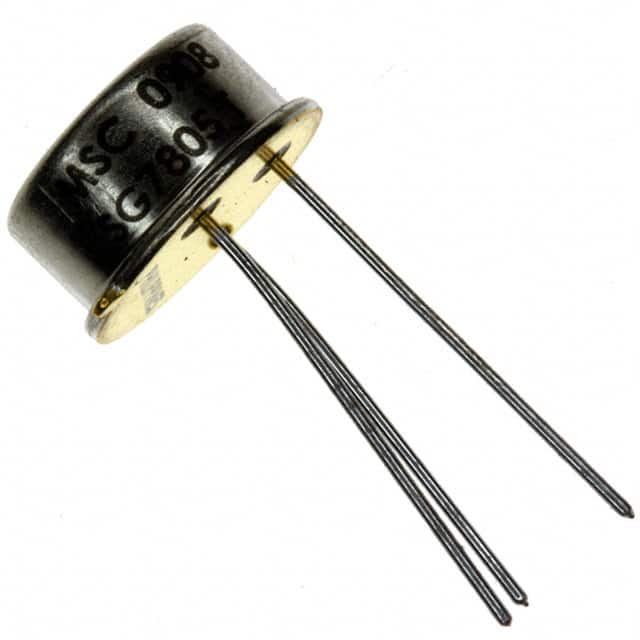

SG7805TIC REG LINEAR 5V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 5V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 68dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7812AKIC REG LINEAR 12V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

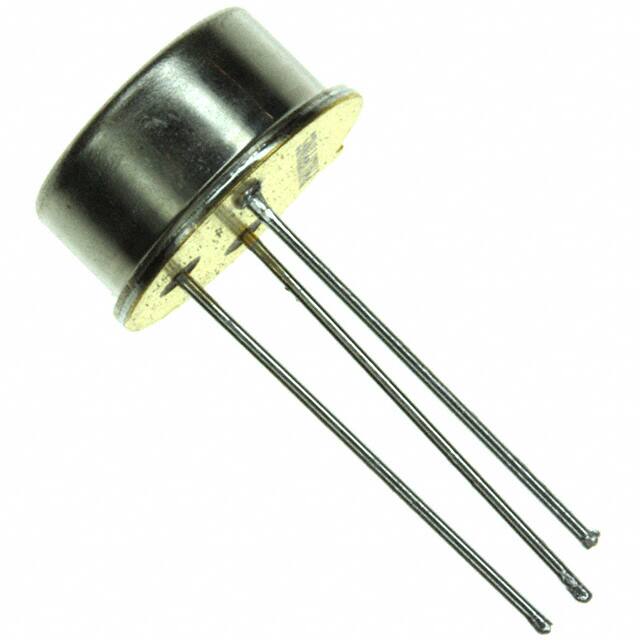

SG7812ATIC REG LINEAR 12V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 50V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7812KIC REG LINEAR 12V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
SG7812TIC REG LINEAR 12V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 12V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 61dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|
SG7815AKIC REG LINEAR 15V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 50V | 15V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 60dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
SG7815ATIC REG LINEAR 15V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 50V | 15V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 60dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

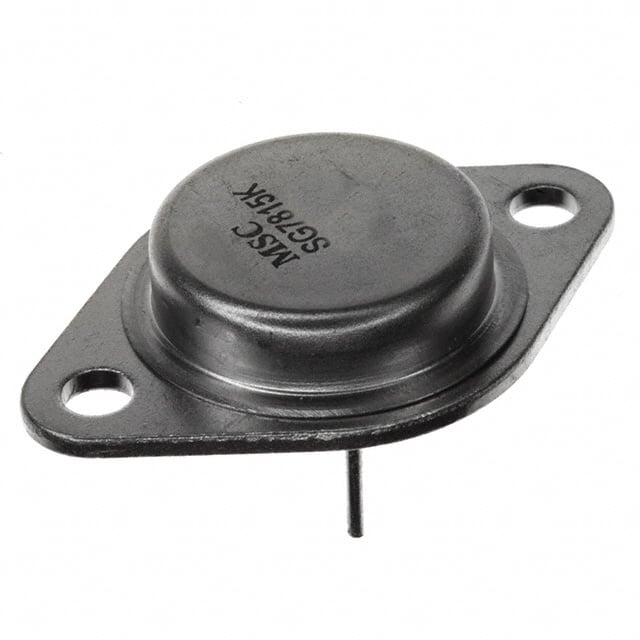

SG7815KIC REG LINEAR 15V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 60dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

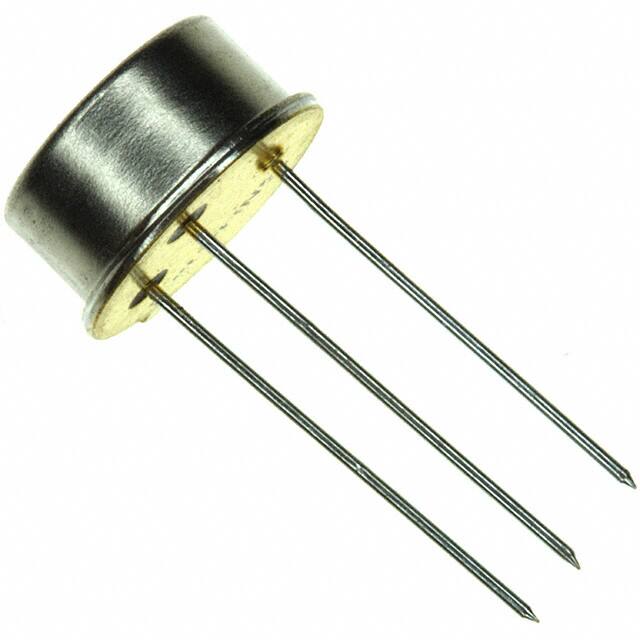

SG7815TIC REG LINEAR 15V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Positive | Fixed | 1 | 35V | 15V | - | 2.5V @ 500mA | 1.5A | - | 7 mA | 60dB (120Hz) | Current Limit, Enable | Over Current, Over Temperature | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

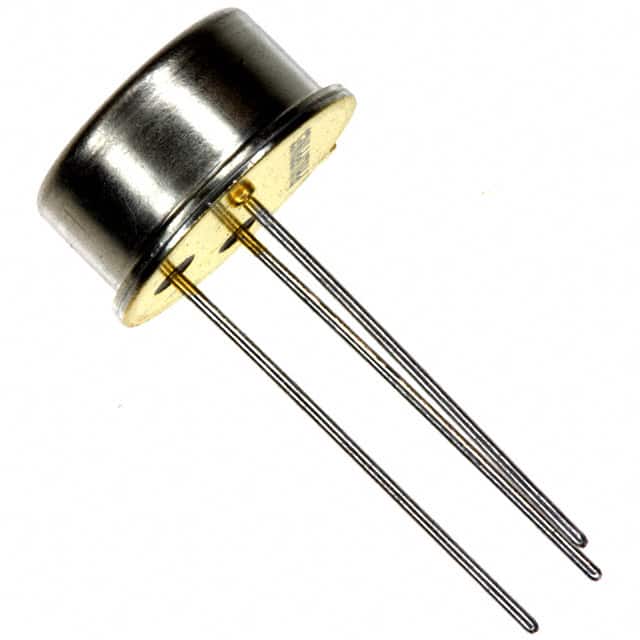

SG7905ATIC REG LINEAR -5V 500MA TO99 |
0 |
|
Datasheet | - | TO-39 | Bulk | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 500mA | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -55°C ~ 150°C | - | - | Through Hole | TO-99 |
