Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

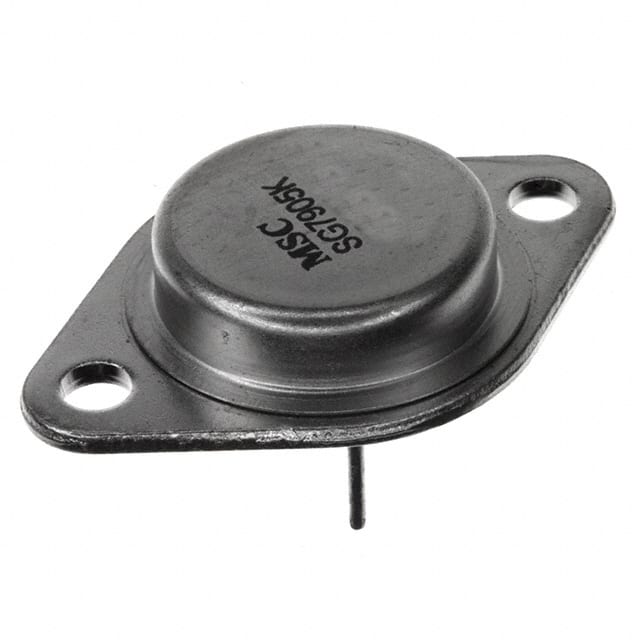

SG7905KIC REG LINEAR -5V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 1.5A | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

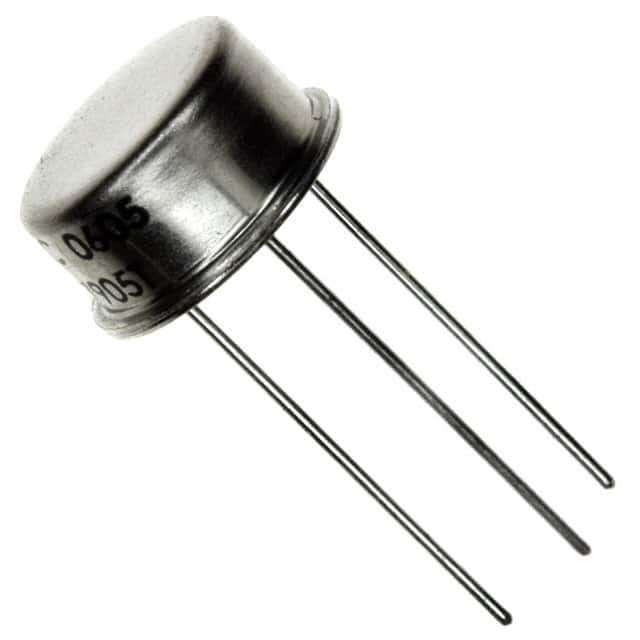

SG7905TIC REG LINEAR -5V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -5V | - | 2.3V @ 500mA | 1.5A | 2.5 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

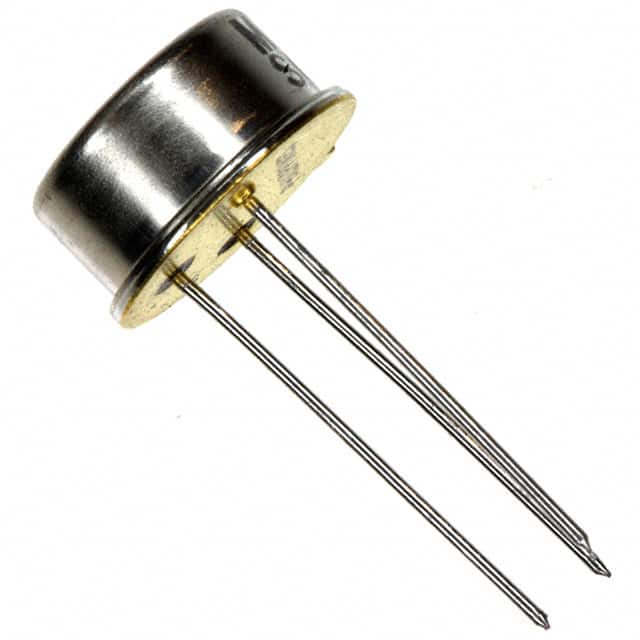

SG7912ATIC REG LINEAR -12V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

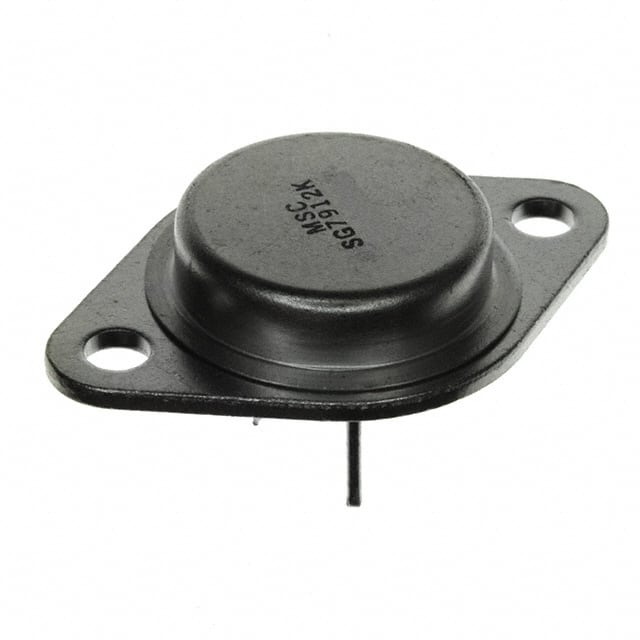

SG7912KIC REG LINEAR -12V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

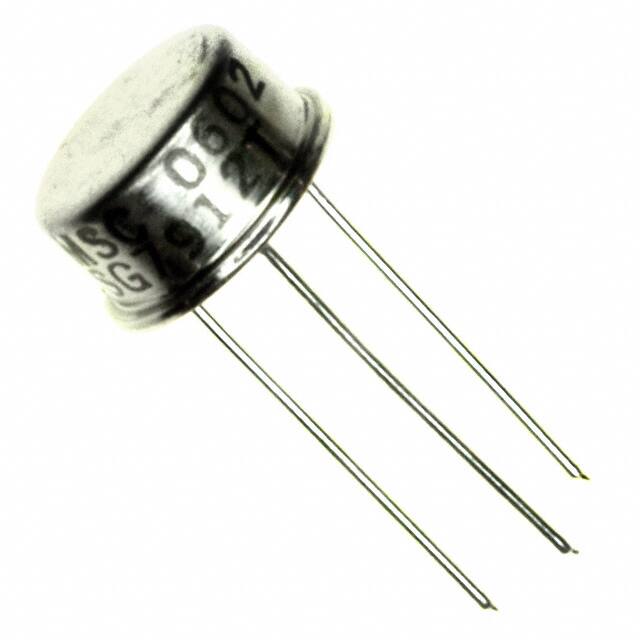

SG7912TIC REG LINEAR -12V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -12V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

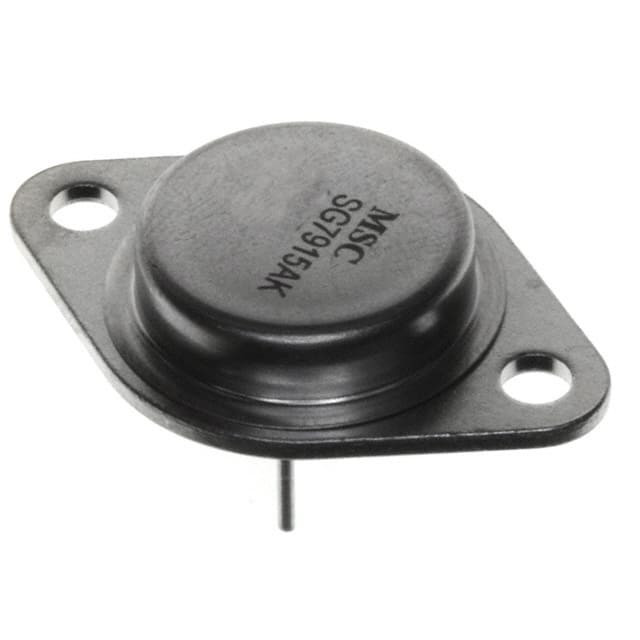

SG7915AKIC REG LINEAR -15V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -15V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|

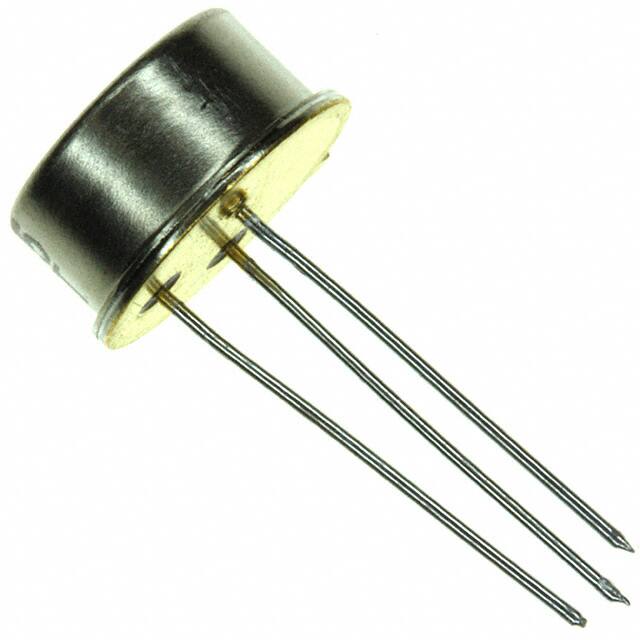

SG7915ATIC REG LINEAR -15V 1.5A TO39 |
0 |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Active | Negative | Fixed | 1 | -35V | -15V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-39 |
|

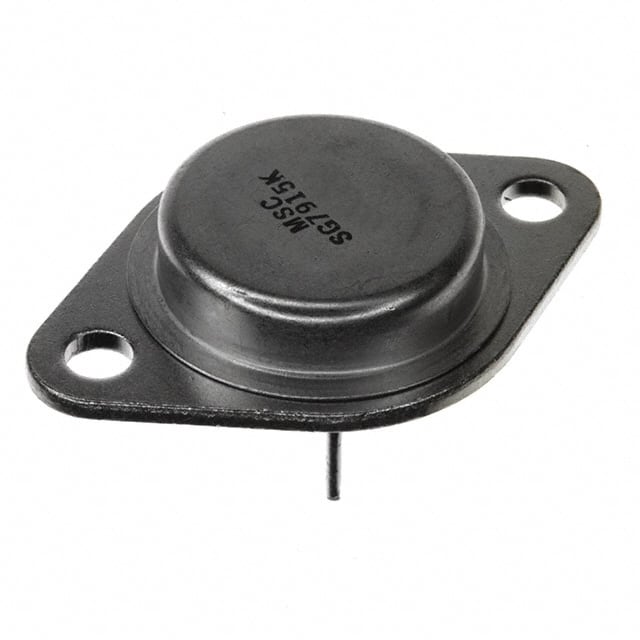

SG7915KIC REG LINEAR -15V 1.5A TO204AD |
0 |
|
Datasheet | - | TO-204AA, TO-3 | Bulk | Active | Negative | Fixed | 1 | -35V | -15V | - | 2.3V @ 500mA | 1.5A | 4 mA | - | 54dB (120Hz) | - | Over Current, Over Temperature, Thermal Shutdown | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | TO-204AA (TO-3) |
|
SG723TIC REG LINEAR POS/NEG ADJ TO99 |
0 |
|
Datasheet | - | TO-99-10 | Bulk | Active | Positive or Negative | Adjustable | 1 | 40V | 37V | - | - | 150mA | - | - | 86dB ~ 74dB (50Hz ~ 10kHz) | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-10 |
|
TLE4299GNTMA1IC REG LINEAR 5V 150MA DSO8 |
0 |
|
Datasheet | OPTIREG™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 105 µA | 2 mA | 66dB (100Hz) | Reset | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-DSO-8-3 |
|
TLE4251GNTMA1IC REG LIN POS ADJ 400MA TO263-5 |
0 |
|
Datasheet | OPTIREG™ | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 40V | Tracking | - | 0.52V @ 300mA | 400mA | 300 µA | 20 mA | 60dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO263-5-1 |
|
TLE4284DV50NTMA1IC REG LINEAR 5V 1A TO252-3-11 |
0 |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 1 | 40V | 5V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
|
TLE4284DV18ATMA1IC REG LINEAR 1.8V 1A TO252-3-11 |
0 |
|
Datasheet | OPTIREG™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 40V | 1.8V | - | 1.4V @ 1A | 1A | 1.6 mA | - | 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 150°C | Automotive | AEC-Q100 | Surface Mount | PG-TO252-3-11 |
|
TLE4269GLXUMA1IC REG LINEAR 5V 150MA DSO20 |
0 |
|
Datasheet | OPTIREG™ | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 45V | 5V | - | 0.5V @ 100mA | 150mA | 300 µA | 8 mA | - | Reset | Over Temperature, Reverse Polarity, Short Circuit | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-20-35 |
|
LP2951-02BNIC REG LIN POS ADJ 100MA 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 100mA | 100mA | 150 µA | 14 mA | - | Enable, Error Flag | - | -40°C ~ 125°C | - | - | Through Hole | 8-PDIP |
|
|
LP2951-03BNIC REG LIN POS ADJ 100MA 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Positive | Adjustable (Fixed) | 1 | 30V | 1.24V (5V) | 29V | 0.6V @ 100mA | 100mA | 150 µA | 14 mA | - | Enable, Error Flag | - | -40°C ~ 125°C | - | - | Through Hole | 8-PDIP |
|
MIC2214-JPBML-TRIC REG LINEAR 2.5V/3V 10MLF |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 5.5V | 2.5V, 3V | - | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable, Power On Reset | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC2214-JQBML TRIC REG LINEAR 2.5V/3.1V 10MLF |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Obsolete | Positive | Fixed | 2 | 5.5V | 2.5V, 3.1V | - | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable, Power On Reset | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC2214-KKBML-TRIC REG LINEAR 2.6V/2.6V 10MLF |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Positive | Fixed | 2 | 5.5V | 2.6V, 2.6V | - | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable, Power On Reset | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
|
|
MIC2214-KKYMLIC REG LINEAR 2.6V/2.6V 10MLF |
0 |
|
Datasheet | - | 10-VFDFN Exposed Pad, 10-MLF® | Bulk | Obsolete | Positive | Fixed | 2 | 5.5V | 2.6V, 2.6V | - | 0.25V @ 150mA, 0.42V @ 300mA | 150mA, 300mA | 80 µA | - | 60dB ~ 40dB (1KHz ~ 20kHz) | Enable, Power On Reset | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | 10-MLF® (3x3) |
