Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAN1585ATIC REG LINEAR POS ADJ 5A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 18V | 1.5V | 3.6V | 1.3V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 25°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
FAN1616AS18XIC REG LIN 1.8V 500MA SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1616AS25XIC REG LIN 2.5V 500MA SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
FAN1086M25XIC REG LINEAR 2.5V 1.5A TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 2.5V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
FAN1585AMXIC REG LINEAR POS ADJ 5A TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.5V | 3.6V | 1.3V @ 5A | 5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 25°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
|
FAN1086DXIC REG LIN POS ADJ 1.5A TO252AA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7.5V | 1.25V | 6V | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|

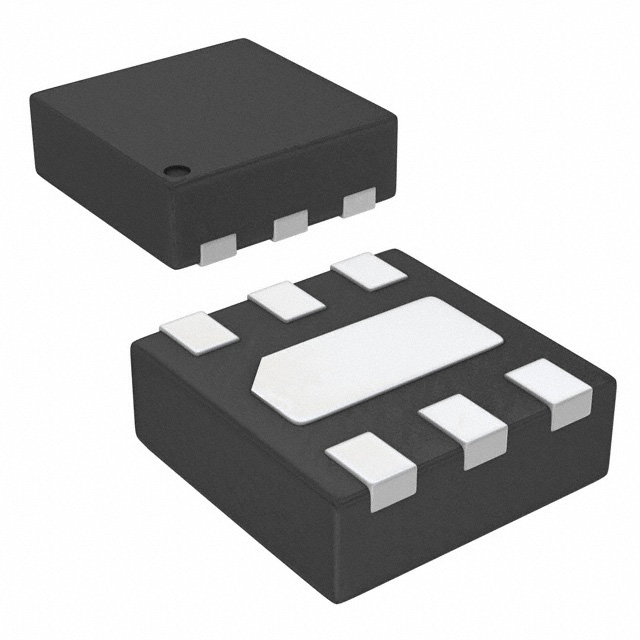

FAN2559MP15XIC REG LINEAR 1.5V 180MA 6MLP |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.5V | - | - | 180mA | 150 µA | - | 50dB (100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
FAN2500S26XIC REG LINEAR 2.6V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.6V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
FAN2500S27XIC REG LINEAR 2.7V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.7V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2500S285XIC REG LIN 2.85V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.85V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2501S25XIC REG LINEAR 2.5V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.5V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2501S26XIC REG LINEAR 2.6V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.6V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2501S27XIC REG LINEAR 2.7V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.7V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2501S285XIC REG LIN 2.85V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.85V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2501S28XIC REG LINEAR 2.8V 100MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.14V @ 100mA | 100mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
FAN2502S28XIC REG LINEAR 2.8V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.8V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2503S26XIC REG LINEAR 2.6V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.6V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2503S27XIC REG LINEAR 2.7V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.7V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2503S285XIC REG LIN 2.85V 150MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.85V | - | 0.18V @ 150mA | 150mA | 50 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
FAN2504S26XIC REG LINEAR 2.6V 200MA SOT23-5 |
0 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 6.5V | 2.6V | - | 0.2V @ 200mA | 200mA | 75 µA | - | 43dB (120Hz) | Enable | Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
