Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAN1117AD285XIC REG LINEAR 2.85V 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 2.85V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
FAN1117ASXIC REG LINEAR POS ADJ 1A SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 18V | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
FAN2559MP18XIC REG LINEAR 1.8V 180MA 6MLP |
0 |
|
Datasheet | - | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 5.5V | 1.8V | - | - | 180mA | 150 µA | - | 50dB (100kHz) | Enable, Power Good | Over Current, Over Temperature | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (2x2) |
|
|
FAN1117AD33XIC REG LINEAR 3.3V 1A DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 3.3V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1117ADXIC REG LINEAR POS ADJ 1A TO252AA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 18V | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
FAN1581M15XIC REG LINEAR 1.5V 5A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
FAN1582M15XIC REG LINEAR 1.5V 3A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.5V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Surface Mount | TO-263-5 |
|
|
FAN1582M25XIC REG LINEAR 2.5V 3A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 2.5V | - | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Surface Mount | TO-263-5 |
|

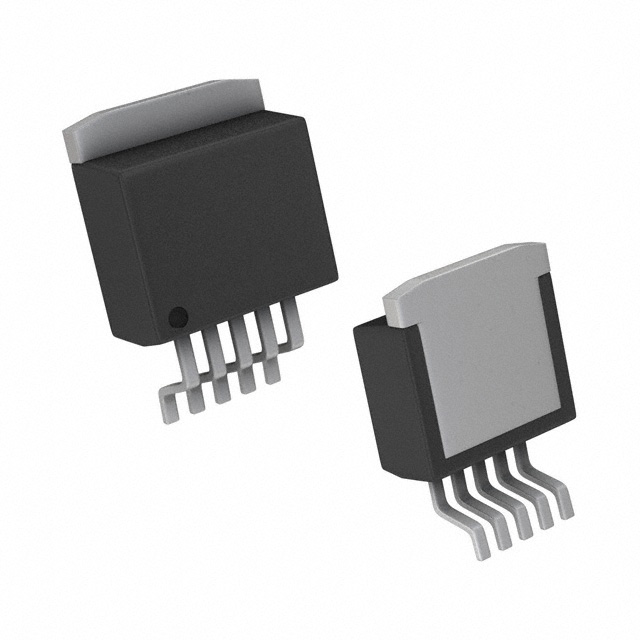

FAN1582MXIC REG LINEAR POS ADJ 3A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.7V | 1.18V @ 3A | 3A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | -65°C ~ 150°C | - | - | Surface Mount | TO-263-5 |
|
|
FAN1086MXIC REG LIN POS ADJ 1.5A TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7.5V | 1.25V | 6V | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
FAN1117AT18IC REG LINEAR 1.8V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
FAN1616ASXIC REG LIN POS ADJ 500MA SOT223 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 18V | 1.25V | 16.8V | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
|
FAN1084DXIC REG LIN POS ADJ 4.5A TO252AA |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.5V @ 4.5A | 4.5A | 4 mA | - | - | - | Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1086M33XIC REG LINEAR 3.3V 1.5A TO263-3 |
0 |
|
Datasheet | - | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 3.3V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | TO-263-3 |
|
|
FAN1581MXIC REG LINEAR POS ADJ 5A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.7V | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
|
|
FAN1616AD18XIC REG LINEAR 1.8V 500MA DPAK |
0 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 18V | 1.8V | - | 1.2V @ 500mA | 500mA | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | -40°C ~ 125°C | - | - | Surface Mount | TO-252AA |
|
|
FAN1084TIC REG LIN POS ADJ 4.5A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Adjustable | 1 | 7V | 1.25V | 5.5V | 1.5V @ 4.5A | 4.5A | 4 mA | - | - | - | Over Temperature | 25°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
FAN1086S33XIC REG LINEAR 3.3V 1.5A SOT223-4 |
0 |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7.5V | 3.3V | - | 1.5V @ 1.5A | 1.5A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 25°C ~ 125°C | - | - | Surface Mount | SOT-223-4 |
|
FAN1117AT25IC REG LINEAR 2.5V 1A TO220-3 |
0 |
|
Datasheet | - | TO-220-3 | Tube | Obsolete | Positive | Fixed | 1 | 18V | 2.5V | - | 1.2V @ 1A | 1A | - | - | 72dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Through Hole | TO-220-3 |
|
|
FAN1581M12XIC REG LINEAR 1.2V 5A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Positive | Fixed | 1 | 7V | 1.2V | - | 1.18V @ 5A | 5A | 6 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | - | - | Surface Mount | TO-263-5 |
