LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLR-343DC3FLED ORANGE CLEAR T/H |
966 |
|
Datasheet | SLR-343 | Radial | Bulk | Active | Orange | Standard | Orange | Clear | 25mcd | Round with Domed Top | 3.10mm Dia | 2V | 10mA | 40° | Through Hole | - | 610nm | - | - | - | - | - |
|
|
HLMP-Y651-G0000LED RED CLEAR T-1 T/H |
968 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 300mcd | Round with Domed Top | 3mm, T-1 | 2V | 20mA | 45° | Through Hole | 638nm | 652nm | - | - | - | T-1 | - |
|
SML-A12WTT86LED YELLOW CLEAR 1611 SMD R/A |
55 |
|
Datasheet | EXCELED™ | 2-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Yellow | Standard | Colorless | Clear | 63mcd | Rectangle with Flat Top | 1.20mm x 0.55mm | 2V | 20mA | - | Surface Mount, Right Angle | 590nm | - | - | - | - | 1611(0605) | 1.60mm L x 1.15mm W |
|
|
SLR-56MCT32LED GREEN CLEAR T-1 3/4 T/H |
422 |
|
Datasheet | SLR-56 | Radial | Cut Tape (CT) | Active | Green | Standard | Green | Clear | 40mcd | Round with Domed Top | 5.00mm Dia | 2.1V | 10mA | 40° | Through Hole | 572nm | - | - | - | - | T-1 3/4 | - |
|
SML-010VTT87LED RED CLEAR 3020 SMD |
458 |
|
- |
SML-01 | 1208 (3020 Metric) | Tape & Reel (TR) | Not For New Designs | Red | Standard | Colorless | Clear | 6.3mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2V | 20mA | - | Surface Mount | - | 650nm | - | - | - | 3020(1208) | 3.00mm L x 2.00mm W |
|
|
SML-011UTT86LED RED CLEAR 3020 SMD |
1,000 |
|
Datasheet | SML-01 | 1208 (3020 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 63mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2V | 20mA | - | Surface Mount | 620nm | - | - | - | - | 3020 (1208) | 3.00mm L x 2.00mm W |
|
|
SML-013UTT86LED RED CLEAR 3020 SMD |
798 |
|
Datasheet | SML-01 | 1208 (3020 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 220mcd | Rectangle with Flat Top | 2.30mm x 1.60mm | 2V | 20mA | - | Surface Mount | 624nm | - | - | - | - | 3020(1208) | 3.00mm L x 2.00mm W |
|
AEMD-LG3K-XZ002LED RED SMD 45DEG |
1,000 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SML-A12DTT86LED ORANGE CLEAR 1611 SMD R/A |
310 |
|
Datasheet | EXCELED™ | 2-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Orange | Standard | Colorless | Clear | 100mcd | Rectangle with Flat Top | 1.20mm x 0.55mm | 2V | 20mA | - | Surface Mount, Right Angle | 606nm | - | - | - | - | 1611(0605) | 1.60mm L x 1.15mm W |
|
SLA-570LT3FLED RED T-1 3/4 T/H |
73 |
|
Datasheet | - | Radial | Bulk | Not For New Designs | Red | Standard | - | - | 220mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.75V | 20mA | 25° | Through Hole | - | 660nm | - | - | - | T-1 3/4 | - |
|
|
SMLA13WBDW1LED WHITE DIFFUSED 1611 SMD R/A |
89 |
|
Datasheet | EXCELED™ | 2-SMD, No Lead | Tape & Reel (TR) | Obsolete | White | Standard | White | Diffused | 170mcd | Rectangle with Flat Top | 1.20mm x 0.55mm | 3.1V | 10mA | - | Surface Mount, Right Angle | - | - | - | - | - | 1611(0605) | 1.60mm L x 1.15mm W |
|
SMLZ14WBEPW1LED WHITE DIFFUSED 2PLCC SMD |
78 |
|
Datasheet | SML-Z1 | 2-PLCC | Tape & Reel (TR) | Obsolete | White | Standard | White | Diffused | 2000mcd | Round with Flat Top | 2.40mm Dia | 3.2V | 20mA | - | Surface Mount | - | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
SMLD12BN1WT86LED BLUE DIFFUSED 1608 SMD |
0 |
|
Datasheet | SMLD12x | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Blue | - | White | Diffused | 40mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.9V | 5mA | - | Surface Mount | 470nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
SML-D13FWT86CLED GREEN 1608 SMD |
0 |
|
Datasheet | SML-D13 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Green | Standard | White | - | 22mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.1V | 20mA | - | Surface Mount | 565nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
|
HLMP-EG3G-VX0DDLED RED T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Red | Standard | - | - | 6750mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.1V | 20mA | 30° | Through Hole | 626nm | 634nm | - | - | - | T-1 3/4 (5mm) | - |
|

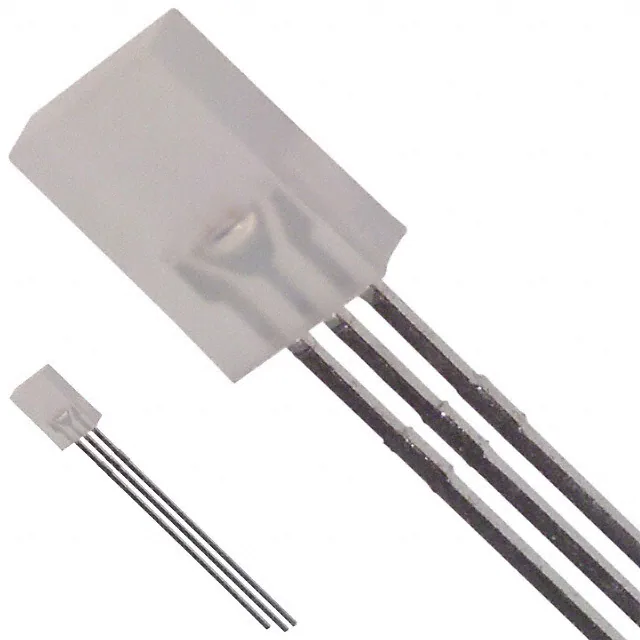

HLMP-0800LED GRN/RED DIFF RECT 2X5MM T/H |
0 |
|
Datasheet | - | Radial - 3 Leads | Bulk | Active | Green, Red | Common Cathode | White | Diffused | 2.6mcd Green, 2.1mcd Red | Rectangle with Flat Top | 5.06mm x 2.11mm | 2.2V Green, 1.9V Red | 20mA Green, 20mA Red | 100° | Through Hole | 570nm Green, 626nm Red | 568nm Green, 635nm Red | - | - | - | Rectangular 2mmx5mm | - |
|
ALMD-CM1F-34002LED GREEN ROUND 4SMD |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Green | - | Green | - | 36000mcd | Round with Domed Top | - | 2.8V | 20mA | 15° | Surface Mount | 525nm | 516nm | - | - | - | 4-SMD | 4.20mm L x 4.20mm W |
|

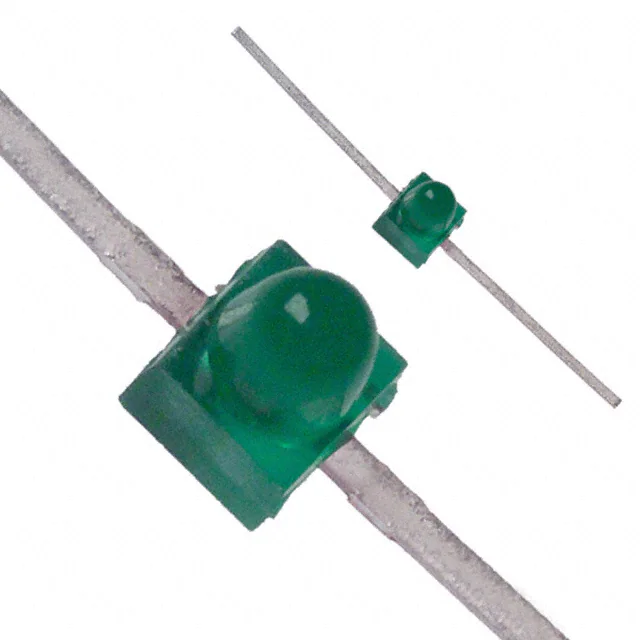

HLMP-6500LED GRN DIFFUSED AXIAL T/H AXIAL |
0 |
|
Datasheet | HLMP-6xxx | Axial, Flat Leads | Bulk | Active | Green | Standard | Green | Diffused | 7mcd | Round with Domed Top | 1.91mm Dia | 2.1V | 10mA | 90° | Through Hole, Axial | 569nm | 565nm | - | - | - | Axial | 2.08mm L x 2.21mm W |
|
HSMF-C118LED RGB DIFFUSED CHIP SMD |
0 |
|
Datasheet | - | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | White | Diffused | 90mcd Red, 120mcd Green, 40mcd Blue | Rectangle with Flat Top | 2.00mm x 2.70mm | 1.9V Red, 3.5V Green, 3.5V Blue | 20mA Red, 20mA Green, 20mA Blue | 135° Red, 130° Green, 125° Blue | Surface Mount | 626nm Red, 525nm Green, 470nm Blue | 637nm Red, 523nm Green, 468nm Blue | - | - | - | Chip LED | 3.20mm L x 2.70mm W |
|
SML-P12MTT86RLED YELLOW/GREEN CLEAR 1006 SMD |
0 |
|
Datasheet | PicoLED™ | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Yellow-Green | Standard | Colorless | Clear | 25mcd | Square with Flat Top | 0.60mm | 2.2V | 20mA | - | Surface Mount | 572nm | - | - | - | - | 1006 (0402) | 1.00mm L x 0.60mm W |
