LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEMD-CM2L-13B02LED GREEN SMD |
4,612 |
|
Datasheet | AEMD-CM2L | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Green | - | - | - | 25500mcd | Round with Domed Top | 3.90mm Dia | 2.8V | 20mA | 23° | Surface Mount | 527nm | 521nm | - | - | - | - | 4.20mm L x 4.20mm W |
|
SMLE12EC6TT86LED GREEN CLEAR 1608 SMD |
4,393 |
|
Datasheet | EXCELED™ | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Green | Standard | Colorless | Clear | 85mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 3V | 5mA | - | Surface Mount | - | 521nm | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
HSMN-A161-N00J1LED BLUE 2PLCC SMD |
171 |
|
Datasheet | - | 2-PLCC | Tape & Reel (TR) | Obsolete | Blue | - | - | - | 50mcd | Round with Flat Top | 2.20mm Dia | 3.4V | 20mA | 120° | Surface Mount | 470nm | 468nm | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
HLMP-CB3B-UV0DDLED BLUE CLEAR T-1 3/4 T/H |
2,000 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Blue | Standard | Colorless | Clear | 4350mcd | Round with Domed Top | 5mm, T-1 3/4 | 3.2V | 20mA | 30° | Through Hole | 470nm | 464nm | - | - | - | T-1 3/4 | - |
|

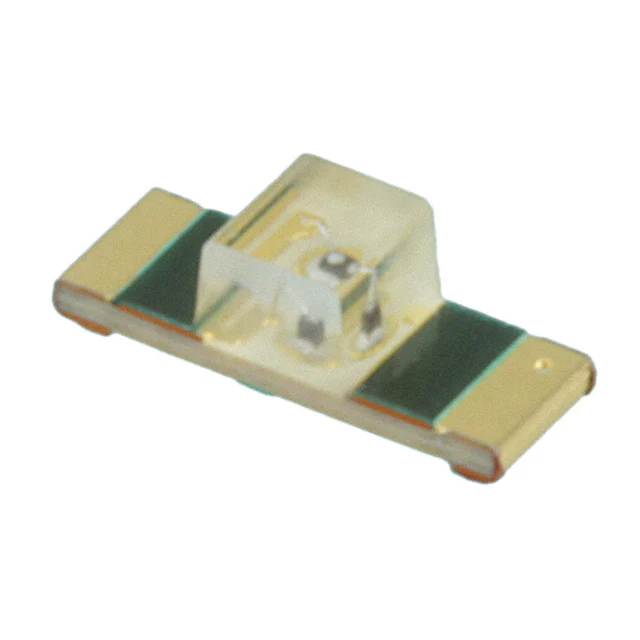

HSMH-C265LED RED CLR CHIP SMD BOTTOM ENT |
175 |
|
Datasheet | - | 1305 (3412 Metric) | Tape & Reel (TR) | Obsolete | Red | Standard | Colorless | Clear | 17mcd | Rectangle with Flat Top | 1.20mm x 1.25mm | 1.8V | 20mA | 170° | Surface Mount, Bottom Entry | 639nm | 660nm | - | - | - | Chip LED | 3.40mm L x 1.25mm W |
|
HSM9-C380LED 940NM TOP MNT |
0 |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SMLK18WBJDW1LED WHITE DIFFUSED 4520 SMD |
274 |
|
Datasheet | SMLK1 | 2-SMD, Flat Leads | Tape & Reel (TR) | Not For New Designs | White | Standard | White | Diffused | 7800mcd | Rectangle with Flat Top | 3.50mm x 1.50mm | 3.9V | 90mA | - | Surface Mount | - | - | - | - | - | 4520(1808) | 4.00mm L x 2.00mm W |
|
|
HLMA-QJ00-S0011LED ORANGE CLEAR SMD |
7,500 |
|
Datasheet | HLMA-Qx00 | 2-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | Orange | - | - | Clear | 500mcd | Round with Domed Top | 1.91mm Dia | 1.9V | 20mA | 15° | Surface Mount | 605nm | 609nm | - | - | - | SMD | 2.09mm L x 2.92mm W |
|

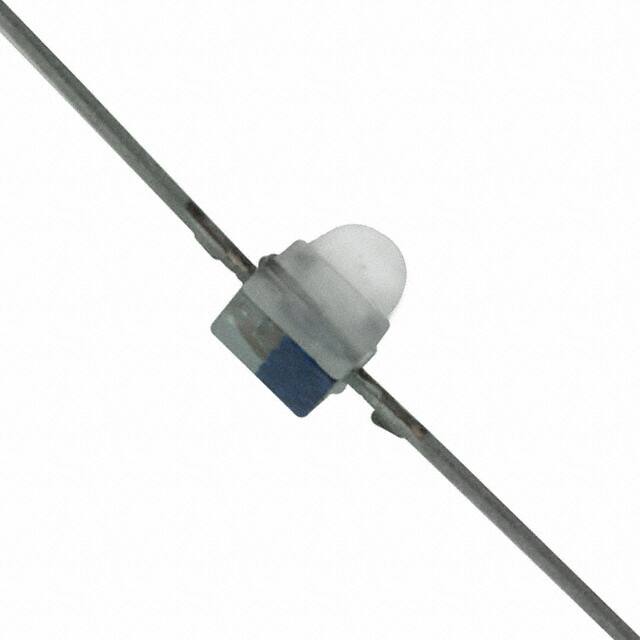

HLMP-QB00-S0000LED BLUE CLEAR AXIAL T/H AXIAL |
4,325 |
|
Datasheet | HLMP-Qxxx | Axial, Flat Leads | Bulk | Obsolete | Blue | Standard | Colorless | Clear | 290mcd | Round with Domed Top | 1.78mm Dia | 3.7V | 20mA | 12° | Through Hole, Axial | 468nm | 470nm | - | - | - | Axial | 2.09mm L x 2.21mm W |
|
SMLMN2WB1CW1LED WHITE 2012 SMD |
306 |
|
Datasheet | - | 0805 (2012 Metric) | Tape & Reel (TR) | Active | White | Standard | - | - | 140mcd | Rectangle with Flat Top | 1.40mm x 1.25mm | 2.9V | 5mA | - | Surface Mount | - | - | - | Automotive | AEC-Q102 | 2012 (0805) | 2.00mm L x 1.25mm W |
|
SMLD12EN1WT86LED GREEN DIFFUSED 1608 SMD |
491 |
|
Datasheet | SMLD12x | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Green | - | White | Diffused | 140mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 3V | 5mA | - | Surface Mount | 527nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
SML-D15UWT86LED RED DIFFUSED 1608 SMD |
477 |
|
Datasheet | SML-D15 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | Diffused | 112mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 20mA | - | Surface Mount | 620nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
|
SML-D15U2WT86LED RED DIFFUSED 1608 SMD |
136 |
|
Datasheet | SML-D15 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | Diffused | 140mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 20mA | - | Surface Mount | 615nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
.jpg)
|
SML-D15YWT86CLED YELLOW 1608 SMD |
146 |
|
Datasheet | SML-D15 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | White | - | 224mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.1V | 20mA | - | Surface Mount | 590nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
|
SML-D13DWT86ALED ORANGE CLEAR 1608 SMD |
187 |
|
Datasheet | SML-D13 (A) | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Orange | - | Colorless | Clear | 120mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 20mA | - | Surface Mount | 605nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|
SLI-343M8G3FLED GREEN DIFFUSED T-1 T/H |
981 |
|
Datasheet | EXCELED™ | Radial | Bulk | Active | Green | Standard | Green | Diffused | 150mcd | Round with Domed Top | 3.10mm Dia | 2.2V | 20mA | 40° | Through Hole | 572nm | - | - | - | - | T-1 | - |
|
SML-D13WWT86CLED YELLOW CLEAR 1608 SMD |
661 |
|
Datasheet | SML-D13 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | Colorless | Clear | 110mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2.1V | 20mA | 160° | Surface Mount | 587nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
|
HLMP-3301-F0002LED RED DIFFUSED T-1 3/4 T/H |
87 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Active | Red | Standard | Red | Diffused | 5.4mcd | Round with Domed Top | 5mm, T-1 3/4 | 1.9V | 10mA | 60° | Through Hole | 626nm | 635nm | - | - | - | T-1 3/4 | - |
|
|
CSL1001BT1CLED BLUE CLEAR 0603 SMD |
369 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Blue | - | Colorless | Clear | 5.6mcd | Rectangle with Flat Top | 1.00mm x 0.80mm | 2.8V | 1mA | - | Surface Mount | 468nm | - | - | - | - | 0603 | 1.60mm L x 0.80mm W |
|
|
SLR-332MC3FLED GREEN CLEAR T-1 T/H |
988 |
|
Datasheet | SLR-332 | Radial | Bulk | Active | Green | Standard | Green | Clear | 16mcd | Round with Domed Top | 3.20mm Dia | 2.1V | 10mA | 85° | Through Hole | 572nm | - | - | - | - | T-1 | - |
