LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HL3P-51C0-00000LAMP,3MM,ALINGAP,BICLR,REDGRN |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HLMP-P505LED GREEN CLEAR AXIAL T/H AXIAL |
21 |
|
Datasheet | HLMP-Pxxx | Axial, Flat Leads | Bulk | Active | Green | Standard | Colorless | Clear | 6.3mcd | Round with Flat Top | 1.78mm Dia | 2.1V | 10mA | 125° | Through Hole, Axial | 569nm | 565nm | - | - | - | Axial | 2.09mm L x 2.21mm W |
|
AEMD-LB3L-UW002LED BLUE SMD 45DEG |
0 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ALMD-CB3F-TV002LED ROUND INGAN 470NM BLUE 4SMD |
0 |
|
Datasheet | - | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Blue | Standard | - | - | 4000mcd | Round with Domed Top | - | 3.2V | 20mA | 30° | Surface Mount | 470nm | 464nm | - | - | - | 4-SMD | 4.20mm L x 4.20mm W |
|
|
AEMD-CB3L-STC02LED BLUE 3SMD |
0 |
|
Datasheet | - | 3-SMD, Gull Wing | Tape & Reel (TR) | Active | Blue | - | - | - | 2500mcd | Round with Domed Top | 3.90mm Dia | 2.8V | 20mA | 33° | Surface Mount | 472nm | 466nm | - | - | - | 3-SMD | 4.20mm L x 4.20mm W |
|
AEMD-CE3L-XZ002LED CYAN ROUND SMD |
0 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HLMP-NW50-U0000LED WHITE 3MM 60DEG |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HSMM-C120LED GREEN CLEAR CHIP SMD R/A |
3 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Green | Standard | Colorless | Clear | 120mcd | Rectangle with Domed Top | 1.20mm x 0.60mm | 3.4V | 20mA | 155° | Surface Mount, Right Angle | 525nm | 523nm | - | - | - | Chip LED | 1.60mm L x 1.00mm W |
|
|
HSMQ-C350LED GREEN CHIP SMD |
0 |
|
Datasheet | - | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Green | Standard | - | - | - | Round with Domed Top | 1.00mm Dia | 3.4V | 20mA | 70° | Surface Mount | 528nm | 521nm | - | - | - | Chip LED | 3.20mm L x 1.60mm W |
|

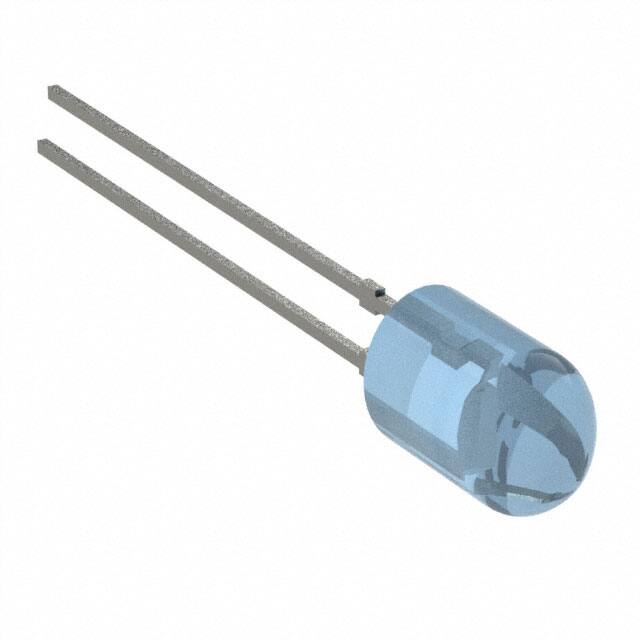

HLMP-AB75-WXBDDLED BLUE DIFFUSED 5MM OVAL T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Blue | Standard | Blue | Diffused | 1685mcd | Oval with Domed Top | 5.30mm x 3.90mm | 3.2V | 20mA | 70°, 35° | Through Hole | 470nm | 464nm | - | - | - | 5mm Oval | - |
|
|
HLMP-AM74-56CDDLED GREEN DIFFUSED 5MM OVAL T/H |
0 |
|
Datasheet | - | Radial | Cut Tape (CT) | Active | Green | - | Green | Diffused | 7380mcd | Oval with Domed Top | 5.40mm x 3.90mm | 3.2V | 20mA | 30° x 70° | Through Hole | 530nm | 521nm | - | - | - | 5mm Oval | 5.40mm L x 3.90mm W |
|
HSMF-C146LED BLUE/RED CLEAR SMD R/A |
20 |
|
Datasheet | - | 4-SMD | Tape & Reel (TR) | Active | Blue, Red | Common Anode | Colorless | Clear | 75mcd Blue, 79mcd Red | Rectangle with Domed Top | 2.00mm x 1.00mm | 3.4V Blue, 2.3V Red | 20mA Blue, 20mA Red | 120° | Surface Mount, Right Angle | 464nm Blue, 632nm Red | 459nm Blue, 644nm Red | - | - | - | SMD | 3.00mm L x 2.00mm W |
|
|
HSMF-C128LED RGB TOP MNT CHIP SMD |
0 |
|
Datasheet | - | 0606 (1616 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | - | - | - | - | Rectangle with Flat Top | - | - | - | 150° | Surface Mount | 626nm Red, 527nm Green, 473nm Blue | - | - | - | - | Chip LED | 1.60mm L x 1.60mm W |
|
HSMF-C11BLED RGB 0404 SMD |
0 |
|
Datasheet | - | 0404 (1010 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | - | - | 165mcd Red, 281.25mcd Green, 65.25mcd Blue | Round with Flat Top | 1.08mm | 2V Red, 2.85V Green, 2.85V Blue | 5mA | 140° | Surface Mount | 626nm Red, 527nm Green, 473nm Blue | 635nm Red, 520nm Green, 469nm Blue | - | - | - | 0404 | 1.08mm L x 1.08mm W |
|
|
HSMF-C127LED RGB CHIP SMD |
0 |
|
Datasheet | - | 1204 (3210 Metric) | Tape & Reel (TR) | Active | Red, Green, Blue (RGB) | Common Anode | - | - | - | Rectangle with Domed Top | 2.20mm Dia | 2V Red, 3.4V Green, 3.4V Blue | 20mA Red, 20mA Green, 20mA Blue | 150° | Surface Mount | 626nm Red, 527nm Green, 473nm Blue | 627nm Red, 516nm Green, 464nm Blue | - | - | - | Chip LED | 3.20mm L x 1.00mm W |
|
HSMF-C171LED BLUE/ORNG DIFFUSED 0605 SMD |
0 |
|
Datasheet | - | 0605 (1613 Metric) | Tape & Reel (TR) | Active | Blue, Orange | - | - | Diffused | 28.5mcd Blue, 45mcd Orange | Rectangle with Flat Top | - | 3.4V Blue, 2V Orange | 10mA Blue, 10mA Orange | 150° Blue, 140° Orange | Surface Mount | 467nm Blue, 605nm Orange | - | - | - | - | 0605 | 1.60mm L x 1.25mm W |
|
|
HLMP-6505-NP011LED RED CLEAR SMD |
0 |
|
Datasheet | HLMP-6xxx | 2-SMD, Flat Leads | Tape & Reel (TR) | Active | Red | - | - | Clear | - | Round with Flat Top | 1.91mm Dia | 1.6V | 10mA | 90° | Surface Mount | 640nm | 655nm | - | - | - | SMD | 2.09mm L x 2.21mm W |
|
SLR-343DCT32LED ORANGE CLEAR T-1 T/H |
0 |
|
Datasheet | SLR-343 | Radial | Cut Tape (CT) | Active | Orange | Standard | Orange | Clear | 25mcd | Round with Domed Top | 3.10mm Dia | 2V | 10mA | 40° | Through Hole | 605nm | - | - | - | - | T-1 | - |
|
|
HSMA-C200CHIP,TOP MT,ALINGAP,AMBER |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSMC-C200CHIP,TOP MT,ALINGAP,RED |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
