LED Indication - Discrete
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Color | Configuration | Lens Color | Lens Transparency | Millicandela Rating | Lens Style | Lens Size | Voltage - Forward (Vf) (Typ) | Current - Test | Viewing Angle | Mounting Type | Wavelength - Dominant | Wavelength - Peak | Features | Grade | Qualification | Supplier Device Package | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SML-P12VTT86RLED RED CLEAR 1006 SMD |
0 |
|
Datasheet | PicoLED™ | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 60mcd | Square with Flat Top | 0.60mm | 2V | 20mA | - | Surface Mount | 630nm | - | - | - | - | 1006 (0402) | 1.00mm L x 0.60mm W |
.jpg)
|
SML-D15U2WT86CLED RED 1608 SMD |
66 |
|
Datasheet | SML-D15 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Red | Standard | White | - | 140mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 20mA | - | Surface Mount | 615nm | - | - | Automotive | AEC-Q102 | 1608 (0603) | 1.60mm L x 0.80mm W |
|
HSMS-C680LED RED CLEAR CHIP SMD R/A |
0 |
|
Datasheet | - | 2-SMD, No Lead | Tape & Reel (TR) | Active | Red | Standard | Colorless | Clear | 5.1mcd | Rectangle with Domed Top | 2.00mm x 1.00mm | 2V | 20mA | 125° | Surface Mount, Right Angle | 621nm | 636nm | - | - | - | Chip LED | 3.00mm L x 1.00mm W |
|
SML-P12YTT86RLED YELLOW CLEAR 1006 SMD |
0 |
|
Datasheet | PicoLED™ | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Yellow | Standard | Colorless | Clear | 100mcd | Square with Flat Top | 0.60mm | 2.1V | 20mA | - | Surface Mount | 590nm | - | - | - | - | 1006 (0402) | 1.00mm L x 0.60mm W |
|
SLR-342MC3FLED GREEN CLEAR T-1 T/H |
0 |
|
Datasheet | SLR-342 | Radial | Bulk | Not For New Designs | Green | Standard | Green | Clear | 25mcd | Round with Domed Top | 3.10mm Dia | 2.1V | 10mA | 40° | Through Hole | 572nm | - | - | - | - | T-1 | - |
|
|
SLR-342MG3FLED GREEN DIFFUSED T-1 T/H |
0 |
|
Datasheet | SLR-342 | Radial | Bulk | Not For New Designs | Green | Standard | Green | Diffused | 16mcd | Round with Domed Top | 3.10mm Dia | 2.1V | 10mA | 40° | Through Hole | 572nm | - | - | - | - | T-1 | - |
|
SLR-343MCT32LED GREEN CLEAR T-1 T/H |
9 |
|
Datasheet | SLR-343 | Radial | Cut Tape (CT) | Active | Green | Standard | Green | Clear | 25mcd | Round with Domed Top | 3.10mm Dia | 2.1V | 10mA | 40° | Through Hole | - | 563nm | - | - | - | T-1 | - |
|
HLMP-Y601-J0000LED RED CLEAR T-1 T/H |
5 |
|
Datasheet | - | Radial | Bulk | Active | Red | Standard | Colorless | Clear | 680mcd | Round with Domed Top | 3mm, T-1 | 2V | 20mA | 45° | Through Hole | 627nm | 633nm | - | - | - | T-1 | - |
|
SLR-56VC3FLED RED CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | SLR-56 | Radial | Bulk | Active | Red | Standard | Red | Clear | 25mcd | Round with Domed Top | 5mm, T-1 3/4 | 2V | 10mA | 40° | Through Hole | 630nm | - | - | - | - | T-1 3/4 | - |
|
SML-512DWT86LED ORANGE DIFFUSED 1608 SMD |
0 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Not For New Designs | Orange | Standard | White | Diffused | 100mcd | Rectangle with Flat Top | 1.20mm x 0.80mm | 2V | 20mA | - | Surface Mount | 606nm | - | - | - | - | 1608 (0603) | 1.60mm L x 0.80mm W |
|

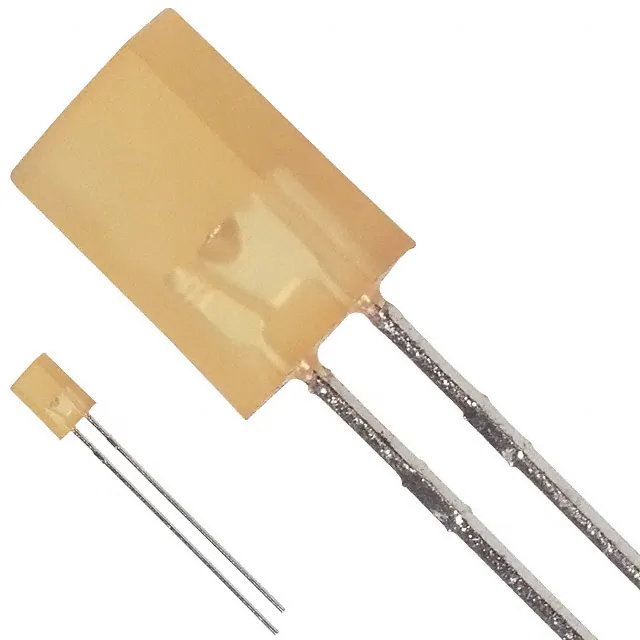

HLMP-S301LED YELLOW DIFF RECT 2MMX5MM T/H |
23 |
|
Datasheet | - | Radial | Bulk | Active | Yellow | Standard | Yellow | Diffused | - | Rectangle with Flat Top | 5.06mm x 2.11mm | 2.1V | 20mA | 110° | Through Hole | 585nm | 583nm | - | - | - | Rectangular 2mmx5mm | - |
|
SML-020MLTT86LED GREEN/RED CLEAR 1210 SMD |
0 |
|
Datasheet | SML-020 | 1210 (3225 Metric) | Tape & Reel (TR) | Not For New Designs | Green, Red | Independent | Colorless | Clear | 20mcd Green, 16mcd Red | Rectangle with Flat Top | 2.30mm x 2.10mm | 2.2V Green, 1.75V Red | 20mA Green, 20mA Red | - | Surface Mount | - | 570nm Green, 660nm Red | - | - | - | 1210 (3025 Metric) | 3.00mm L x 2.50mm W |
|
ASMM-CF03-AQ3B2LED YEL/GREEN ALINGAP SMD PLCC2 |
67 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASMM-CR03-BU802LED RED 2PLCC SMD |
7 |
|
Datasheet | - | 2-PLCC | Tape & Reel (TR) | Active | Red | - | - | - | 650mcd | Round with Flat Top | 2.40mm Dia | 2.1V | 20mA | 120° | Surface Mount | 625nm | 630nm | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
|
SLA-570MT3FLED GREEN CLEAR T-1 3/4 T/H |
0 |
|
Datasheet | - | Radial | Bulk | Active | Green | Standard | Colorless | Clear | 470mcd | Round with Domed Top | 5mm, T-1 3/4 | 2.3V | 20mA | 25° | Through Hole | - | 563nm | - | - | - | T-1 3/4 | - |
|
|
HLMP-K150-C0002LED RED DIFFUSED T-1 T/H |
0 |
|
Datasheet | - | Radial | Tape & Reel (TR) | Active | Red | Standard | Red | Diffused | 2mcd | Round with Domed Top | 3mm, T-1 | 1.7V | 1mA | 60° | Through Hole | 640nm | 660nm | - | - | - | T-1 | - |
|
SML-Z14YTT86ALED YELLOW CLEAR 2PLCC SMD |
14 |
|
Datasheet | SML-Z1 | 2-PLCC | Tape & Reel (TR) | Active | Yellow | Standard | Colorless | Clear | 280mcd | Round with Flat Top | 2.40mm Dia | 2V | 20mA | - | Surface Mount | 589nm | - | - | - | - | 2-PLCC | 3.20mm L x 2.80mm W |
|
SML-Z14PTT86CLED GREEN CLEAR 3528 SMD |
3 |
|
Datasheet | SML-Z14 | 1411 (3528 Metric) | Tape & Reel (TR) | Active | Green | Standard | Colorless | Clear | 22.4mcd | Round with Flat Top | 2.40mm Dia | 2V | 20mA | - | Surface Mount | 560nm | - | - | Automotive | AEC-Q101 | 3528 (1411) | 3.50mm L x 2.80mm W |
|
|
SLI-343UR3FLED RED DIFFUSED T-1 T/H |
0 |
|
Datasheet | SLI-343 | Radial | Bulk | Active | Red | Standard | Red | Diffused | 350mcd | Round with Domed Top | 3.10mm Dia | 1.9V | 20mA | 40° | Through Hole | 620nm | - | - | - | - | T-1 | - |
|
|
CSL0902BT1LED BLUE CLEAR 0603 SMD |
0 |
|
Datasheet | - | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Blue | - | Colorless | Clear | 360mcd | Rectangle with Domed Top | 1.14mm x 0.80mm | 3.3V | 20mA | - | Surface Mount | 470nm | - | - | - | - | 0603 | 1.60mm L x 0.80mm W |
