Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0SPF03.5TFUSE CERAMIC 3.5A 1000VDC 5AG |
22 |
|
Datasheet | SPF | Box | Active | Requires Holder | Cartridge, Ceramic | 3.5 A | - | 1000 V | - | 20kA | 11.297 | CE, CSA, UL | - | - | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | |
|
0273.031VFUSE BRD MT 31MA 125VAC/VDC RAD |
26 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 31 mA | 125 V | 125 V | Fast Blow | 10kA | 8.1E-6 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
032707.5UXSFUSE AUTO 7.5A 32VDC BLADE MICRO |
118 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | - | 1kA | 47.0 | - | -40°C ~ 125°C | Brown | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
06173.15MXEPFUSE GLASS 3.15A 250VAC 5X20MM |
1,000 |
|
Datasheet | 617 | Bulk | Active | Through Hole | Cartridge, Glass | 3.15 A | 250 V | - | Fast Blow | 35A | 17.71 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.846" L (5.50mm x 21.50mm) | |
|
061702.5MXEPFUSE GLASS 2.5A 250VAC 5X20MM |
719 |
|
Datasheet | 617 | Bulk | Active | Through Hole | Cartridge, Glass | 2.5 A | 250 V | - | Fast Blow | 35A | 9.46 | CCC, CE, CSA, UR. VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.846" L (5.50mm x 21.50mm) | |
|
0216002.MRET1SPPFUSE CERAMIC 2A 250VAC 5X20MM |
985 |
|
Datasheet | 216SP | Tape & Reel (TR) | Active | Through Hole | Cartridge, Ceramic | 2 A | 250 V | - | Fast Blow | 1.5kA | 1.87 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0287030.UFUSE AUTO 30A 32VDC BLADE ATO |
430 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | 1kA | 1510.0 | - | -40°C ~ 105°C | Blue, Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
0618005.MXEPFUSE GLASS 5A 250VAC 5X20MM |
432 |
|
Datasheet | 618 | Bulk | Active | Through Hole | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 111.0 | CCC, CE, CSA, UR, VDE | -55°C ~ 125°C | - | 0.217" Dia x 0.846" L (5.50mm x 21.50mm) | |
|
0327015.UXSFUSE AUTO 15A 32VDC BLADE MICRO |
362 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | - | 1kA | 189.0 | - | -40°C ~ 125°C | Blue | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0327025.UXSFUSE AUTO 25A 32VDC BLADE MICRO |
305 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | 1kA | 585.0 | - | -40°C ~ 125°C | White | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0327005.UXSFUSE AUTO 5A 32VDC BLADE MICRO |
135 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | - | 1kA | 17.0 | - | -40°C ~ 125°C | Tan | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0287004.UFUSE AUTO 4A 32VDC BLADE ATO/ATC |
500 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | - | 1kA | 14.0 | - | -40°C ~ 105°C | Pink | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0327020.UXSFUSE AUTO 20A 32VDC BLADE MICRO |
610 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | - | 1kA | 397.0 | - | -40°C ~ 125°C | Yellow | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0235.800HXPFUSE GLASS 800MA 250VAC 5X20MM |
346 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 800 mA | 250 V | - | Fast Blow | 35A | 0.253 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0311030.HFUSE GLASS 30A 32VAC 3AB 3AG |
163 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 30 A | 32 V | - | Fast Blow | - | - | CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0235.600HXPFUSE GLASS 600MA 250VAC 5X20MM |
105 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 600 mA | 250 V | - | Fast Blow | 35A | 0.112 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0287002.HFUSE AUTO 2A 32VDC BLADE ATO/ATC |
384 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 1.4 | UL | -40°C ~ 105°C | Gray | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
023501.6HXPFUSE GLASS 1.6A 250VAC 5X20MM |
343 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.6 A | 250 V | - | Fast Blow | 100A | 2.025 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

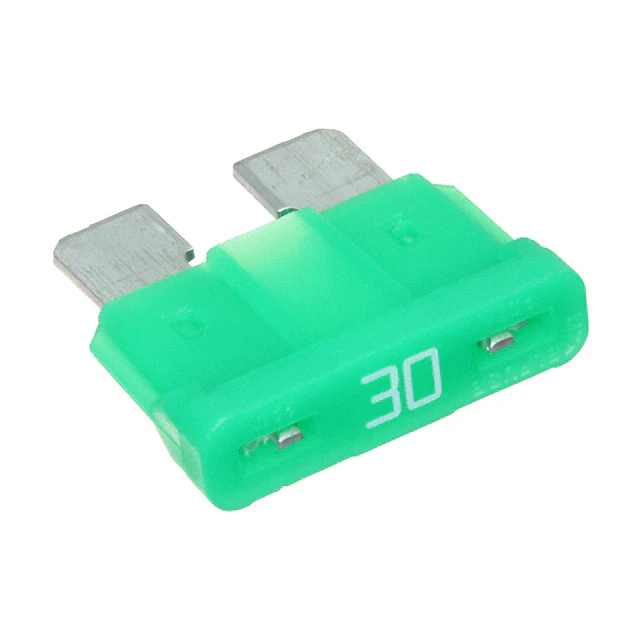

0287030.HFUSE AUTO 30A 32VDC BLADE ATO |
202 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | - | - | 1510.0 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
028707.5HFUSE AUTO 7.5A 32VDC BLADE ATO |
144 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | - | - | 60.0 | CSA, UL | -40°C ~ 105°C | Brown | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) |
