Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0311010.HFUSE GLASS 10A 32VAC 3AB 3AG |
167 |
|
Datasheet | AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 32 V | - | Fast Blow | - | - | CSA, UL | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
37005000000FUSE BRD MNT 500MA 250VAC RADIAL |
136 |
|
Datasheet | TR5® 370 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 250 V | - | Fast Blow | 35A | 0.042 | CCC, cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0287004.LFUSE AUTO 4A 32VDC BLADE ATO/ATC |
70 |
|
Datasheet | ATOF® | Box | Active | Requires Holder | Automotive | 4 A | - | 32 V | - | 1kA | 14.0 | UL | -40°C ~ 105°C | Pink | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287025.LFUSE AUTO 25A 32VDC BLADE ATO |
67 |
|
Datasheet | ATOF® | Box | Active | Requires Holder | Automotive | 25 A | - | 32 V | - | - | 1080.0 | CSA, UL | -40°C ~ 105°C | Clear | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

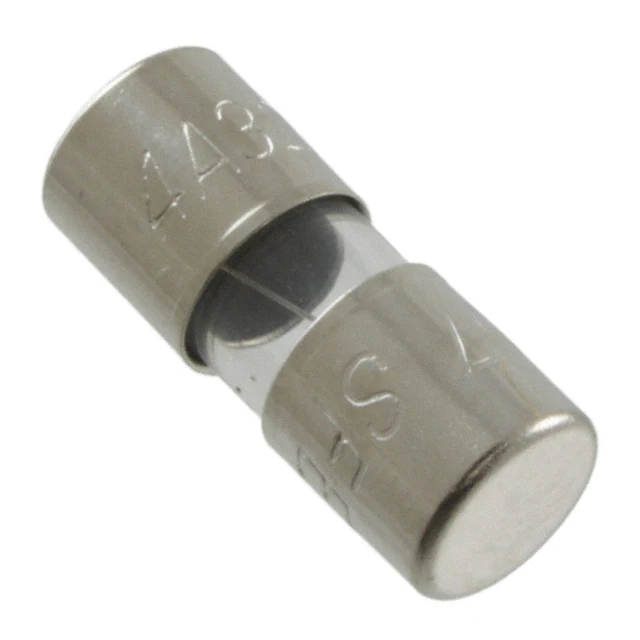

0SFE004.VFUSE GLASS 4A 32VAC/VDC 1AG |
163 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 32 V | 32 V | Fast Blow | - | - | - | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|
0891010.UFUSE AUTO 10A 58VDC BLADE MINI |
544 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 58 V | Fast Blow | 1kA | 102.0 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
089107.5UFUSE AUTO 7.5A 58VDC BLADE MINI |
309 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 58 V | Fast Blow | 1kA | 53.0 | - | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
02291.25MXPFUSE GLASS 1.25A 250VAC 125VDC |
495 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 9.8 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
37011600430FUSE BOARD MNT 1.6A 250VAC RAD |
371 |
|
Datasheet | TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.6 A | 250 V | - | Fast Blow | 50A | 0.53 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0891005.UFUSE AUTOMOTIVE 5A 58VDC BLADE |
827 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 58 V | Fast Blow | 10kA | 22.0 | - | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0891030.UFUSE AUTO 30A 58VDC BLADE MINI |
465 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | Fast Blow | 1kA | 1110.0 | - | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0225.750MXPFUSE GLASS 750MA 250VAC 125VDC |
479 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 1.05 | CE, CSA, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0891015.UFUSE AUTO 15A 58VDC BLADE MINI |
261 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 58 V | Fast Blow | 10kA | 198.0 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
|
02291.25HXPFUSE GLASS 1.25A 250VAC 125VDC |
93 |
|
Datasheet | 229 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 9.8 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0891020.UFUSE AUTO 20A 58VDC BLADE MINI |
472 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | Fast Blow | 1kA | 420.0 | - | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0AGA02.5VFUSE GLASS 2.5A 32VAC/VDC 1AG |
67 |
|
Datasheet | AGA | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 32 V | 32 V | - | - | - | - | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|
02163.15MXESPPFUSE CERAMIC 3.15A 250VAC 5X20MM |
728 |
|
Datasheet | 216SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 250 V | - | Fast Blow | 1.5kA | 6.7 | CE, CSA, CQC, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0SFE030.VFUSE GLASS 30A 32VAC 32VDC |
331 |
|
Datasheet | SFE | Bulk | Active | Requires Holder | Cartridge, Glass | 30 A | 32 V | 32 V | Fast Blow | - | - | - | - | - | 0.250" Dia x 1.437" L (6.35mm x 36.50mm) | |
|
|
0225007.MXUPFUSE GLASS 7A 125VAC 2AG |
104 |
|
Datasheet | 225 | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 125 V | - | Fast Blow | 500A | 40.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0208005.MXEPFUSE GLASS 5A 350VAC 2AG |
500 |
|
Datasheet | 208 | Bulk | Active | Through Hole | Cartridge, Glass | 5 A | 350 V | - | Fast Blow | 100A | 17.0 | CE, cURus, PSE | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) |
