Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0208007.MXPFUSE GLASS 7A 350VAC 2AG |
1,000 |
|
Datasheet | 208 | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 350 V | - | Fast Blow | 100A | 40.0 | CE, cURus, PSE | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0297030.HFUSE AUTO 30A 32VDC BLADE MINI |
513 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1130.0 | UR | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297004.LFUSE AUTOMOTIVE 4A 32VDC BLADE |
440 |
|
Datasheet | MINI® 297 | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 17.0 | UR | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
023502.5MXPFUSE GLASS 2.5A 250VAC 5X20MM |
369 |
|
Datasheet | 235 | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Fast Blow | 100A | 5.445 | CE, CSA, KC, PSE, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0891002.UFUSE AUTOMOTIVE 2A 58VDC BLADE |
341 |
|
Datasheet | LP MINI® 891 | Bulk | Active | Requires Holder | Automotive | 2 A | - | 58 V | Fast Blow | 10kA | 3.0 | - | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.331" H (10.90mm x 3.80mm x 8.40mm) | |
|
0297005.HFUSE AUTOMOTIVE 5A 32VDC BLADE |
300 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 25.0 | UR | -40°C ~ 125°C | Orange | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297030.LFUSE AUTO 30A 32VDC BLADE MINI |
153 |
|
Datasheet | MINI® 297 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1130.0 | UR | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297020.HFUSE AUTO 20A 32VDC BLADE MINI |
101 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 380.0 | UR | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0312030.HXPFUSE GLASS 30A 32VAC 3AB 3AG |
100 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 30 A | 32 V | - | Fast Blow | 300A | 3717.0 | CSA, cULus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0287004.HFUSE AUTO 4A 32VDC BLADE ATO/ATC |
103 |
|
Datasheet | ATOF® | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 14.0 | UL | -40°C ~ 105°C | Pink | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

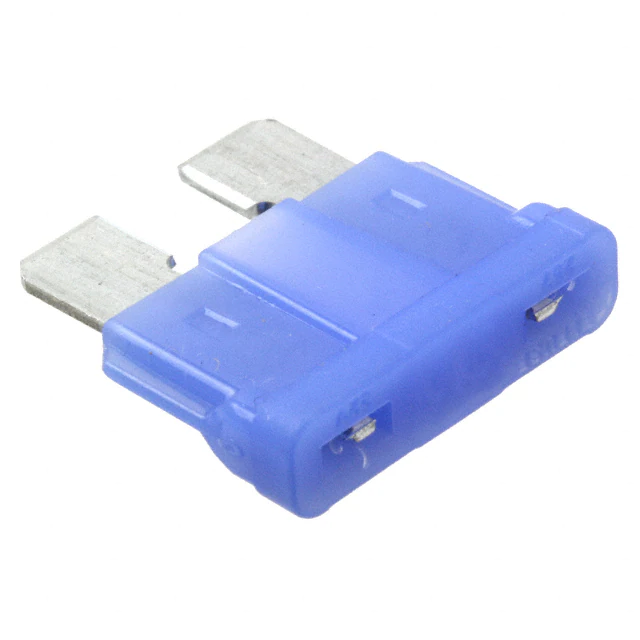

0287015.LFUSE AUTO 15A 32VDC BLADE ATO |
356 |
|
Datasheet | ATOF® | Box | Active | Requires Holder | Automotive | 15 A | - | 32 V | - | - | 340.0 | CSA, UL | -40°C ~ 105°C | Blue | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

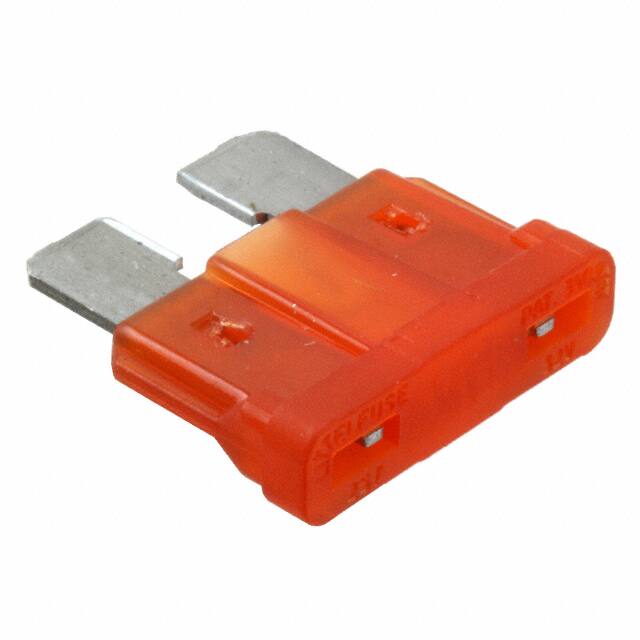

0287040.LFUSE AUTO 40A 32VDC BLADE ATO |
155 |
|
Datasheet | ATOF® | Box | Active | Requires Holder | Automotive | 40 A | - | 32 V | - | - | 3310.0 | CSA, UL | -40°C ~ 105°C | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0287035.LFUSE AUTO 35A 32VDC BLADE ATO |
117 |
|
Datasheet | ATOF® | Box | Active | Requires Holder | Automotive | 35 A | - | 32 V | - | - | 2280.0 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
0301003.HFUSE GLASS 3A 32VAC 1AG |
57 |
|
Datasheet | 301 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 32 V | - | Medium Blow | - | - | - | - | - | 0.250" Dia x 0.625" L (6.35mm x 15.88mm) | |
|
0327010.LXSFUSE AUTO 10A 32VDC BLADE MICRO |
53 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 32 V | - | 1kA | 89.0 | - | -40°C ~ 125°C | Red | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0327020.LXSFUSE AUTO 20A 32VDC BLADE MICRO |
28 |
|
Datasheet | MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | - | 1kA | 397.0 | - | -40°C ~ 125°C | Yellow | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0297003.LFUSE AUTOMOTIVE 3A 32VDC BLADE |
561 |
|
Datasheet | MINI® 297 | Box | Active | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 9.4 | UR | -40°C ~ 125°C | Violet | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
020801.5MXEPFUSE GLASS 1.5A 350VAC 2AG |
55 |
|
Datasheet | 208 | Bulk | Active | Through Hole | Cartridge, Glass | 1.5 A | 350 V | - | Fast Blow | 100A | 0.8 | CE, cURus, PSE | -55°C ~ 125°C | - | 0.185" Dia x 0.570" L (4.70mm x 14.48mm) | |
|
0297025.LFUSE AUTO 25A 32VDC BLADE MINI |
38 |
|
Datasheet | MINI® 297 | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | Fast Blow | 1kA | 625.0 | UR | -40°C ~ 125°C | Clear | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0312025.MXPFUSE GLASS 25A 32VAC 3AB 3AG |
643 |
|
Datasheet | 312 | Bulk | Active | Requires Holder | Cartridge, Glass | 25 A | 32 V | - | Fast Blow | 300A | 2041.0 | CSA, cULus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
