Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2274JFCAP FILM 0.27UF 5% 250VDC RADIAL |
1,512 |
|
Datasheet | Radial | 0.27 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.472" L x 0.236" W (12.00mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R463F247040N0MCAP FILM 0.047UF 20% 630VDC RAD |
1,445 |
|
Datasheet | Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R413I13300000MCAP FILM 3300PF 20% 1KVDC RADIAL |
1,302 |
|
Datasheet | Radial | 3300 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R75IF315050H3JCAP FILM 0.15UF 5% 250VDC RADIAL |
1,188 |
|
Datasheet | Radial | 0.15 µF | ±5% | 140V | 250V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I22204001MCAP FILM 0.022UF 20% 630VDC RAD |
1,172 |
|
Datasheet | Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
PHE426MA5150JR05CAP FILM 0.015UF 5% 630VDC RAD |
7,895 |
|
Datasheet | Radial | 0.015 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R463I310050H1MCAP FILM 0.1UF 20% 630VDC RADIAL |
5,535 |
|
Datasheet | Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
F861KJ223M310ACAP FILM 0.022UF 20% 630VDC RAD |
4,004 |
|
Datasheet | Radial | 0.022 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | X2 | - |
|
R76QI210050H4JCAP FILM 10000PF 5% 1KVDC RAD |
3,640 |
|
Datasheet | Radial | 10000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 191 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R413F12205000MCAP FILM 2200PF 20% 1KVDC RADIAL |
3,439 |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
.jpg)
|
ECH-U1H183GX5CAP FILM 0.018UF 2% 50VDC 1210 |
3,431 |
|
Datasheet | 1210 (3225 Metric) | 0.018 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
|
R75UI127050H4JCAP FILM 2700PF 5% 2KVDC RADIAL |
3,270 |
|
Datasheet | Radial | 2700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 294.7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECH-U1C103JB5CAP FILM 10000PF 5% 16VDC 0805 |
3,000 |
|
Datasheet | 0805 (2012 Metric) | 10000 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
R463I24705001KCAP FILM 0.047UF 10% 630VDC RAD |
1,961 |
|
Datasheet | Radial | 0.047 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413F11005000KCAP FILM 1000PF 10% 1KVDC RADIAL |
1,750 |
|
Datasheet | Radial | 1000 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
 Series Style Straight.jpg)
|
ECW-FA2J124JCAP FILM 0.12UF 5% 630VDC RADIAL |
1,484 |
|
Datasheet | Radial | 0.12 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.217" W (18.20mm x 5.50mm) | 0.425" (10.80mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
R413I14700000MCAP FILM 4700PF 20% 1KVDC RADIAL |
1,417 |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

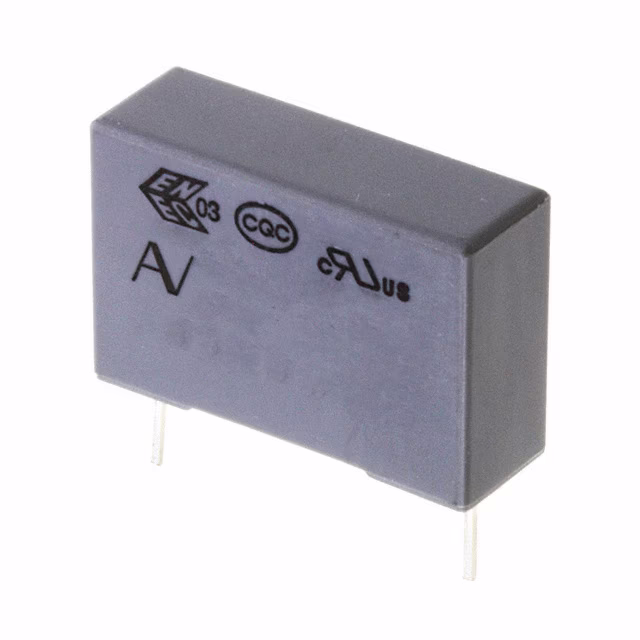

R46KI315000M2KCAP FILM 0.15UF 10% 560VDC RAD |
1,376 |
|
Datasheet | Radial | 0.15 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF223KCAP FILM 0.022UF 10% 275VAC RADI |
1,363 |
|
Datasheet | Radial | 0.022 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|
R413F168050T0KCAP FILM 6800PF 10% 1.5KVDC RAD |
1,147 |
|
Datasheet | Radial | 6800 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
