Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R413F12204000MCAP FILM 2200PF 20% 1KVDC RADIAL |
1,658 |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R60QF12204001KCAP FILM 2200PF 10% 1KVDC RADIAL |
1,419 |
|
Datasheet | Radial | 2200 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R60QF12205001KCAP FILM 2200PF 10% 1KVDC RADIAL |
1,240 |
|
Datasheet | Radial | 2200 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R413I13304000MCAP FILM 3300PF 20% 1KVDC RADIAL |
1,091 |
|
Datasheet | Radial | 3300 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-FD2W154JQCAP FILM 0.15UF 5% 450VDC RADIAL |
1,036 |
|
Datasheet | Radial | 0.15 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.181" W (12.60mm x 4.60mm) | 0.555" (14.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECQ-UAAF683MCAP FILM 0.068UF 20% 275VAC RADI |
5,401 |
|
Datasheet | Radial | 0.068 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.197" W (17.50mm x 5.00mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-U2102KC9CAP FILM 1000PF 10% 250VDC 1913 |
4,033 |
|
Datasheet | 1913 (4833 Metric) | 1000 pF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
R76UI112050H3JCAP FILM 1200PF 5% 2KVDC RAD |
3,388 |
|
Datasheet | Radial | 1200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 1.592 Ohms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R41BI222050T0KCAP FILM 0.022UF 10% 1.5KVDC RAD |
1,999 |
|
Datasheet | Radial | 0.022 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R82DC3470Z360KCAP FILM 0.47UF 10% 63VDC RADIAL |
1,941 |
|
Datasheet | Radial | 0.47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.299" (7.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2W104KCAP FILM 0.1UF 10% 450VDC RADIAL |
1,545 |
|
Datasheet | Radial | 0.1 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-FD2W124J4CAP FILM 0.12UF 5% 450VDC RADIAL |
1,362 |
|
Datasheet | Radial | 0.12 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.181" W (12.60mm x 4.60mm) | 0.551" (14.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

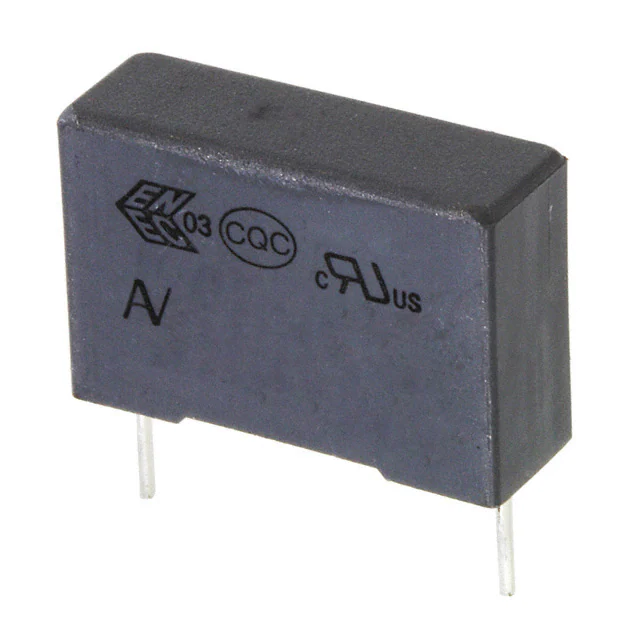

R46KI315000M2MCAP FILM 0.15UF 20% 560VDC RAD |
1,233 |
|
Datasheet | Radial | 0.15 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R463I315040H2MCAP FILM 0.15UF 20% 630VDC RAD |
1,213 |
|
Datasheet | Radial | 0.15 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECW-U1273JC9CAP FILM 0.027UF 5% 100VDC 1913 |
1,093 |
|
Datasheet | 1913 (4833 Metric) | 0.027 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
R71VF26804030KCAP FILM 0.068UF 10% 520VDC RAD |
1,032 |
|
Datasheet | Radial | 0.068 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
R46KF210050N0KCAP FILM 10000PF 10% 560VDC RAD |
6,207 |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
MMK5104J63J01L15.0ABULKCAP FILM 0.1UF 5% 63VDC RADIAL |
4,749 |
|
Datasheet | Radial | 0.1 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
LDEEA1330JA0N00CAP FILM 3300PF 5% 100VDC 1206 |
4,561 |
|
Datasheet | 1206 (3216 Metric) | 3300 pF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.047" (1.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R76QF147050H3JCAP FILM 4700PF 5% 1KVDC RADIAL |
3,492 |
|
Datasheet | Radial | 4700 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 135 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
