Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
ECH-U1C123JX5CAP FILM 0.012UF 5% 16VDC 1206 |
17,600 |
|
Datasheet | 1206 (3216 Metric) | 0.012 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R75MI310050H3JCAP FILM 0.1UF 5% 400VDC RADIAL |
7,479 |
|
Datasheet | Radial | 0.1 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE426KJ5220JR05CAP FILM 0.022UF 5% 400VDC RAD |
7,092 |
|
Datasheet | Radial | 0.022 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75RF13305040JCAP FILM 3300PF 5% 1.25KVDC RAD |
5,443 |
|
Datasheet | Radial | 3300 pF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 241.1 mOhms | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76QF110050H0JCAP FILM 1000PF 5% 1KVDC RAD |
4,320 |
|
Datasheet | Radial | 1000 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.91 Ohms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76QF112050H0JCAP FILM 1200PF 5% 1KVDC RAD |
2,056 |
|
Datasheet | Radial | 1200 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 1.592 Ohms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E2474KFWCAP FILM 0.47UF 10% 250VDC RAD |
1,802 |
|
Datasheet | Radial | 0.47 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.209" W (18.50mm x 5.30mm) | 0.689" (17.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R66ED3100Z37AKCAP FILM 0.1UF 10% 100VDC RADIAL |
1,694 |
|
Datasheet | Radial | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.319" (8.10mm) | PC Pins | 0.295" (7.50mm) | Automotive | AEC-Q200 | - |
|
|
R75QI222050H0JCAP FILM 0.022UF 5% 1KVDC RADIAL |
1,630 |
|
Datasheet | Radial | 0.022 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | 50.6 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76QF082050H0JCAP FILM 820PF 5% 1KVDC RADIAL |
1,552 |
|
Datasheet | Radial | 820 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.329 Ohms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463I26805001KCAP FILM 0.068UF 10% 630VDC RAD |
1,150 |
|
Datasheet | Radial | 0.068 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R75PF156050H0JCAP FILM 5600PF 5% 630VDC RADIAL |
5,352 |
|
Datasheet | Radial | 5600 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 142.1 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76MF22705050JFILM, RADIAL, PULSE, DOUBLE META |
5,017 |
|
Datasheet | Radial | 0.027 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 24 mOhms | -55°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76QF122050H0JCAP FILM 2200PF 5% 1KVDC RADIAL |
2,563 |
|
Datasheet | Radial | 2200 pF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 289 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI21005001KCAP FILM 10000PF 10% 560VDC RAD |
1,980 |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R46KI21000001K1CAP FILM 10000PF 10% 560VDC RAD |
1,702 |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1H562JX5CAP FILM 5600PF 5% 50VDC 1206 |
7,289 |
|
Datasheet | 1206 (3216 Metric) | 5600 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.043" (1.10mm) | Solder Pads | - | General Purpose | - | - |
|
R82MC2470DQ50JCAP FILM 0.047UF 5% 400VDC RAD |
6,956 |
|
Datasheet | Radial | 0.047 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MMK5224J63J01L4BULKCAP FILM 0.22UF 5% 63VDC RADIAL |
5,501 |
|
Datasheet | Radial | 0.22 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|

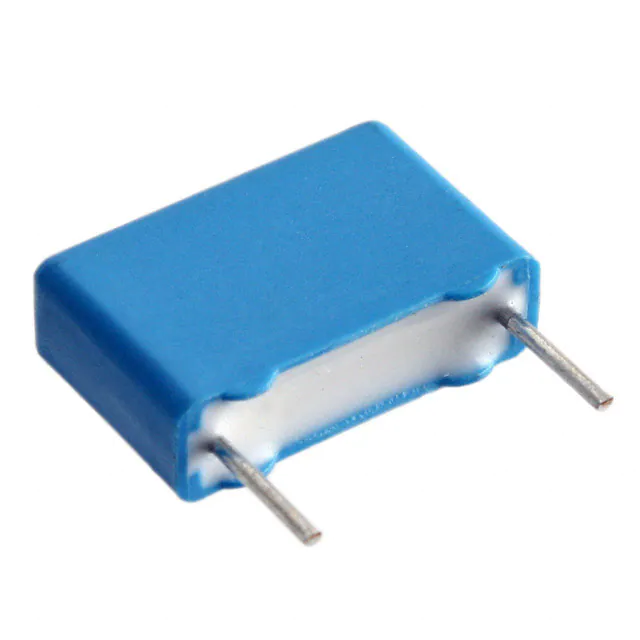

PHE450PA4100JR05CAP FILM 1000PF 5% 1KVDC RADIAL |
5,473 |
|
Datasheet | Radial | 410 pF | ±5% | 375V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
