Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2224JB3CAP FILM 0.22UF 5% 250VDC RADIAL |
2,805 |
|
Datasheet | Radial | 0.22 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.213" W (10.30mm x 5.40mm) | 0.594" (15.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
R46KI3100DQM1MCAP FILM 0.1UF 20% 560VDC RADIAL |
2,383 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECQ-UAAF223MCAP FILM 0.022UF 20% 275VAC RADI |
1,966 |
|
Datasheet | Radial | 0.022 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X2 | - |
|
R463I24700001MCAP FILM 0.047UF 20% 630VDC RAD |
1,795 |
|
Datasheet | Radial | 0.047 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

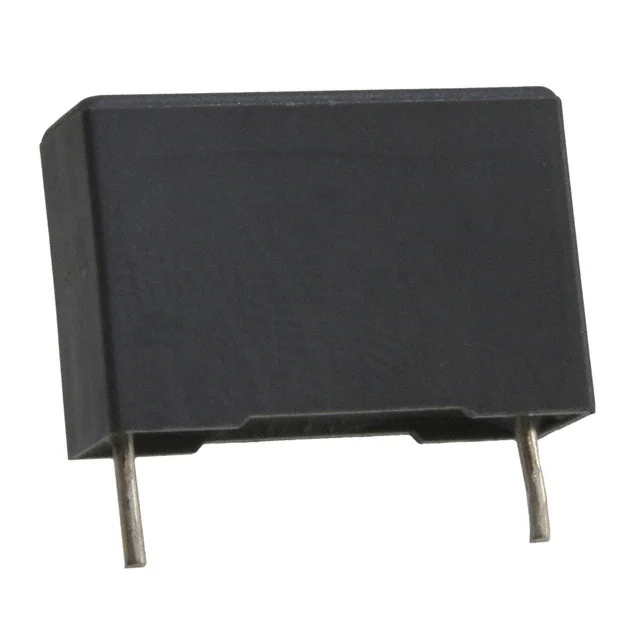

R75QI2330AA00JCAP FILM 0.033UF 5% 1KVDC RADIAL |
1,750 |
|
Datasheet | Radial | 0.033 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75QI23305000JCAP FILM 0.033UF 5% 1KVDC RADIAL |
1,345 |
|
Datasheet | Radial | 0.033 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R82DC4100SH60JCAP FILM 1UF 5% 63VDC RADIAL |
9,110 |
|
Datasheet | Radial | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.197" W (7.20mm x 5.00mm) | 0.398" (10.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
MMK5224K50J01L4BULKCAP FILM 0.22UF 10% 50VDC RADIAL |
5,912 |
|
Datasheet | Radial | 0.22 µF | ±10% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
R75UI122050H4JCAP FILM 2200PF 5% 2KVDC RADIAL |
3,979 |
|
Datasheet | Radial | 2200 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 361.7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76UI139050H4JCAP FILM 3900PF 5% 2KVDC RAD |
3,180 |
|
Datasheet | Radial | 3900 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 490 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76TI210050H4JCAP FILM 10000PF 5% 1.6KVDC RAD |
3,131 |
|
Datasheet | Radial | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60QF1220AA01JCAP FILM 2200PF 5% 1KVDC RADIAL |
3,015 |
|
Datasheet | Radial | 2200 pF | ±5% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
R413F1100CK00MCAP FILM 1000PF 20% 1KVDC RADIAL |
2,840 |
|
Datasheet | Radial | 1000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-FD2W334KQCAP FILM 0.33UF 10% 450VDC RAD |
2,334 |
|
Datasheet | Radial | 0.33 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.496" L x 0.220" W (12.60mm x 5.60mm) | 0.606" (15.40mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Straight 18x6.jpg)
|
ECW-FA2J154JCAP FILM 0.15UF 5% 630VDC RADIAL |
2,099 |
|
Datasheet | Radial | 0.15 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.236" W (18.20mm x 6.00mm) | 0.441" (11.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R413I21005000MCAP FILM 10000PF 20% 1KVDC RAD |
2,000 |
|
Datasheet | Radial | 10000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
|
MMK5224K100J02L4BULKCAP FILM 0.22UF 10% 100VDC RAD |
1,933 |
|
Datasheet | Radial | 0.22 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
R413I215050T1KCAP FILM 0.015UF 10% 1.5KVDC RAD |
1,910 |
|
Datasheet | Radial | 0.015 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R75MD2100AA40JCAP FILM 10000PF 5% 400VDC RAD |
1,842 |
|
Datasheet | Radial | 10000 pF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KF247040P0MCAP FILM 0.047UF 20% 560VDC RAD |
1,553 |
|
Datasheet | Radial | 0.047 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
