Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R76UI110050H4JCAP FILM 1000PF 5% 2KVDC RADIAL |
3,408 |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 637 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MMK10102K400A01L4BULKCAP FILM 1000PF 10% 400VDC RAD |
3,241 |
|
Datasheet | Radial | 1000 pF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
R82DC3680Z360JCAP FILM 0.68UF 5% 63VDC RADIAL |
2,716 |
|
Datasheet | Radial | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.378" (9.60mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R413I21000000KCAP FILM 10000PF 10% 1KVDC RAD |
1,799 |
|
Datasheet | Radial | 10000 pF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R76UI118050H4JCAP FILM 1800PF 5% 2KVDC RAD |
1,355 |
|
Datasheet | Radial | 1800 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 1.061 Ohms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60PF1470AA30JCAP FILM 4700PF 5% 630VDC RAD |
1,026 |
|
Datasheet | Radial | 4700 pF | ±5% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive | AEC-Q200 | - |
|
|
R76UI127050H4JCAP FILM 2700PF 5% 2KVDC RADIAL |
4,228 |
|
Datasheet | Radial | 2700 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 707 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R71VF322050H6KFILM, RADIAL, PULSE, SINGLE META |
3,480 |
|
Datasheet | Radial | 0.22 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 90 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
F881KH222M300ACAP FILM 2200PF 20% 1KVDC RADIAL |
3,164 |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.295" (7.50mm) | EMI, RFI Suppression | - | - |
|
R75QD1120Z330JCAP FILM 1200PF 5% 1KVDC RADIAL |
1,983 |
|
Datasheet | Radial | 1200 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FD2J683JQCAP FILM 0.068UF 5% 630VDC RAD |
1,633 |
|
Datasheet | Radial | 0.068 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.496" L x 0.197" W (12.60mm x 5.00mm) | 0.528" (13.40mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
LDECA1330JA0N00CAP FILM 3300PF 5% 50VDC 1206 |
1,619 |
|
Datasheet | 1206 (3216 Metric) | 3300 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.047" (1.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECQ-UBAF222MCAP FILM 0.0022UF 20% 300VAC RAD |
1,259 |
|
Datasheet | Radial | 2200 pF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.602" L x 0.197" W (15.30mm x 5.00mm) | 0.472" (12.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1, Y2 | - |
|
R413I215050T0KCAP FILM 0.015UF 10% 1.5KVDC RAD |
1,030 |
|
Datasheet | Radial | 0.015 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-U2562V16CAP FILM 5600PF 5% 250VDC 1913 |
15,971 |
|
Datasheet | 1913 (4833 Metric) | 5600 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75PF21004030JCAP FILM 10000PF 5% 630VDC RAD |
11,580 |
|
Datasheet | Radial | 10000 pF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

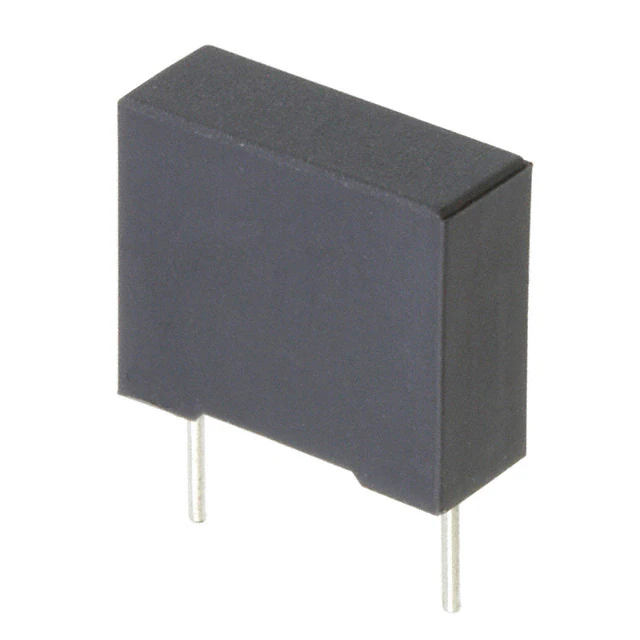

R745F1220AA00JCAP FILM 2200PF 5% 1.6KVDC RAD |
3,830 |
|
Datasheet | Radial | 2200 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
.jpg)
|
ECH-U1C563JX5CAP FILM 0.056UF 5% 16VDC 1210 |
5,975 |
|
Datasheet | 1210 (3225 Metric) | 0.056 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECH-U1H471JB5CAP FILM 470PF 5% 50VDC 0805 |
5,117 |
|
Datasheet | 0805 (2012 Metric) | 470 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
-H-1.jpg)
|
ECW-U1392JX5CAP FILM 3900PF 5% 100VDC 1206 |
2,763 |
|
Datasheet | 1206 (3216 Metric) | 3900 pF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
