Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series Straight 26x13.jpg)
|
ECW-F2W475JACAP FILM 4.7UF 5% 450VDC RADIAL |
419 |
|
Datasheet | Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.035" L x 0.543" W (26.30mm x 13.80mm) | 0.831" (21.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
PHE845VY6220MR30L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
4,215 |
|
Datasheet | Radial | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-U1105KCVCAP FILM 1UF 10% 100VDC 3925 |
703 |
|
Datasheet | 3925 (9863 Metric) | 1 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E1106KFCAP FILM 10UF 10% 100VDC RADIAL |
3,538 |
|
Datasheet | Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
LDEDD4100JA0N00CAP FILM 1UF 5% 63VDC 2220 |
3,344 |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
 Series Straight 23x14.jpg)
|
ECW-F2475JACAP FILM 4.7UF 5% 250VDC RADIAL |
3,046 |
|
Datasheet | Radial | 4.7 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 0.870" (22.10mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

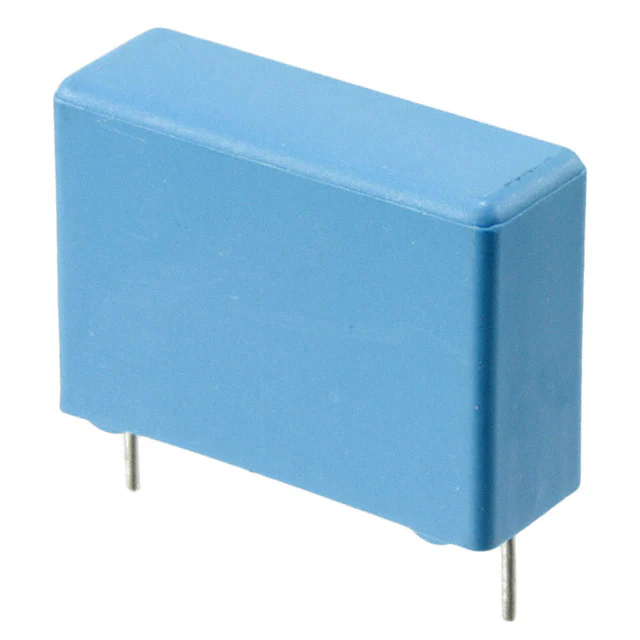

PHE450XD5100JD15R06L2CAP FILM 10000PF 5% 3KVDC RADIAL |
1,950 |
|
Datasheet | Radial | 10000 pF | ±5% | 1000V (1kV) | 3000V (3kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
|
ECW-U2334KCVCAP FILM 0.33UF 10% 250VDC 3925 |
13,729 |
|
Datasheet | 3925 (9863 Metric) | 0.33 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.197" (5.00mm) | Solder Pads | - | General Purpose | - | - |
|

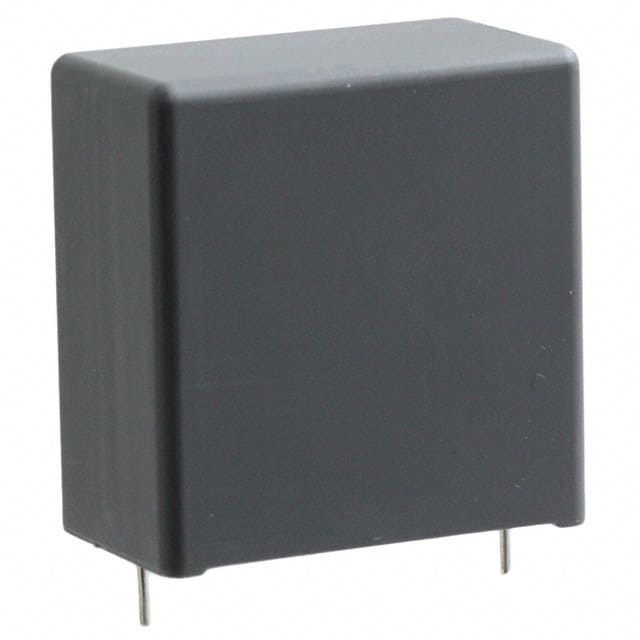

R463R447000M2MCAP FILM 4.7UF 20% 630VDC RADIAL |
3,288 |
|
Datasheet | Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

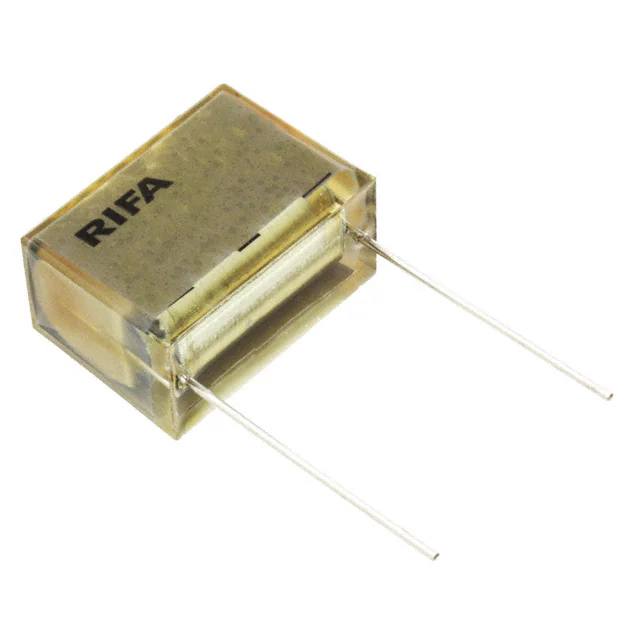

PME271M647KR30CAP FILM 0.47UF 10% 275VAC RAD |
140 |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|
PME264NE6100MR30CAP FILM 0.1UF 20% 660VAC RADIAL |
164 |
|
Datasheet | Radial | 0.1 µF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | X2 | - |
|

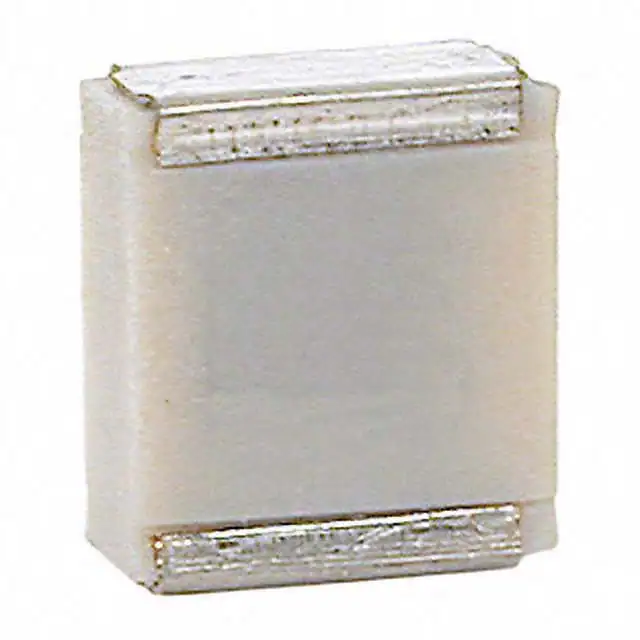

SMC5.7104J50J35TR12CAP FILM 0.1UF 5% 50VDC 2220 |
4,841 |
|
Datasheet | 2220 (5750 Metric) | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
PHE850ER7100MR03R06L2CAP FILM 1UF 20% 1.25KVDC RADIAL |
1,450 |
|
Datasheet | Radial | 1 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.614" L x 0.748" W (41.00mm x 19.00mm) | 1.417" (36.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|

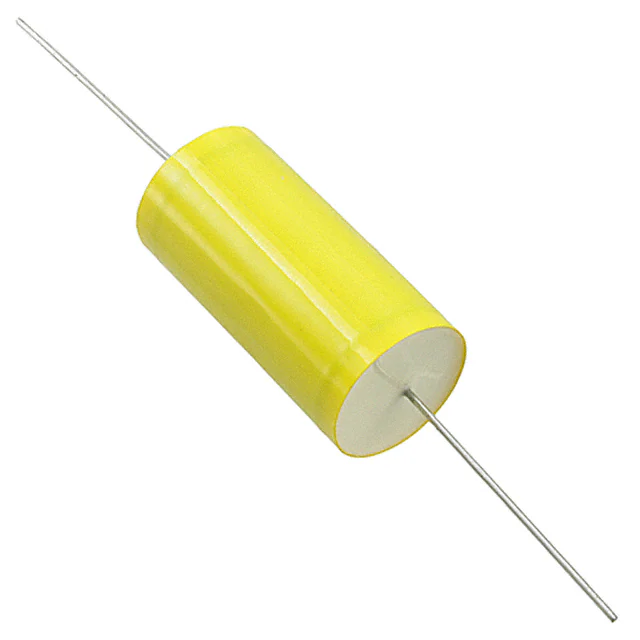

C4CAYUD3100AA1JCAP FILM 0.1UF 5% 3KVDC AXIAL |
467 |
|
Datasheet | Axial | 0.1 µF | ±5% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -40°C ~ 85°C | Through Hole | 1.063" Dia x 1.732" L (27.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
JS251156-BACAP FILM 15UF 10% 250VAC CHAS MT |
381 |
|
Datasheet | Rectangular Box | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
R76QW4100SE30KCAP FILM 1UF 10% 1KVDC RADIAL |
3,493 |
|
Datasheet | Radial | 1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4ATDBW5200A30JCAP FILM 20UF 5% 250VDC RADIAL |
3,444 |
|
Datasheet | Radial - 4 Leads | 20 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 4.2 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4AQQBW5300A3MJCAP FILM 30UF 5% 1.1KVDC RADIAL |
1,214 |
|
Datasheet | Radial - 4 Leads | 30 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 5.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE845VW7100MR06L2CAP FILM 1UF 20% 1.5KVDC RADIAL |
1,200 |
|
Datasheet | Radial | 1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
C4BSPBX4150ZALJCAP FILM 1.5UF 5% 1.2KVDC SCREW |
128 |
|
Datasheet | Rectangular Box | 1.5 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
