Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Series Straight 18x9.jpg)
|
ECW-F2W105JACAP FILM 1UF 5% 450VDC RADIAL |
59,701 |
|
Datasheet | Radial | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.366" W (18.10mm x 9.30mm) | 0.555" (14.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECH-U1H104GX9CAP FILM 0.1UF 2% 50VDC 1913 |
18,239 |
|
Datasheet | 1913 (4833 Metric) | 0.1 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
PME271Y510MR30CAP FILM 10000PF 20% 1KVDC RAD |
1,982 |
|
Datasheet | Radial | 10000 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.205" W (18.50mm x 5.20mm) | 0.413" (10.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-U4223V17CAP FILM 0.022UF 5% 400VDC 2416 |
4,099 |
|
Datasheet | 2416 (6041 Metric) | 0.022 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.134" (3.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
LDEPD2100KA5N00CAP FILM 10000PF 10% 630VDC 2220 |
27,279 |
|
Datasheet | 2220 (5750 Metric) | 10000 pF | ±10% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.118" (3.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R71QR41004010KCAP FILM 1UF 10% 1KVDC RADIAL |
8,217 |
|
Datasheet | Radial | 1 µF | ±10% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
ECQ-E2475KFCAP FILM 4.7UF 10% 250VDC RADIAL |
6,500 |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
R46KN415040P1MCAP FILM 1.5UF 20% 560VDC RADIAL |
3,880 |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-U4104V17CAP FILM 0.1UF 5% 400VDC 3925 |
409,767 |
|
Datasheet | 3925 (9863 Metric) | 0.1 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.173" (4.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
.jpg)
|
ECH-U1H154GX9CAP FILM 0.15UF 2% 50VDC 2416 |
11,531 |
|
Datasheet | 2416 (6041 Metric) | 0.15 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.083" (2.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U1C474JC9CAP FILM 0.47UF 5% 16VDC 2416 |
5,514 |
|
Datasheet | 2416 (6041 Metric) | 0.47 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-U2473V16CAP FILM 0.047UF 5% 250VDC 2416 |
10,283 |
|
Datasheet | 2416 (6041 Metric) | 0.047 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.106" (2.70mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
ECW-UC2J223JVCAP FILM 0.022UF 5% 630VDC 2825 |
5,242 |
|
Datasheet | 2825 (7163 Metric) | 0.022 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.142" (3.60mm) | Solder Pads | - | General Purpose | - | - |
|

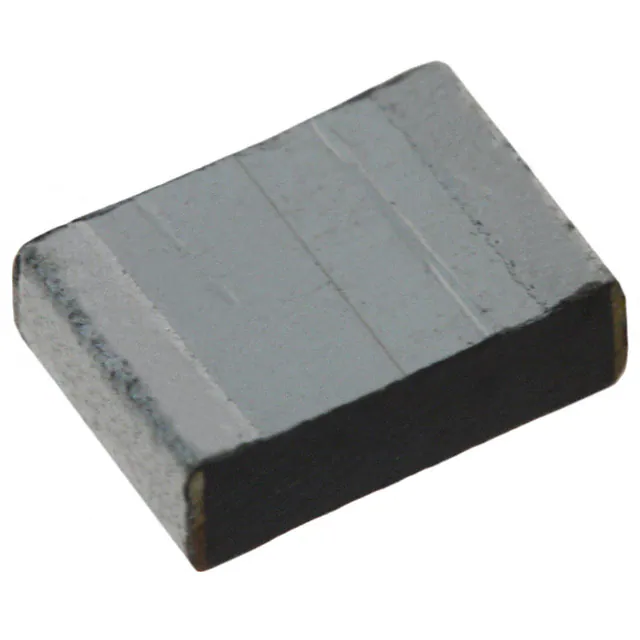

ECH-U1H224JX9CAP FILM 0.22UF 5% 50VDC 2416 |
12,632 |
|
Datasheet | 2416 (6041 Metric) | 0.22 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECH-U1H224GX9CAP FILM 0.22UF 2% 50VDC 2416 |
6,014 |
|
Datasheet | 2416 (6041 Metric) | 0.22 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|

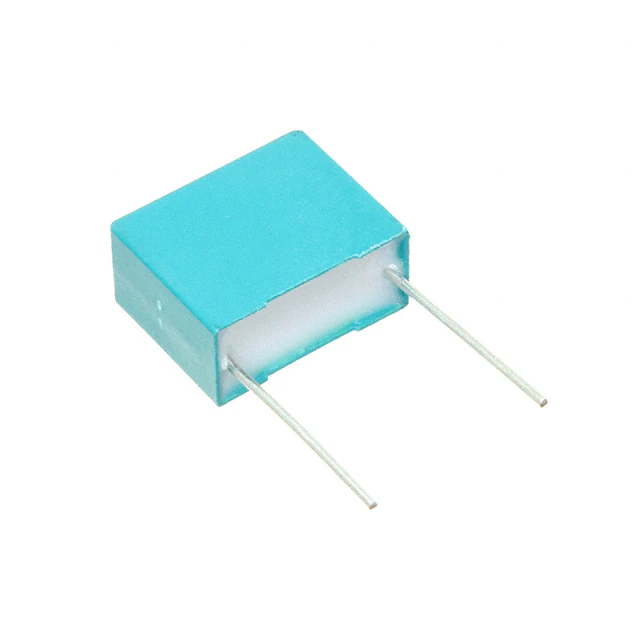

F861BZ105M310ACAP FILM 1UF 20% 630VDC RADIAL |
2,410 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.472" W (18.00mm x 12.00mm) | 0.787" (20.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
LDEID3100KA0N00CAP FILM 0.1UF 10% 250VDC 2220 |
11,277 |
|
Datasheet | 2220 (5750 Metric) | 0.1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDECD3470KA5N00CAP FILM 0.47UF 10% 50VDC 2220 |
10,387 |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECQ-E1335KFCAP FILM 3.3UF 10% 100VDC RADIAL |
828 |
|
Datasheet | Radial | 3.3 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-F6333HLCAP FILM 0.033UF 3% 630VDC RAD |
6,690 |
|
Datasheet | Radial | 0.033 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.280" W (13.00mm x 7.10mm) | 0.441" (11.20mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
