Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECP-U1C474MA5CAP FILM 0.47UF 20% 16VDC 1206 |
38,187 |
|
Datasheet | 1206 (3216 Metric) | 0.47 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
.jpg)
|
ECH-U1C104JX5CAP FILM 0.1UF 5% 16VDC 1210 |
73,723 |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
.jpg)
|
ECH-U1C683GX5CAP FILM 0.068UF 2% 16VDC 1210 |
38,665 |
|
Datasheet | 1210 (3225 Metric) | 0.068 µF | ±2% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R463I347000N0MCAP FILM 0.47UF 20% 630VDC RAD |
5,482 |
|
Datasheet | Radial | 0.47 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
ECP-U1C684MA5CAP FILM 0.68UF 20% 16VDC 1206 |
13,445 |
|
Datasheet | 1206 (3216 Metric) | 0.68 µF | ±20% | 12V | 16V | Acrylic, Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.063" (1.60mm) | Solder Pads | - | EMI, RFI Suppression | - | Low ESR |
|

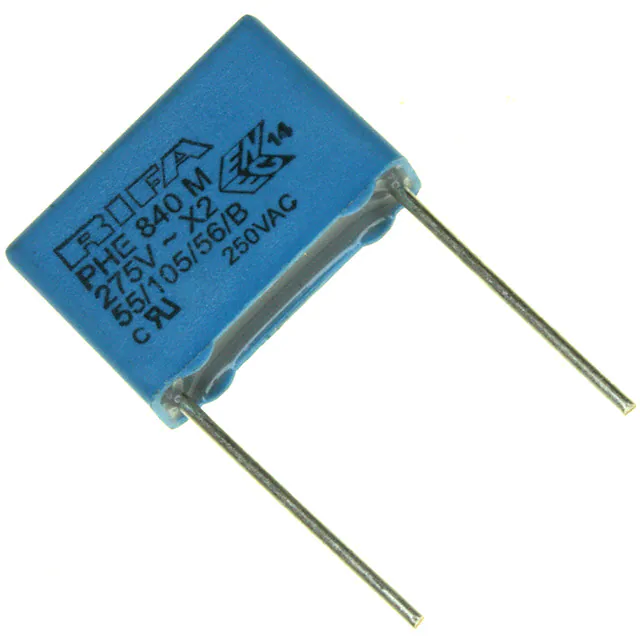

PHE840MB6100MB05R17CAP FILM 0.1UF 20% 760VDC RADIAL |
12,482 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
 Series Style B 8-W.jpg)
|
ECW-F2W474JAQCAP FILM 0.47UF 5% 450VDC RADIAL |
2,705 |
|
Datasheet | Radial | 0.47 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.343" W (13.00mm x 8.70mm) | 0.764" (19.40mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
R46KN410045N2MCAP FILM 1UF 20% 560VDC RADIAL |
13,290 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
.jpg)
|
ECH-U1H104JX9CAP FILM 0.1UF 5% 50VDC 1913 |
25,773 |
|
Datasheet | 1913 (4833 Metric) | 0.1 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2225KFCAP FILM 2.2UF 10% 250VDC RADIAL |
4,677 |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
PME271Y447MR30CAP FILM 4700PF 20% 1KVDC RADIAL |
10,266 |
|
Datasheet | Radial | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
ECQ-UAAF105MCAP FILM 1UF 20% 275VAC RADIAL |
866 |
|
Datasheet | Radial | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R82CC4220Z370JCAP FILM 2.2UF 5% 50VDC RADIAL |
39,133 |
|
Datasheet | Radial | 2.2 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
LDEEC3100KA5N00CAP FILM 0.1UF 10% 100VDC 1812 |
14,031 |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEQD1100KA5N00CAP FILM 1000PF 10% 1KVDC 2220 |
5,997 |
|
Datasheet | 2220 (5750 Metric) | 1000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
.jpg)
|
ECH-U1H473JX9CAP FILM 0.047UF 5% 50VDC 1913 |
8,861 |
|
Datasheet | 1913 (4833 Metric) | 0.047 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2222JC9CAP FILM 2200PF 5% 250VDC 1913 |
665 |
|
Datasheet | 1913 (4833 Metric) | 2200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|
R46KN347000N0MCAP FILM 0.47UF 20% 560VDC RAD |
29,926 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

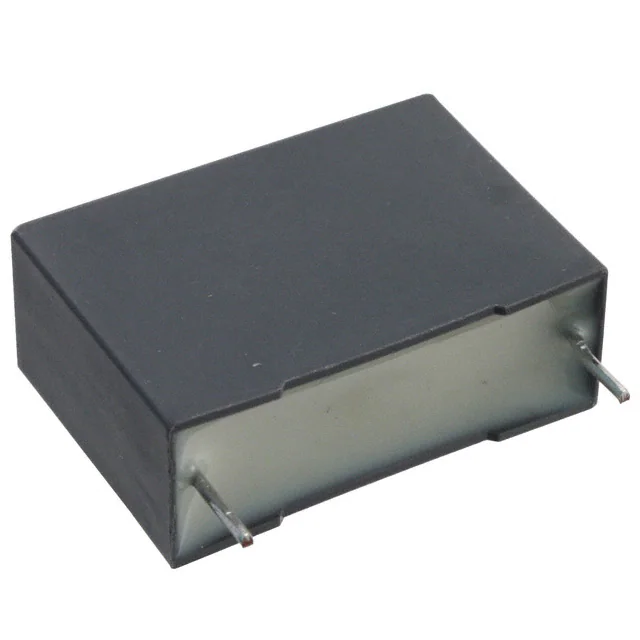

R463N410000N2MCAP FILM 1UF 20% 630VDC RADIAL |
9,533 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
LDECB3100KA0N00CAP FILM 0.1UF 10% 50VDC 1210 |
10,819 |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
