Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDEPD2100JA5N00CAP FILM 10000PF 5% 630VDC 2220 |
5,475 |
|
Datasheet | 2220 (5750 Metric) | 10000 pF | ±5% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.118" (3.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

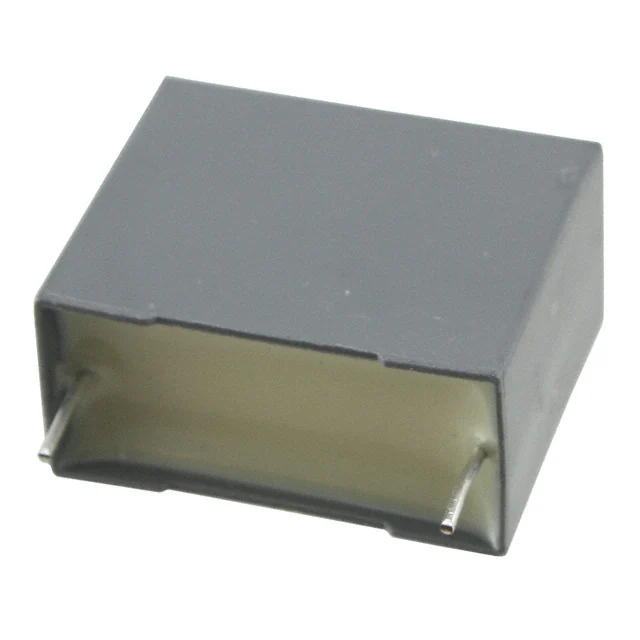

R46KN422000P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
6,385 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
LDEDD3680KA5N00CAP FILM 0.68UF 10% 63VDC 2220 |
20,391 |
|
Datasheet | 2220 (5750 Metric) | 0.68 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME295RB4470MR30CAP FILM 4700PF 20% 1.5KVDC RAD |
3,654 |
|
Datasheet | Radial | 4700 pF | ±20% | 480V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-UC2J333JVCAP FILM 0.033UF 5% 630VDC 2825 |
1,166 |
|
Datasheet | 2825 (7163 Metric) | 0.033 µF | ±5% | 250V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
LDEED3470KA0N00CAP FILM 0.47UF 10% 100VDC 2220 |
5,878 |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

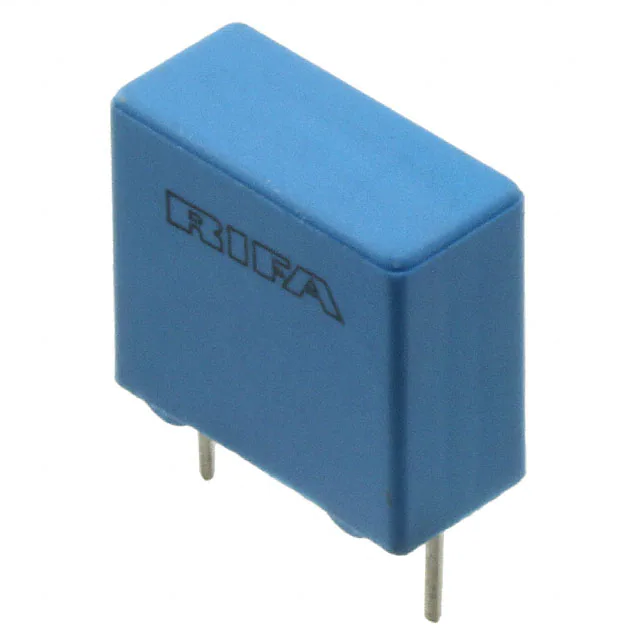

PHE426HB7100JR06CAP FILM 1UF 5% 250VDC RADIAL |
15,882 |
|
Datasheet | Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.374" W (18.00mm x 9.50mm) | 0.689" (17.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
LDEDD4100KA0N00CAP FILM 1UF 10% 63VDC 2220 |
5,651 |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECW-U2104V16CAP FILM 0.1UF 5% 250VDC 2420 |
1,793 |
|
Datasheet | 2420 (6050 Metric) | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

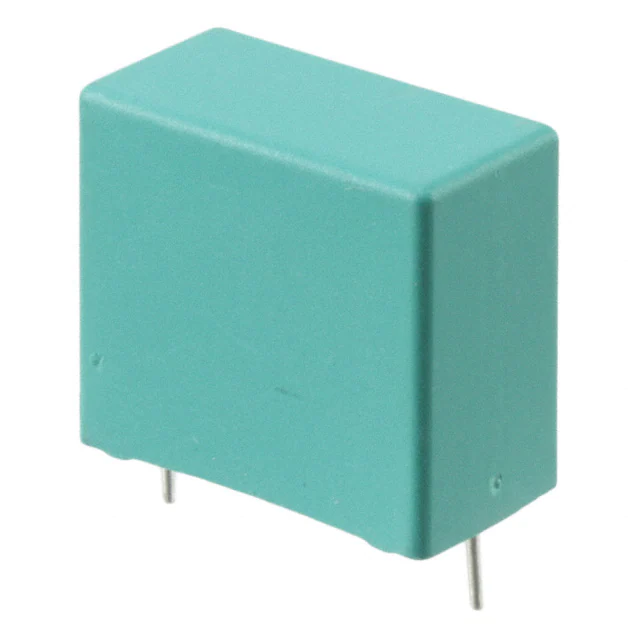

PHE850ED6220MD20R06L2CAP FILM 0.22UF 20% 1.25KVDC RAD |
166 |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-U1334KC9CAP FILM 0.33UF 10% 100VDC 2820 |
13,975 |
|
Datasheet | 2820 (7150 Metric) | 0.33 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.146" (3.70mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2685KFCAP FILM 6.8UF 10% 250VDC RADIAL |
7,901 |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.921" (23.40mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R76PN33304030JCAP FILM 0.33UF 5% 630VDC RADIAL |
2,738 |
|
Datasheet | Radial | 0.33 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
LDECD4100KA0N00CAP FILM 1UF 10% 50VDC 2220 |
11,137 |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

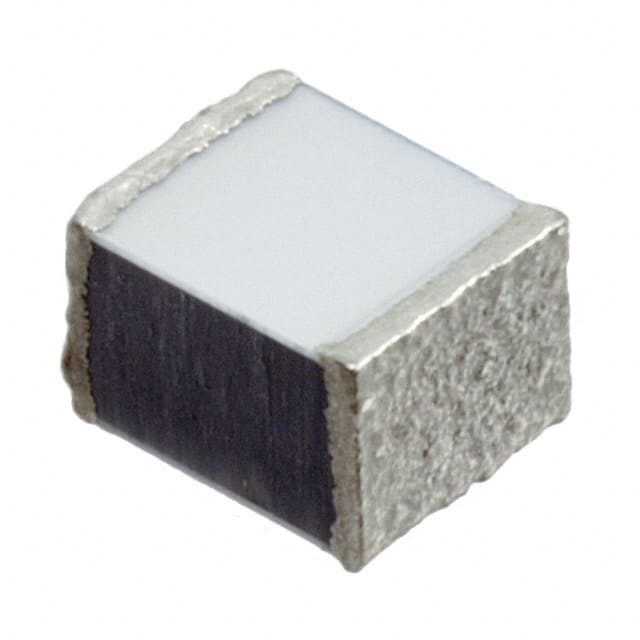

LDEME3100JA5N00CAP FILM 0.1UF 5% 400VDC 2824 |
13,274 |
|
Datasheet | 2824 (7260 Metric) | 0.1 µF | ±5% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEDE4150KA0N00CAP FILM 1.5UF 10% 63VDC 2824 |
10,477 |
|
Datasheet | 2824 (7260 Metric) | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEDE4100KA5N00CAP FILM 1UF 10% 63VDC 2824 |
7,111 |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.122" (3.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
LDEEE4100KA0N00CAP FILM 1UF 10% 100VDC 2824 |
29,938 |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R474R34705001KCAP FILM 0.47UF 10% 1KVDC RADIAL |
2,985 |
|
Datasheet | Radial | 0.47 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
PHE450PF6470JF13R06L2CAP FILM 0.47UF 5% 1KVDC RADIAL |
2,571 |
|
Datasheet | Radial | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
