Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AUQBU4100M1WJFILM, RADIAL, METALLIZED POLYPRO |
766 |
|
Datasheet | Radial | 1 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 31.6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.815" (20.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R75IN41804040JCAP FILM 1.8UF 5% 250VDC RADIAL |
149 |
|
Datasheet | Radial | 1.8 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R60ER5150AA40KCAP FILM AUTOMOTIVE |
2,987 |
|
Datasheet | Radial | 15 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R475N31005001KCAP FILM 0.1UF 10% 1KVDC RADIAL |
474 |
|
Datasheet | Radial | 0.1 µF | ±10% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-UAAF225T1CAP FILM 2.2UF 10% 275VAC RAD |
200 |
|
Datasheet | Radial | 2.2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.571" W (31.00mm x 14.50mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
C4AF9BU4150A1XKCAP FILM 1.5UF 10% 310VAC RADIAL |
2,532 |
|
Datasheet | Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 9.5 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
|
ECQ-UAAF335SACAP FILM 3.3UF 20% 275VAC RAD |
283 |
|
Datasheet | Radial | 3.3 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.748" W (31.00mm x 19.00mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
A72MF06802600JCAP FILM AXL POLYPROP FOIL |
6,000 |
|
Datasheet | Axial | 680 pF | ±5% | 160V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C4GAFUC4300AA0JCAP FILM METAL AXL POLYPROP |
9,702 |
|
Datasheet | Axial | 3 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 3.6 mOhms | -40°C ~ 85°C | Through Hole | 0.787" Dia x 1.299" L (20.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C4AQILU4380M12JCAP FILM 3.8UF 5% 800VDC RADIAL |
136 |
|
Datasheet | Radial | 3.8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 13.2 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|

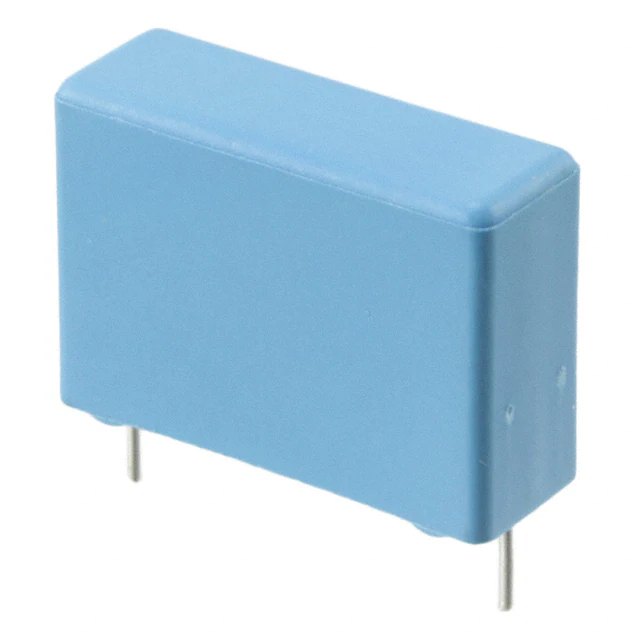

PHE820ED6220MR06L2CAP FILM 0.22UF 20% 300VAC RAD |
236 |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME278RC5470MR30CAP FILM 0.047UF 20% 1KVDC RAD |
263 |
|
Datasheet | Radial | 0.047 µF | ±20% | 440V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X1 | - |
|
|
A72MF0150AA00JCAP FILM AXL POLYPROP FOIL |
4,450 |
|
Datasheet | Axial | 150 pF | ±5% | 160V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
SMP253MA4150MTR24CAP FILM 1500PF 20% 1.5KVDC SMD |
491 |
|
Datasheet | Nonstandard SMD | 1500 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
F161PP223K100VCAP FILM 0.022UF 10% 100VDC 2220 |
6,912 |
|
Datasheet | 2220 (5750 Metric) | 0.022 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.126" (3.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
P278SU104M480ACAP FILM 0.1UF 20% 480VAC RADIAL |
3,457 |
|
Datasheet | Radial | 0.1 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | - | - | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
SMP253MA4250MTR24CAP FILM 2500PF 20% 1.5KVDC SMD |
555 |
|
Datasheet | Nonstandard SMD | 2500 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
|
SMP253MA4100MTR24CAP FILM 1000PF 20% 1.5KVDC SMD |
2,937 |
|
Datasheet | Nonstandard SMD | 1000 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
|
SMP253MA4390MTR24CAP FILM 3900PF 20% 1.5KVDC SMD |
200 |
|
Datasheet | Nonstandard SMD | 3900 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
PME271E522MR30CAP FILM 0.022UF 20% 630VDC RAD |
1,241 |
|
Datasheet | Radial | 0.022 µF | ±20% | 300V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.748" L x 0.287" W (19.00mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X1 | - |
