Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS211126-AACAP FILM 12UF 10% 210VAC CHAS MT |
1,483 |
|
Datasheet | Rectangular Box | 12 µF | ±10% | 210V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.555" L x 1.051" W (39.50mm x 26.70mm) | 1.280" (32.50mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
SMP253MA4220MTR24CAP FILM 2200PF 20% 1.5KVDC SMD |
1,214 |
|
Datasheet | Nonstandard SMD | 2200 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
R49AR422050B1MCAP FILM SAFETY/EMI SUPP RAD |
8,374 |
|
Datasheet | Radial | 2.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
SMP253MA4330MTR24CAP FILM 3300PF 20% 1.5KVDC SMD |
128 |
|
Datasheet | Nonstandard SMD | 3300 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
SMP253MA4470MTV24CAP FILM 4700PF 20% 1.5KVDC SMD |
1,588 |
|
Datasheet | Nonstandard | 4700 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.449" W (12.70mm x 11.40mm) | 0.256" (6.50mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
C4AF7BU4100A1XKCAP FILM 1UF 10% 700VDC RADIAL |
144 |
|
Datasheet | Radial | 1 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
P278CJ473M480ACAP FILM 0.047UF 20% 480VAC RAD |
5,994 |
|
Datasheet | Radial | 0.047 µF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X1 | - |
|
|
F873RC474M760ZCAP FILM POLYPROP RAD X1 |
3,303 |
|
Datasheet | Radial | 0.47 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.630" W (41.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
SMP253MA4470MTR24CAP FILM 4700PF 20% 1.5KVDC SMD |
8,126 |
|
Datasheet | Nonstandard | 4700 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
ECQ-UAAF475KCAP FILM 4.7UF 10% 275VAC RADIAL |
197 |
|
Datasheet | Radial | 4.7 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.220" L x 0.906" W (31.00mm x 23.00mm) | 1.319" (33.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R60MW5100AA40KCAP FILM AUTOMOTIVE |
4,534 |
|
Datasheet | Radial | 10 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
R76UR3220SE30KCAP FILM AUTO POLYPROP RAD |
2,760 |
|
Datasheet | Radial | 0.22 µF | ±10% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
PHE450PR6560JR06L2NO SPEC SHEET |
185 |
|
Datasheet | Radial | 0.56 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
A70IF2100AA00KCAP FILM 10000PF 10% 250VDC AXL |
5,740 |
|
Datasheet | Axial | 10000 pF | ±10% | 200V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
SMC7.3473J100K35TR12CAP FILM 0.047UF 5% 100VDC 2824 |
4,710 |
|
Datasheet | 2824 (7260 Metric) | 0.047 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
C4AQILW4800M33JCAP FILM 8UF 5% 800VDC RADIAL |
254 |
|
Datasheet | Radial - 4 Leads | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 11.4 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.756" (19.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECQ-UAAF475LDCAP FILM 4.7UF 20% 275VAC RADIAL |
169 |
|
Datasheet | Radial | 4.7 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.709" W (41.00mm x 18.00mm) | 1.319" (33.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
F161ZS124K630VCAP FILM 0.12UF 10% 630VDC SMD |
2,956 |
|
Datasheet | Nonstandard SMD | 0.12 µF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
SMC5.7683J50J35TR12CAP FILM 0.068UF 5% 50VDC 2220 |
276 |
|
Datasheet | 2220 (5750 Metric) | 0.068 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | High Temperature |
|

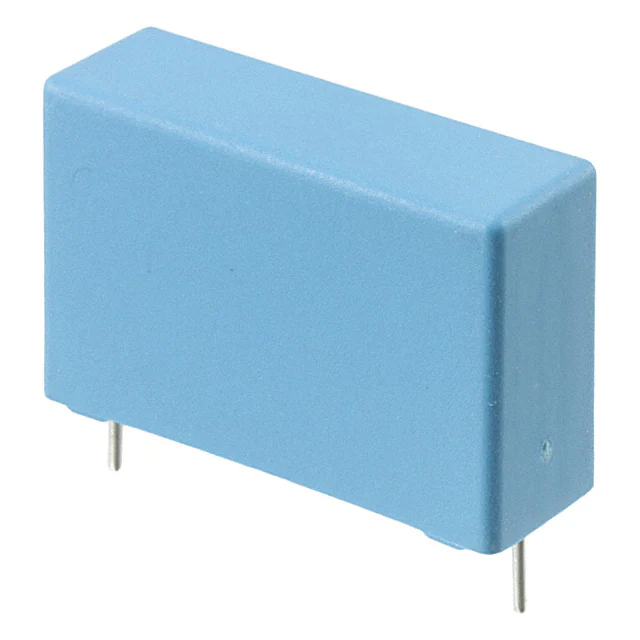

PHE820EF6330MR06L2CAP FILM 0.33UF 20% 300VAC RAD |
214 |
|
Datasheet | Radial | 0.33 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
