Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C878AF35200AA0JCAP FILM MOTOR START RUN |
3,304 |
|
Datasheet | Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|

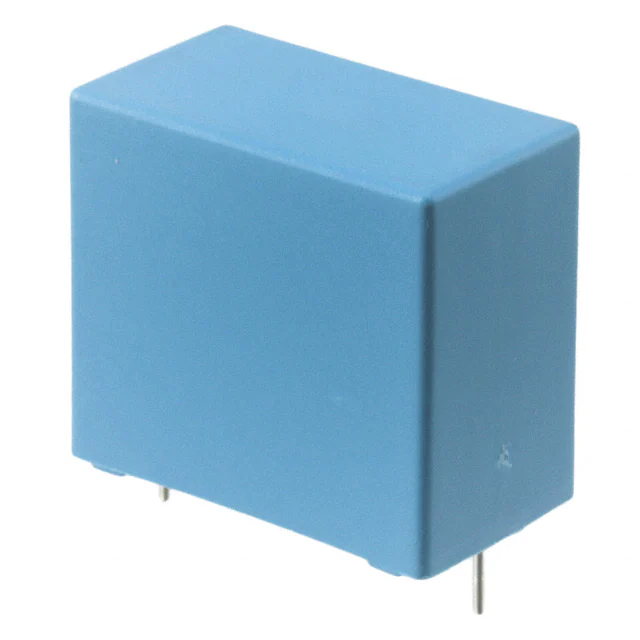

PHE820EF7100MR06L2CAP FILM 1UF 20% 300VAC RADIAL |
177 |
|
Datasheet | Radial | 1 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
EZP-Q38805MTACAP FILM 8UF 5% 380VAC RADIAL |
149 |
|
Datasheet | Radial - 4 Leads | 8 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.9 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.083" W (41.00mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
C4ASNBW3470A3EJCAP FILM 0.47UF 5% 1KVDC RADIAL |
5,412 |
|
Datasheet | Radial - 4 Leads | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|
SMR15225K63B12L4BULKCAP FILM 2.2UF 10% 63VDC RADIAL |
7,149 |
|
Datasheet | Radial | 2.2 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
|
EZP-Q60155LTACAP FILM 1.5UF 10% 600VAC RADIAL |
588 |
|
Datasheet | Radial | 1.5 µF | ±10% | 600V | - | Polypropylene (PP), Metallized | 18.7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
C954PF44340ZA0XCAP FILM 3.4UF 450VAC |
9,508 |
|
- |
- | 3.4 µF | - | 450V | - | - | - | - | - | - | - | - | - | - | - | - |
|
EZP-V80905LTUCAP FILM 9UF 10% 800V RADIAL |
160 |
|
Datasheet | Radial | 9 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 12.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C4CAPUC3470AA1KCAP FILM METAL AXL POLYPROP |
8,096 |
|
Datasheet | Axial | 0.47 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 0.906" Dia x 1.732" L (23.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
EZP-E57126LTBCAP FILM 12UF 15% 575VDC RADIAL |
643 |
|
Datasheet | Radial | 12 µF | ±15% | - | 575V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.634" L x 0.965" W (41.50mm x 24.50mm) | 0.807" (20.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
A72QQ2470ZA00MCAP FILM 0.047UF 20% 1KVDC AXIAL |
1,663 |
|
- |
Axial | 0.047 µF | ±20% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
A72UQ2100AA00KCAP FILM 10000PF 10% 2KVDC AXIAL |
1,724 |
|
Datasheet | Axial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" Dia x 1.102" L (13.00mm x 28.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
EZP-Q60225LTACAP FILM 2.2UF 10% 600VAC RADIAL |
867 |
|
Datasheet | Radial | 2.2 µF | ±10% | 600V | - | Polypropylene (PP), Metallized | 13.3 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 1.024" W (41.50mm x 26.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
A72UT2470AA00KCAP FILM 0.047UF 10% 2KVDC AXIAL |
238 |
|
Datasheet | Axial | 0.047 µF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.886" Dia x 1.299" L (22.50mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C3B2AD44800B20KCAP FILM 250V |
440 |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EZP-V60456MTSCAP FILM 45UF 10% 600V RADIAL |
149 |
|
Datasheet | Radial - 4 Leads | 45 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 7.6 mOhms | -40°C ~ 105°C | Through Hole | 2.244" L x 0.984" W (57.00mm x 25.00mm) | 1.614" (41.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C4ATHBW4470A3FJCAP FILM METAL RAD POLYPROP |
5,604 |
|
Datasheet | Radial | 4.7 µF | ±5% | 350V | 600V | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C274AC35500AA0JCAP FILM 50UF 5% 470VAC RADIAL |
3,535 |
|
Datasheet | Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.803" (122.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
C878AF35400AA0JCAP FILM MOTOR START RUN |
6,865 |
|
Datasheet | Radial, Can | 40 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
|
A72ST3100ZA00MCAP FILM 0.1UF 20% 1.5KVDC AXIAL |
1,756 |
|
Datasheet | Axial | 0.1 µF | ±20% | 450V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | - | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
