Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECH-U1H682JB5CAP FILM 6800PF 5% 50VDC 1206 |
2,969 |
|
Datasheet | 1206 (3216 Metric) | 6800 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UAAV224S1CAP FILM 0.22UF 20% 310VAC RAD |
900 |
|
Datasheet | Radial | 0.22 µF | ±20% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R82CC4330DQ30JCAP FILM 3.3UF 5% 50VDC RADIAL |
2,283 |
|
Datasheet | Radial | 3.3 µF | ±5% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE426HJ6180JR05CAP FILM 0.18UF 5% 250VDC RADIAL |
718 |
|
Datasheet | Radial | 0.18 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R49AR368000A1KCAP FILM SAFETY/EMI SUPP RAD |
9,259 |
|
Datasheet | Radial | 0.68 µF | ±10% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
R60PN33305050KCAP FILM 0.33UF 10% 630VDC RAD |
5,446 |
|
Datasheet | Radial | 0.33 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECQ-UBAF154MCAP FILM 0.15UF 20% 300VAC RADIA |
999 |
|
Datasheet | Radial | 0.15 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
ECH-U1H153GB5CAP FILM 0.015UF 2% 50VDC 1210 |
336 |
|
Datasheet | 1210 (3225 Metric) | 0.015 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UAAF684S1CAP FILM 0.68UF 20% 275VAC RAD |
996 |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.689" (17.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

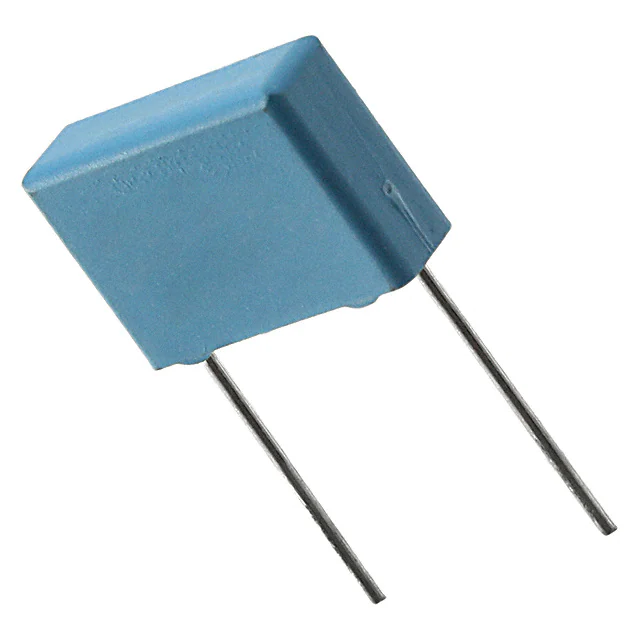

PHE820MB5220MR17CAP FILM 0.022UF 20% 275VAC RAD |
711 |
|
Datasheet | Radial | 0.022 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FE2J155QDCAP FILM 1.5UF 10% 630VDC RADIAL |
400 |
|
Datasheet | Radial | 1.5 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
LDECC2100JA5N00CAP FILM 10000PF 5% 50VDC 1812 |
8,943 |
|
Datasheet | 1812 (4532 Metric) | 10000 pF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MMK5394M50J01L4BULKCAP FILM 0.39UF 20% 50VDC RADIAL |
1,988 |
|
Datasheet | Radial | 0.39 µF | ±20% | 30V | 50V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
|
ECH-U1H392GB5CAP FILM 3900PF 2% 50VDC 1206 |
581 |
|
Datasheet | 1206 (3216 Metric) | 3900 pF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
R76PN3150JB30JCAP FILM AUTO POLYPROP RAD |
2,346 |
|
Datasheet | Radial | 0.15 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75LN32204000KCAP FILM 0.22UF 10% 560VDC RAD |
6,901 |
|
Datasheet | Radial | 0.22 µF | ±10% | 250V | 560V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering | - | - |
 Series.jpg)
|
ECW-FE2J155JCAP FILM 1.5UF 5% 630VDC RADIAL |
284 |
|
Datasheet | Radial | 1.5 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R475R32200001KCAP FILM SAFETY/EMI SUPP RAD |
1,632 |
|
Datasheet | Radial | 0.22 µF | ±10% | 520V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
ECQ-UAAV274T1CAP FILM 0.27UF 10% 310VAC RAD |
700 |
|
Datasheet | Radial | 0.27 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
F461KM224J160ACAP FILM 0.22UF 5% 160VDC RADIAL |
620 |
|
Datasheet | Radial | 0.22 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | High Pulse, DV/DT | - | - |
