Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R60IN43305030JCAP FILM 3.3UF 5% 250VDC RADIAL |
162 |
|
Datasheet | Radial | 3.3 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
ECW-FG2J225Q1CAP FILM 2.2UF 10% 630VDC RADIAL |
405 |
|
Datasheet | Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.610" W (27.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
ECQ-E6185JFCAP FILM 1.8UF 5% 630VDC RADIAL |
796 |
|
Datasheet | Radial | 1.8 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.661" W (31.00mm x 16.80mm) | 1.122" (28.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R76PI3100SE30JCAP FILM 0.1UF 5% 630VDC RADIAL |
761 |
|
Datasheet | Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDECE4100KA5N00CAP FILM 1UF 10% 50VDC 2824 |
11,214 |
|
Datasheet | 2824 (7260 Metric) | 1 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.122" (3.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
F862FN225K310ZV054CAP FILM 2.2UF 10% 630VDC RADIAL |
1,216 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|

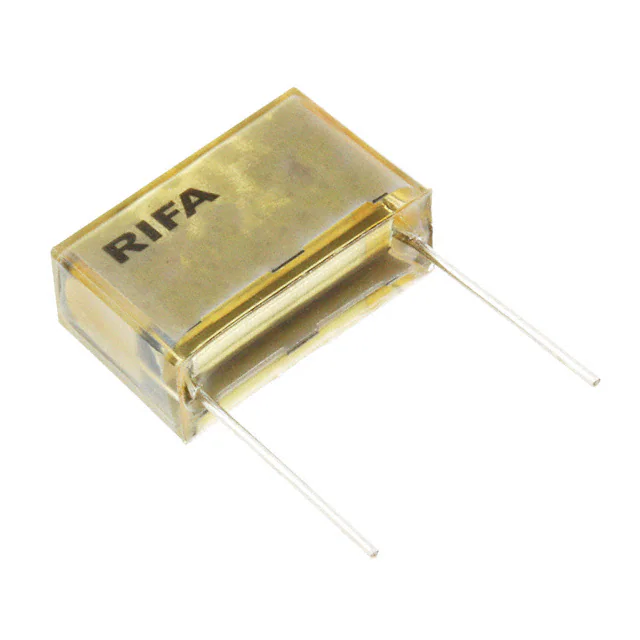

PME271Y547MR19T0CAP FILM 0.047UF 20% 1KVDC RAD |
572 |
|
Datasheet | Radial | 0.047 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
ECW-F6434JLCAP FILM 0.43UF 5% 630VDC RADIAL |
366 |
|
Datasheet | Radial | 0.43 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.512" W (20.50mm x 13.00mm) | 0.827" (21.00mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
C4AKOBU4270A3YJFILM, RADIAL, METALLIZED POLYPRO |
652 |
|
Datasheet | Radial | 2.7 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 135°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
LDEDD4100MA0N00CAP FILM 1UF 20% 63VDC 2220 |
4,653 |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±20% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
ECW-FG2J305JCAP FILM 3UF 5% 630VDC RADIAL |
205 |
|
Datasheet | Radial | 3 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
PME295RB4470MR19T0CAP FILM 4700PF 20% 480VAC RAD |
2,649 |
|
Datasheet | Radial | 4700 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
ECW-U2104JC9CAP FILM 0.1UF 5% 250VDC 2420 |
2,291 |
|
Datasheet | 2420 (6050 Metric) | 0.1 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
SMR5224J100J06L16.5CBULKCAP FILM 0.22UF 5% 100VDC RADIAL |
903 |
|
Datasheet | Radial | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
|
ECW-FG2J225P1CAP FILM 2.2UF 5% 630VDC RADIAL |
400 |
|
Datasheet | Radial | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.610" W (27.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
C4AQSBU4150A1XJCAP FILM 1.5UF 5% 1.5KVDC RADIAL |
983 |
|
Datasheet | Radial | 1.5 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 17.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

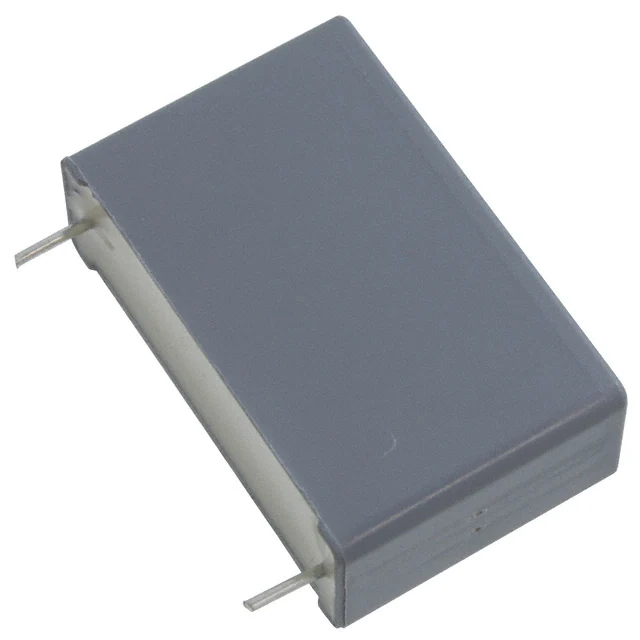

R73UR2150SE00JCAP FILM 0.015UF 5% 2KVDC RADIAL |
634 |
|
Datasheet | Radial | 0.015 µF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
R76PI31004030JCAP FILM 0.1UF 5% 630VDC RADIAL |
424 |
|
Datasheet | Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-FD2J335JCAP FILM 3.3UF 5% 630VDC RADIAL |
301 |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.996" L x 0.602" W (25.30mm x 15.30mm) | 0.815" (20.70mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
C4AQJBU4330M1WJCAP FILM 3.3UF 5% 700VDC RADIAL |
601 |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
