Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

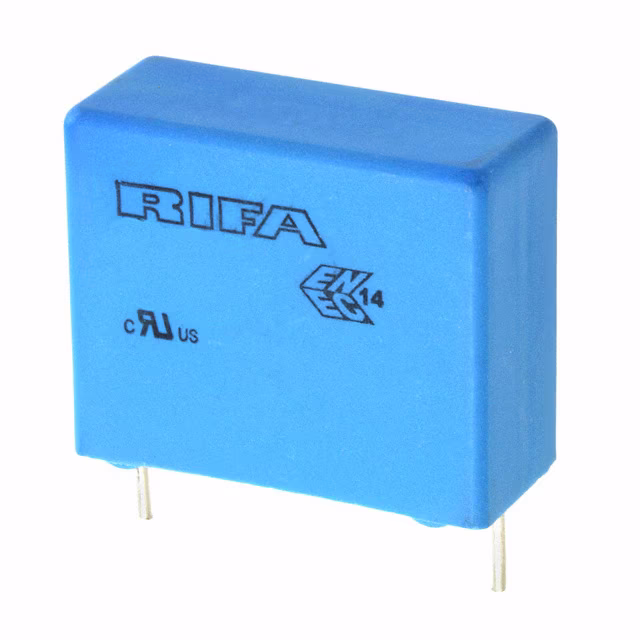

PHE844RD6220KR06L2CAP FILM 0.22UF 10% 1KVDC RADIAL |
682 |
|
Datasheet | Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R46KR422050P0MCAP FILM 2.2UF 20% 560VDC RADIAL |
270 |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FG1B225JCAP FILM 2.2UF 5% 1.1KVDC RAD |
150 |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
LDEMD2220JA5N00CAP FILM 0.022UF 5% 400VDC 2220 |
7,779 |
|
Datasheet | 2220 (5750 Metric) | 0.022 µF | ±5% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.098" (2.50mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECW-F4184HLCAP FILM 0.18UF 3% 400VDC RADIAL |
287 |
|
Datasheet | Radial | 0.18 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.323" W (15.50mm x 8.20mm) | 0.563" (14.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
C4AQJLU4330M11JCAP FILM 3.3UF 5% 700VDC RADIAL |
191 |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 16.8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R75QR33304000JCAP FILM 0.33UF 5% 1KVDC RADIAL |
158 |
|
Datasheet | Radial | 0.33 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
F43KI2470ZA01KCAP FILM 0.047UF 10% 275VAC RAD |
989 |
|
Datasheet | Radial | 0.047 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413N32204000MCAP FILM 0.22UF 20% 1KVDC RADIAL |
380 |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-F6334JLCAP FILM 0.33UF 5% 630VDC RADIAL |
332 |
|
Datasheet | Radial | 0.33 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.449" W (20.50mm x 11.40mm) | 0.756" (19.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
|
ECW-FG1B205JCAP FILM 2UF 5% 1.1KVDC RADIAL |
322 |
|
Datasheet | Radial | 2 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
R41BR322050T0KCAP FILM 0.22UF 10% 1.5KVDC RAD |
223 |
|
Datasheet | Radial | 0.22 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
PME261EB5470KR30CAP FILM 0.047UF 10% 630VDC RAD |
912 |
|
Datasheet | Radial | 0.047 µF | ±10% | 300V | 630V | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
|
ECW-HC3B124JACAP FILM 0.12UF 5% 1.25KVDC RAD |
303 |
|
Datasheet | Radial | 0.12 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.587" W (20.70mm x 14.90mm) | 0.921" (23.40mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
R60DI44704030KCAP FILM 4.7UF 10% 63VDC RADIAL |
260 |
|
Datasheet | Radial | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
|
ECW-F4204HLCAP FILM 0.2UF 3% 400VDC RADIAL |
934 |
|
Datasheet | Radial | 0.2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.339" W (15.50mm x 8.60mm) | 0.583" (14.80mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
|
C4AQQBU4140M1WJCAP FILM 1.4UF 5% 1.1KVDC RADIAL |
613 |
|
Datasheet | Radial | 1.4 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 25.9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECW-FG2J225KACAP FILM 2.2UF 10% 630VDC RADIAL |
480 |
|
Datasheet | Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
R75RN312050H3JCAP FILM 0.12UF 5% 1.25KVDC RAD |
356 |
|
Datasheet | Radial | 0.12 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 9.3 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75MR41504030JCAP FILM 1.5UF 5% 400VDC RADIAL |
163 |
|
Datasheet | Radial | 1.5 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
