Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDECD3330JA5N00CAP FILM 0.33UF 5% 50VDC 2220 |
206 |
|
Datasheet | 2220 (5750 Metric) | 0.33 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
ECW-F6563HLCAP FILM 0.056UF 3% 630VDC RAD |
184 |
|
Datasheet | Radial | 0.056 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.268" W (15.50mm x 6.80mm) | 0.500" (12.70mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
R75TR31004040JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
830 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | - | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
LDECD3270JA5N00CAP FILM 0.27UF 5% 50VDC 2220 |
10,832 |
|
Datasheet | 2220 (5750 Metric) | 0.27 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.075" (1.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
R75RN31004030JCAP FILM 0.1UF 5% 1.25KVDC RAD |
696 |
|
Datasheet | Radial | 0.1 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-H6334HCCAP FILM 0.33UF 3% 630VDC RADIAL |
658 |
|
Datasheet | Radial | 0.33 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.579" W (20.70mm x 14.70mm) | 0.831" (21.10mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
R60MN41505040JCAP FILM 1.5UF 5% 400VDC RADIAL |
619 |
|
Datasheet | Radial | 1.5 µF | ±5% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
ECW-H6304HCCCAP FILM 0.3UF 3% 630VDC RADIAL |
530 |
|
Datasheet | Radial | 0.3 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.583" W (20.70mm x 14.80mm) | 0.831" (21.10mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
R75PR4100AA30JCAP FILM 1UF 5% 630VDC RADIAL |
3,193 |
|
Datasheet | Radial | 1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
ECW-F6683HLCAP FILM 0.068UF 3% 630VDC RAD |
485 |
|
Datasheet | Radial | 0.068 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.291" W (15.50mm x 7.40mm) | 0.524" (13.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
ECW-F6274JLCAP FILM 0.27UF 5% 630VDC RADIAL |
375 |
|
Datasheet | Radial | 0.27 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.409" W (20.50mm x 10.40mm) | 0.717" (18.20mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
R76PN32204030JCAP FILM 0.22UF 5% 630VDC RADIAL |
300 |
|
Datasheet | Radial | 0.22 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECQ-E1565KFCAP FILM 5.6UF 10% 100VDC RADIAL |
4,015 |
|
Datasheet | Radial | 5.6 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.327" W (26.00mm x 8.30mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
R76QN31004030JCAP FILM 0.1UF 5% 1KVDC RADIAL |
877 |
|
Datasheet | Radial | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

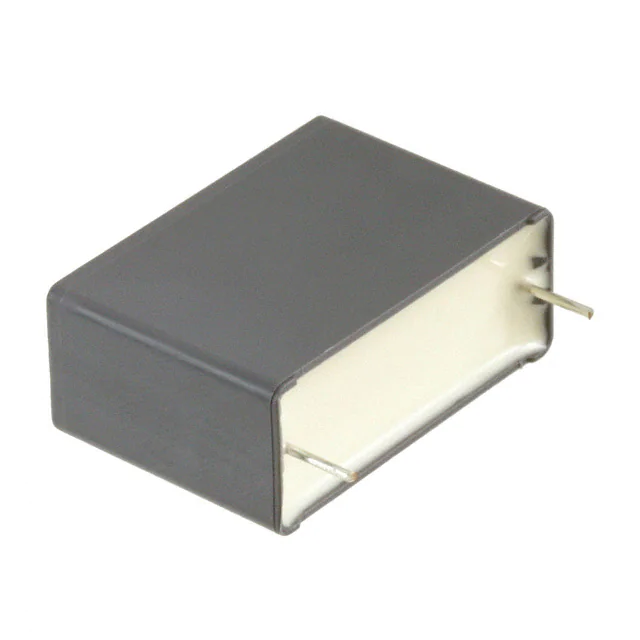

R73TR24704000JCAP FILM 0.047UF 5% 1.6KVDC RAD |
191 |
|
Datasheet | Radial | 0.047 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Straight 18x11.jpg)
|
ECW-F2185JACAP FILM 1.8UF 5% 250VDC RADIAL |
1,069 |
|
Datasheet | Radial | 1.8 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.449" W (18.80mm x 11.40mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-F6115HLCAP FILM 1.1UF 3% 630VDC RADIAL |
967 |
|
Datasheet | Radial | 1.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.642" W (28.00mm x 16.30mm) | 0.965" (24.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECW-HC3B104JACAP FILM 0.1UF 5% 1.25KVDC RAD |
400 |
|
Datasheet | Radial | 0.1 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.531" W (20.70mm x 13.50mm) | 0.811" (20.60mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|
ECW-F4474JLCAP FILM 0.47UF 5% 400VDC RADIAL |
999 |
|
Datasheet | Radial | 0.47 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R474R368050A1KV057CAP FILM 0.68UF 10% 1KVDC RADIAL |
792 |
|
Datasheet | Radial | 0.68 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
