Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E4155JFCAP FILM 1.5UF 5% 400VDC RADIAL |
1,030 |
|
Datasheet | Radial | 1.5 µF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.374" W (31.00mm x 9.50mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECW-F6184JLCAP FILM 0.18UF 5% 630VDC RADIAL |
513 |
|
Datasheet | Radial | 0.18 µF | ±5% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.386" W (18.00mm x 9.80mm) | 0.618" (15.70mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-F6105HLCAP FILM 1UF 3% 630VDC RADIAL |
386 |
|
Datasheet | Radial | 1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 0.937" (23.80mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECW-F4224JLCAP FILM 0.22UF 5% 400VDC RADIAL |
215 |
|
Datasheet | Radial | 0.22 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.354" W (15.50mm x 9.00mm) | 0.594" (15.10mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
PME271Y533MR30CAP FILM 0.033UF 20% 1KVDC RAD |
19,594 |
|
Datasheet | Radial | 0.033 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
R60EI43305030JCAP FILM 3.3UF 5% 100VDC RADIAL |
433 |
|
Datasheet | Radial | 3.3 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R586I282050T0KCAP FILM 600VAC(X1) 0.082 UF 10% |
329 |
|
Datasheet | Radial | 0.08 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
|
R586N310050T0KCAP FILM 600VAC(X1) 0.1 UF 10% |
277 |
|
Datasheet | Radial | 0.1 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

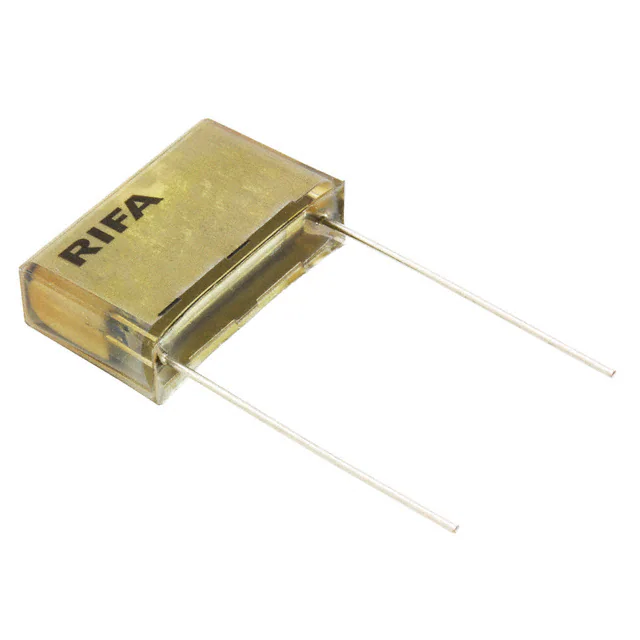

PME271YD5470MR30CAP FILM 0.047UF 20% 1KVDC RAD |
223 |
|
Datasheet | Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
R76QR318050H3JCAP FILM 0.18UF 5% 1KVDC RAD |
189 |
|
Datasheet | Radial | 0.18 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463R422040M2MCAP FILM 2.2UF 20% 630VDC RAD |
740 |
|
Datasheet | Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
 Series Straight 18x10.jpg)
|
ECW-F2155JACAP FILM 1.5UF 5% 250VDC RADIAL |
422 |
|
Datasheet | Radial | 1.5 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.413" W (18.80mm x 10.50mm) | 0.673" (17.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R41BN322050T0KCAP FILM 0.22UF 10% 1.5KVDC RAD |
197 |
|
Datasheet | Radial | 0.22 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
ECW-F4394JBCAP FILM 0.39UF 5% 400VDC RADIAL |
133 |
|
Datasheet | Radial | 0.39 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906" L x 0.531" W (23.00mm x 13.50mm) | 0.866" (22.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
.jpg)
|
ECH-U1H184GX9CAP FILM 0.18UF 2% 50VDC 2416 |
6,823 |
|
Datasheet | 2416 (6041 Metric) | 0.18 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.106" (2.70mm) | Solder Pads | - | General Purpose | - | - |
|
R46KR410000M1KCAP FILM 1UF 10% 560VDC RADIAL |
1,505 |
|
Datasheet | Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-U2563JC9CAP FILM 0.056UF 5% 250VDC 2416 |
1,214 |
|
Datasheet | 2416 (6041 Metric) | 0.056 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-F4244JLCAP FILM 0.24UF 5% 400VDC RADIAL |
978 |
|
Datasheet | Radial | 0.24 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.327" W (18.00mm x 8.30mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
F862DU105K310ZLH0JCAP FILM 1UF 10% 630VDC RADIAL |
4,384 |
|
Datasheet | Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
ECW-U1C394JC9CAP FILM 0.39UF 5% 16VDC 2416 |
3,755 |
|
Datasheet | 2416 (6041 Metric) | 0.39 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
