Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQQLU4150A11JCAP FILM 1.5UF 5% 1.1KVDC RADIAL |
470 |
|
Datasheet | Radial | 1.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 26 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECW-F4104JLCAP FILM 0.1UF 5% 400VDC RADIAL |
352 |
|
Datasheet | Radial | 0.1 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.256" W (15.50mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
|
ECW-F6823HLCAP FILM 0.082UF 3% 630VDC RAD |
1,040 |
|
Datasheet | Radial | 0.082 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.315" W (15.50mm x 8.00mm) | 0.547" (13.90mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
ECW-F6104HLCAP FILM 0.1UF 3% 630VDC RADIAL |
924 |
|
Datasheet | Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.303" W (18.00mm x 7.70mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
PHE844RD6150MR06L2CAP FILM 0.15UF 20% 1KVDC RADIAL |
867 |
|
Datasheet | Radial | 0.15 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-F6203HLBCAP FILM 0.02UF 3% 630VDC RADIAL |
262 |
|
Datasheet | Radial | 0.02 µF | ±3% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.563" (14.30mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
R60EI42204030KCAP FILM 2.2UF 10% 100VDC RADIAL |
224 |
|
Datasheet | Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
 Series.jpg)
|
ECW-FE2J225KCAP FILM 2.2UF 10% 630VDC RADIAL |
4,274 |
|
Datasheet | Radial | 2.2 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.630" W (26.00mm x 16.00mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Straight 18x9.jpg)
|
ECW-F2W125JACAP FILM 1.2UF 5% 450VDC RADIAL |
1,321 |
|
Datasheet | Radial | 1.2 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.382" W (18.80mm x 9.70mm) | 0.638" (16.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R75PR36804030JCAP FILM 0.68UF 5% 630VDC RADIAL |
323 |
|
Datasheet | Radial | 0.68 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R46KN415045P1MCAP FILM 1.5UF 20% 560VDC RADIAL |
185 |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-FG1B105JCAP FILM 1UF 5% 1.1KVDC RADIAL |
531 |
|
Datasheet | Radial | 1 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
R76IN4100SE30JCAP FILM 1UF 5% 250VDC RADIAL |
214 |
|
Datasheet | Radial | 1 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME261JC5470KR30CAP FILM 0.047UF 10% 1KVDC RAD |
113 |
|
Datasheet | Radial | 0.047 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.299" W (24.00mm x 7.60mm) | 0.551" (14.00mm) | PC Pins | 0.799" (20.30mm) | General Purpose | - | - |
|
R60GI42205030KCAP FILM 2.2UF 10% 160VDC RADIAL |
951 |
|
Datasheet | Radial | 2.2 µF | ±10% | 90V | 160V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R76TN310050H4JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
624 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 13 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75QN32204000JCAP FILM 0.22UF 5% 1KVDC RADIAL |
356 |
|
Datasheet | Radial | 0.22 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

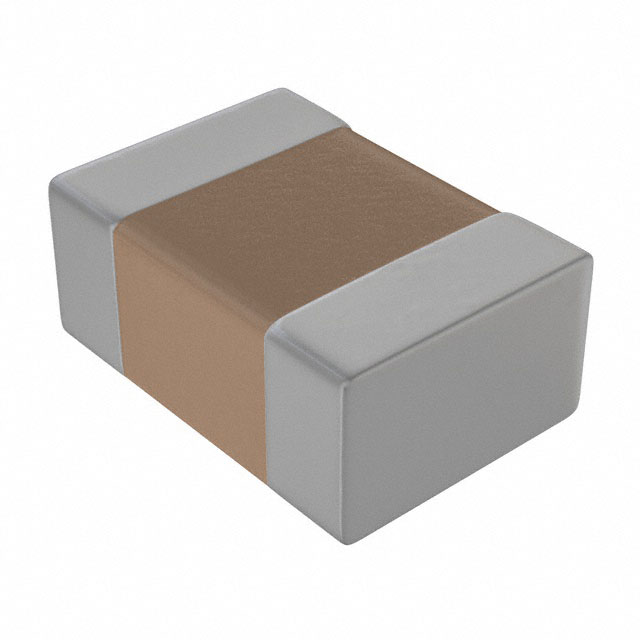

LDBCC3100GC5N0CAP FILM 0.1UF 2% 50VDC 1812 |
16,565 |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±2% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
 Series Straight 18x11.jpg)
|
ECW-F2W185JACAP FILM 1.8UF 5% 450VDC RADIAL |
9,979 |
|
Datasheet | Radial | 1.8 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.457" W (18.80mm x 11.60mm) | 0.717" (18.20mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECW-U1C274JC9CAP FILM 0.27UF 5% 16VDC 2416 |
7,418 |
|
Datasheet | 2416 (6041 Metric) | 0.27 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
