Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4274JLCAP FILM 0.27UF 5% 400VDC RADIAL |
4,925 |
|
Datasheet | Radial | 0.27 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.346" W (18.00mm x 8.80mm) | 0.587" (14.90mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
R46KN415000P1MCAP FILM 1.5UF 20% 560VDC RADIAL |
192 |
|
Datasheet | Radial | 1.5 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R463N410040H1MCAP FILM 1UF 20% 630VDC RADIAL |
180 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
LDEPD1220KA5N00CAP FILM 2200PF 10% 630VDC 2220 |
6,002 |
|
Datasheet | 2220 (5750 Metric) | 2200 pF | ±10% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.079" (2.00mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
SMR5104J100J03L16.5CBULKCAP FILM 0.1UF 5% 100VDC RADIAL |
690 |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
R75MR4100AA40KCAP FILM 1UF 10% 400VDC RADIAL |
536 |
|
Datasheet | Radial | 1 µF | ±10% | 220V | 400V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474N333050A1KV057CAP FILM 0.33UF 10% 1KVDC RADIAL |
393 |
|
Datasheet | Radial | 0.33 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
ECW-H6104HCCCAP FILM 0.1UF 3% 630VDC RADIAL |
1,055 |
|
Datasheet | Radial | 0.1 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.815" L x 0.339" W (20.70mm x 8.60mm) | 0.591" (15.00mm) | PC Pins | 0.689" (17.50mm) | General Purpose | - | - |
|

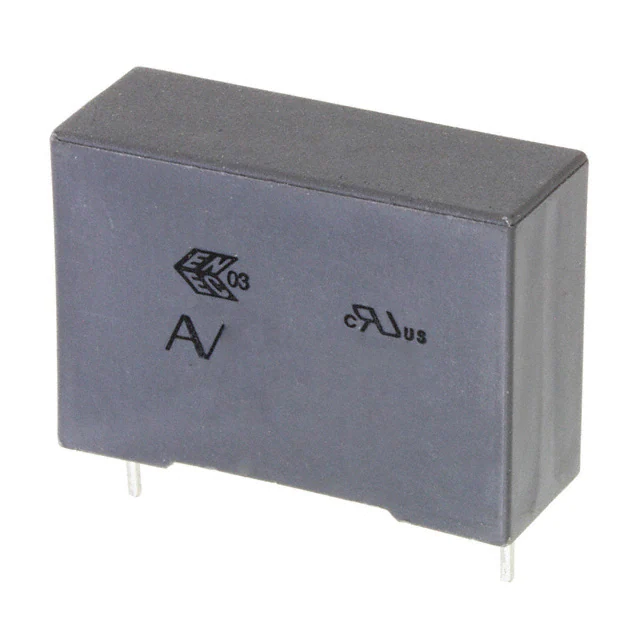

R49AN34700001MCAP FILM 0.47UF 20% 800VDC RAD |
538 |
|
Datasheet | Radial | 0.47 µF | ±20% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
ECW-FG2J105P1CAP FILM 1UF 5% 630VDC RADIAL |
524 |
|
Datasheet | Radial | 1 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.413" W (27.00mm x 10.50mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
F871DO474M330ZCAP FILM 0.47UF 20% 330VAC RAD |
1,168 |
|
Datasheet | Radial | 0.47 µF | ±20% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
F861DJ105M310ZCAP FILM 1UF 20% 630VDC RADIAL |
1,827 |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE844RD6100MR30L2CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,758 |
|
Datasheet | Radial | 0.1 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
PHE844RD6100MR06L2CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,756 |
|
Datasheet | Radial | 0.1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
 Series.jpg)
|
ECW-FE2W475KCAP FILM 4.7UF 10% 450VDC RADIAL |
1,291 |
|
Datasheet | Radial | 4.7 µF | ±10% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R474N32205001KCAP FILM 0.22UF 10% 1KVDC RADIAL |
1,133 |
|
Datasheet | Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECQ-E12104KFCAP FILM 0.1UF 10% 1.25KVDC RAD |
1,000 |
|
Datasheet | Radial | 0.1 µF | ±10% | - | 1250V (1.25kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.394" W (31.00mm x 10.00mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PHE845VD5220MR30L2CAP FILM 0.022UF 20% 1.5KVDC RAD |
596 |
|
Datasheet | Radial | 0.022 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
PHE840MY6680MD15R06L2CAP FILM 0.68UF 20% 760VDC RAD |
557 |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
P295BL252M500ACAP FILM 2500PF 20% 500VAC RAD |
375 |
|
Datasheet | Radial | 2500 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
