Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R586I256050T0KCAP FILM 600VAC(X1) 0.056 UF 10% |
443 |
|
Datasheet | Radial | 0.056 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.642" (16.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

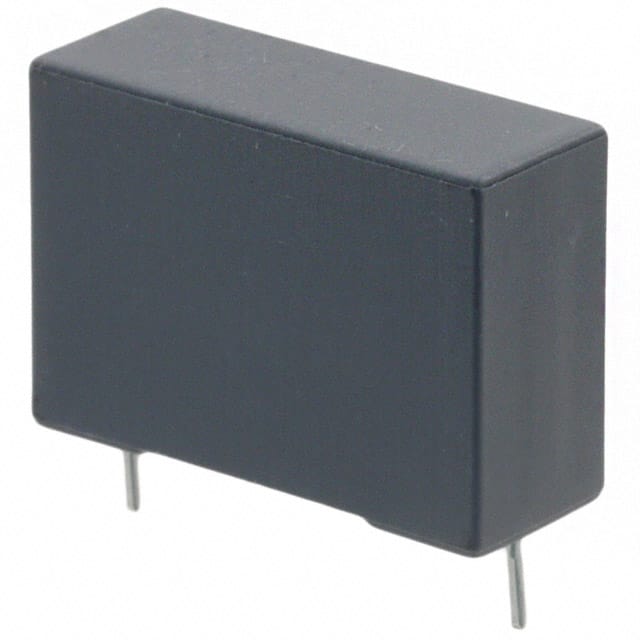

R60IN4220AA30KCAP FILM 2.2UF 10% 250VDC RADIAL |
262 |
|
Datasheet | Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R46KR415040M1KCAP FILM 1.5UF 10% 560VDC RADIAL |
226 |
|
Datasheet | Radial | 1.5 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F4563JLCAP FILM 0.056UF 5% 400VDC RAD |
111 |
|
Datasheet | Radial | 0.056 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.260" W (12.50mm x 6.60mm) | 0.429" (10.90mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
PME271M447MR30CAP FILM 4700PF 20% 275VAC RAD |
1,208 |
|
Datasheet | Radial | 4700 pF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | X2 | - |
|
R75II41004040JCAP FILM 1UF 5% 250VDC RADIAL |
396 |
|
Datasheet | Radial | 1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME271M533MR30CAP FILM 0.033UF 20% 275VAC RAD |
374 |
|
Datasheet | Radial | 0.033 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.492" (12.50mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
R71XI422050H0KFILM, RADIAL, PULSE, SINGLE META |
344 |
|
Datasheet | Radial | 2.2 µF | ±10% | 160V | 450V | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R533I382050P0MCAP FILM 0.82UF 20% 630VDC RAD |
227 |
|
Datasheet | Radial | 0.82 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R73TN21504000JCAP FILM 0.015UF 5% 1.6KVDC RAD |
223 |
|
Datasheet | Radial | 0.015 µF | ±5% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60EN42205030KCAP FILM 2.2UF 10% 100VDC RADIAL |
162 |
|
Datasheet | Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R46KI3470DQ02MCAP FILM 0.47UF 20% 560VDC RAD |
450 |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R75TR310050H4JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
330 |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 11.1 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R73UN16804000JCAP FILM 6800PF 5% 2KVDC RADIAL |
916 |
|
Datasheet | Radial | 6800 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEEA2150JA0N00CAP FILM 0.015UF 5% 100VDC 1206 |
16,832 |
|
Datasheet | 1206 (3216 Metric) | 0.015 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.047" (1.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME271MB6100MR30CAP FILM 0.1UF 20% 275VAC RADIAL |
1,098 |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.335" W (18.50mm x 8.50mm) | 0.563" (14.30mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | X2 | - |
|
R75UN24704030JCAP FILM 0.047UF 5% 2KVDC RADIAL |
690 |
|
Datasheet | Radial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
PME271YB5150MR30CAP FILM 0.015UF 20% 1KVDC RAD |
979 |
|
Datasheet | Radial | 0.015 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.728" L x 0.217" W (18.50mm x 5.50mm) | 0.433" (11.00mm) | PC Pins | 0.598" (15.20mm) | EMI, RFI Suppression | Y2 | - |
|
R71VN41504030KCAP FILM 1.5UF 10% 520VDC RADIAL |
642 |
|
Datasheet | Radial | 1.5 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
|
ECW-F4753JLCAP FILM 0.075UF 5% 400VDC RAD |
985 |
|
Datasheet | Radial | 0.075 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.512" L x 0.287" W (13.00mm x 7.30mm) | 0.457" (11.60mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
