Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE450PD5470JR06L2CAP FILM 0.047UF 5% 1KVDC RADIAL |
832 |
|
Datasheet | Radial | 0.047 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
C4AQQLU4250A12JCAP FILM 2.5UF 5% 1.1KVDC RADIAL |
266 |
|
Datasheet | Radial | 2.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 16.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R586N322050T0KCAP FILM 600VAC(X1) 0.22 UF 10% |
166 |
|
Datasheet | Radial | 0.22 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.799" (20.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

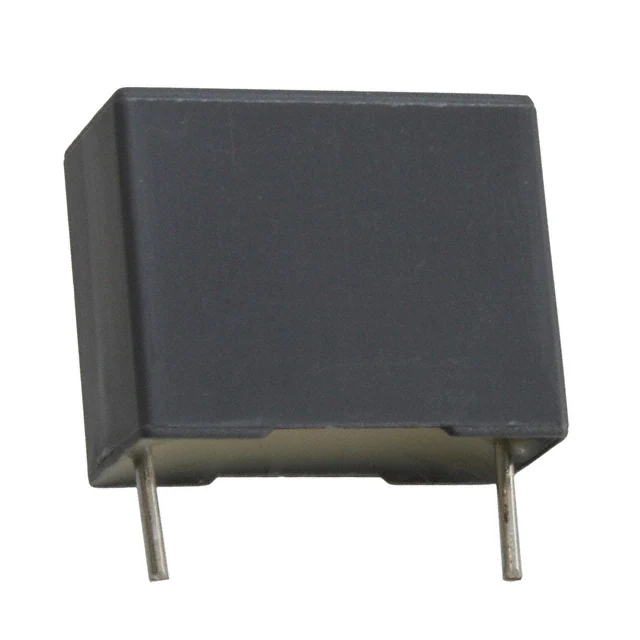

R60DI4470AA30JCAP FILM 4.7UF 5% 63VDC RADIAL |
541 |
|
Datasheet | Radial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R463R422050H7KCAP FILM 2.2UF 10% 630VDC RADIAL |
527 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
ECW-FG80225JCAP FILM 2.2UF 800VDC RADIAL |
230 |
|
Datasheet | Radial | 2.2 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
F863FL225K310ALW0LCAP FILM 2.2UF 10% 630VDC RADIAL |
108 |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
C4AQLLU4560A11KCAP FILM 5.6UF 10% 500VDC RADIAL |
206 |
|
Datasheet | Radial | 5.6 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 12.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.827" W (32.00mm x 21.00mm) | 0.500" (12.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
ECW-F6304HLCAP FILM 0.3UF 3% 630VDC RADIAL |
953 |
|
Datasheet | Radial | 0.3 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.429" W (20.50mm x 10.90mm) | 0.736" (18.70mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
|
ECW-F6244HLCAP FILM 0.24UF 3% 630VDC RADIAL |
559 |
|
Datasheet | Radial | 0.24 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.685" (17.40mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2W155KHCAP FILM 1.5UF 10% 450VDC RADIAL |
473 |
|
Datasheet | Radial | 1.5 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.012" L x 0.323" W (25.70mm x 8.20mm) | 0.677" (17.20mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | - | - |
|
|
ECW-F4474HLCAP FILM 0.47UF 3% 400VDC RADIAL |
563 |
|
Datasheet | Radial | 0.47 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.441" W (18.00mm x 11.20mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
C4AQIBU4400M1XJCAP FILM 4UF 5% 800VDC RADIAL |
682 |
|
Datasheet | Radial | 4 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 12.9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R71PN433050H6KFILM, RADIAL, PULSE, SINGLE META |
121 |
|
Datasheet | Radial | 3.3 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R474R32205001KCAP FILM 0.22UF 10% 1KVDC RADIAL |
336 |
|
Datasheet | Radial | 0.22 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
LDEED3470JA0N00CAP FILM 0.47UF 5% 100VDC 2220 |
1,976 |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME271YC5470MR30CAP FILM 0.047UF 20% 1KVDC RAD |
629 |
|
Datasheet | Radial | 0.047 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
|
C4AQNLU4250M12JCAP FILM 2.5UF 5% 1KVDC RADIAL |
211 |
|
Datasheet | Radial | 2.5 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 16.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
LDEID3100JA0N00CAP FILM 0.1UF 5% 250VDC 2220 |
4,408 |
|
Datasheet | 2220 (5750 Metric) | 0.1 µF | ±5% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.161" (4.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
ECW-F4514HLCAP FILM 0.51UF 3% 400VDC RADIAL |
328 |
|
Datasheet | Radial | 0.51 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.807" L x 0.406" W (20.50mm x 10.30mm) | 0.720" (18.30mm) | PC Pins | 0.689" (17.50mm) | High Frequency, Switching | - | - |
