Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD-FXTOF1-EBZADDI9036 CAMERA MODULE KIT |
1 |
|
Datasheet | - | Bulk | Active | Light, 3D Time-of-Flight (ToF) | 3m | - | - | 5V | No | Board(s), Cable(s) | ADDI9036 |
|
HEDS-9955PRGEVBAEAT-9955 PROG KIT EVAL BOARD |
3 |
|
- |
HEDS | Bulk | Active | Magnetic, Rotary Position | - | Digital | - | 3.3V ~ 5V | No | Board(s) | AEAT-9955 |
|
EV-RADAR-MMIC2EVAL BRD ADF4159 ADF5901 ADF5904 |
3 |
|
Datasheet | - | Box | Active | Radar | - | - | 24GHz | 5V, ±9V | - | Board(s) | ADF4159, ADF5901, ADF5904 |
|
VL6180-SATELVL6180 BREAKOUT BOARD |
35 |
|
Datasheet | FlightSense™ | Bulk | Active | Light, 3D Time-of-Flight (ToF) | - | I2C, Serial | - | 3.3V ~ 10V | - | Board(s) | VL6180 |
|
VD6283TX-SATELVD6283 BREAKOUT BOARD 6-CHANNEL |
16 |
|
Datasheet | - | Bulk | Active | Light, Ambient | - | I2C | - | 1.8V ~ 5V | No | Board(s) | VD6283 |
|
EVAL-ADT7320MBZMINI TEMP SENSOR BRD |
5 |
|
- |
- | Bulk | Active | Temperature | - | SPI | ±0.25°C | - | No | Board(s) | ADT7320 |
|
EVAL-ADT7420MBZMINI TEMP SENSOR BRD |
1 |
|
- |
- | Bulk | Active | Temperature | - | I2C | ±0.25°C | - | No | Board(s) | ADT7420 |
|
BRKTSTBC-A8471BREAKOUT BOARD FOR FXLS8471Q |
13 |
|
Datasheet | - | Bulk | Active | Accelerometer, 3 Axis | ±2g, 4g, 8g | I2C, Serial, SPI | 4096 count/g, 2048 count/g, 1024 count/g | 1.95V ~ 3.6V | - | Board(s) | FXLS8471Q |
|
TLE493DP2B6MS2GOTOBO1TLE493D-P2B6MS2GO KIT |
7 |
|
Datasheet | XENSIV™ | Bulk | Active | Magnetic, Hall Effect | ±160mT | I2C | 15.4LSB/mT, 7.7LSB/mT | 2.8V ~ 3.5V | Yes, MCU, 32-Bit | Board(s) | TLE493D-P2B6, XMC1100 |
|
EVALZ-ADPD2211EVAL BOARD FOR ADPD2211 |
1 |
|
Datasheet | - | Bulk | Active | Light, Current Output | - | Analog | - | 1.8V ~ 5V | - | Board(s) | ADPD2211 |
|
KXTJ3-1057-EVK-002EVAL BOARD FOR KXTJ3-1057 |
12 |
|
Datasheet | - | Bulk | Active | Accelerometer, 3 Axis | ±2g, 4g, 8g, 16g | I2C, Serial | - | 1.71V ~ 3.6V | - | Board(s), Cable(s) | KXTJ3-1057 |
|

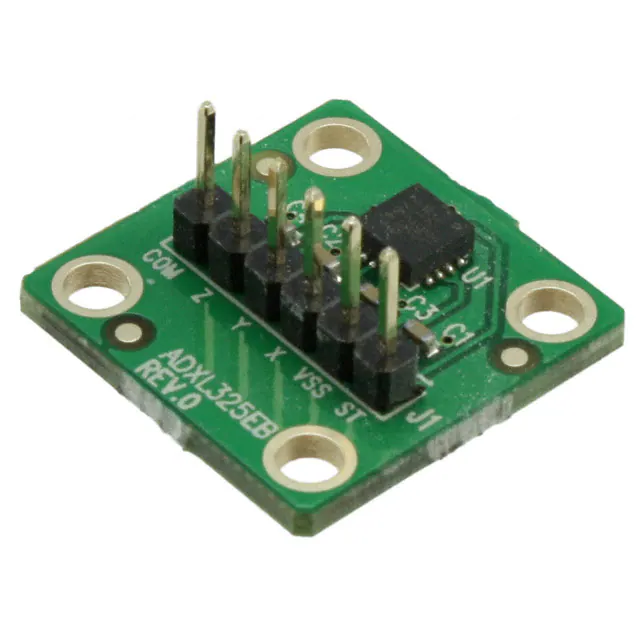

EVAL-ADXL325ZBOARD EVAL ADXL325 |
1 |
|
Datasheet | iMEMS® | Box | Active | Accelerometer, 3 Axis | ±6g | Analog | 174mV/g | 1.8V ~ 3.6V | No | Board(s) | ADXL325 |
|

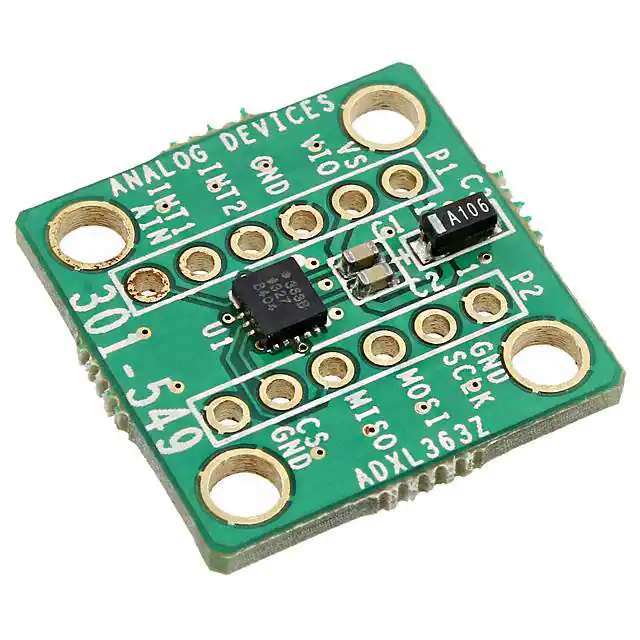

EVAL-ADXL363ZBOARD EVAL FOR ADXL363Z |
1 |
|
Datasheet | - | Box | Active | Accelerometer, Temperature | ±2g, 4g, 8g | Serial, SPI | - | 1.6V ~ 3.5V | - | Board(s) | ADXL363 |
|

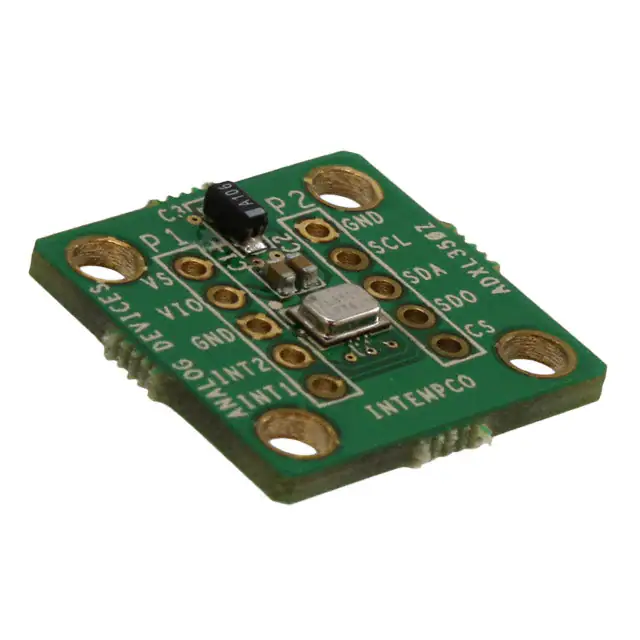

EVAL-ADXL350ZBOARD EVAL STAMP ADXL350 |
2 |
|
Datasheet | iMEMS® | Box | Active | Accelerometer, 3 Axis | ±1g, 2g, 4g, 8g | I2C, Serial, SPI | 512LSB/g, 256LSB/g, 128LSB/g, 64LSB/g | 2V ~ 3.6V | No | Board(s) | ADXL350 |
|
RD-KL25-AGMP01DATA COLLECTION REFERENCE DESIGN |
16 |
|
Datasheet | - | Bulk | Active | Accelerometer, Gyroscope, Electronic Compass, Pressure, Temperature | - | - | - | - | Yes, MCU, 32-Bit | Board(s), Cable(s) | BC3770, FXAS21002, FXOS8700CQ, K20, KL25Z, MPL3115A2 |
|
DM160227LOW COST MTOUCH EVALUATION KIT |
11 |
|
Datasheet | mTouch™ | Bulk | Active | Touch, Capacitive | 5 Buttons/Keys | I2C | - | 5V, USB | Yes, MCU, 8-Bit | Board(s), Cable(s) | PIC16LF1559 |
|
SI72XX-EVAL-KITSI72XX HALL EFFECT MAGNETIC SENS |
7 |
|
Datasheet | - | Bulk | Active | Hall Effect | - | - | - | - | - | Board(s) | Si72xx |
|
P-NUCLEO-6180A1NUCLEO PACK F401RE/VL6180 |
11 |
|
Datasheet | FlightSense™ | Bulk | Active | Light, 3D Time-of-Flight (ToF) | - | I2C, Serial | - | - | Yes, MCU, 32-Bit | Board(s) | STM32F401RE, VL6180 |
|
TMPSNSRD-RTD2RTD REF DESIGN |
4 |
|
Datasheet | - | Box | Active | Temperature, RTD (Resistance Temperature Device) | - | USB | - | - | No | Board(s), Cable(s) | MCP3551, MCP9804 |
|

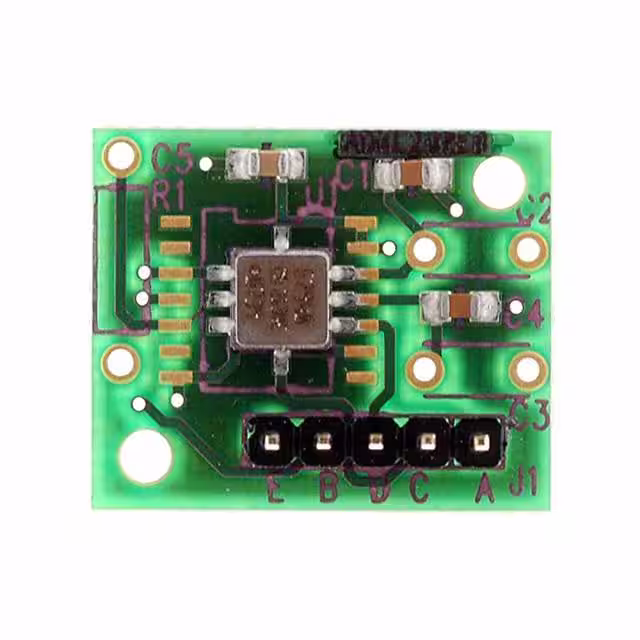

ADXL213EBBOARD EVALUATION FOR ADXL213 |
4 |
|
Datasheet | iMEMS® | Box | Active | Accelerometer, 2 Axis | ±1.2g | PWM | - | 3V ~ 6V | No | Board(s) | ADXL213 |
