Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LXE3302ARD001LX3302A 90 DEGREE ROTARY EVB |
3 |
|
Datasheet | - | Bulk | Active | Proximity, Inductive | - | - | - | - | Yes | Board(s) | LX3302A |
|
LXE3301AR001EVAL BOARD ROTARY LX3301A |
2 |
|
Datasheet | - | Bulk | Active | Proximity, Inductive | - | - | - | 4.5V ~ 5.6V | Yes, MCU, 32-Bit | Board(s) | LX3301A |
|
HS4100-EVKTEMP/HUMIDITY EVAL KIT ANALOG |
23 |
|
- |
- | Box | Active | Humidity, Temperature | 0 ~ 100% RH | Analog | - | 1.71V ~ 3.6V | Yes | Board(s), Cable(s) | HS41xx |
|
LXE3302AR009LX3302A 360DEG R BD W MIKROBUS |
3 |
|
- |
- | Bulk | Active | Proximity, Inductive | - | - | - | 4V ~ 6V | Yes, MCU, 32-Bit | Board(s) | LX3302A |
|
CY8CKIT-024DEV KIT PROXIMITY SHIELD PSOC 4 |
4 |
|
Datasheet | PSOC™ CAPSENSE™ | Bulk | Active | Proximity | - | - | - | - | - | Board(s) | PSoC® 4 |
|
TMP709EVMEVAL MODULE FOR TMP709 |
2 |
|
Datasheet | - | Box | Active | Thermostat | 0°C ~ 125°C | Analog | ±3°C | 2.7V ~ 5.5V | No | Board(s) | TMP709 |
|
EVAL-ADXRS623ZBOARD EVAL FOR ADXRS623 |
2 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±150°/sec | Analog | 12.5mV/°/sec | 4.75V ~ 5.25V | - | Board(s) | ADXRS623 |
|

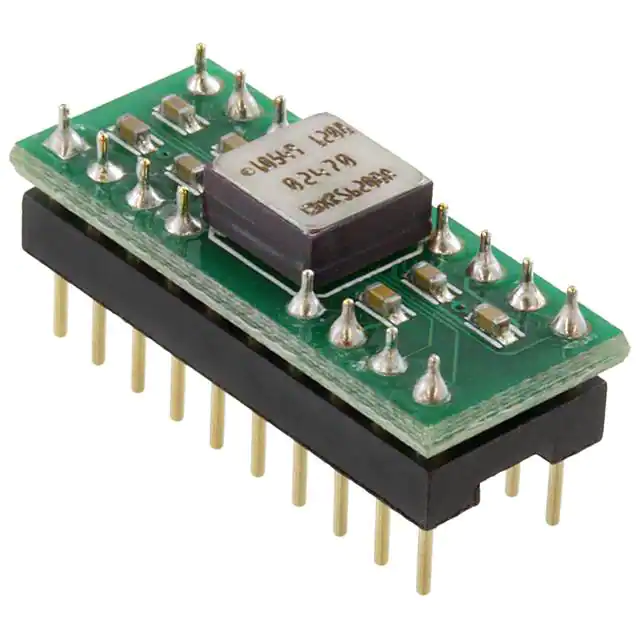

EVAL-ADXRS620ZBOARD EVAL FOR ADXRS620 |
1 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | Analog | 6mV/°/s | 4.75V ~ 5.25V | - | Board(s) | ADXRS620 |
|

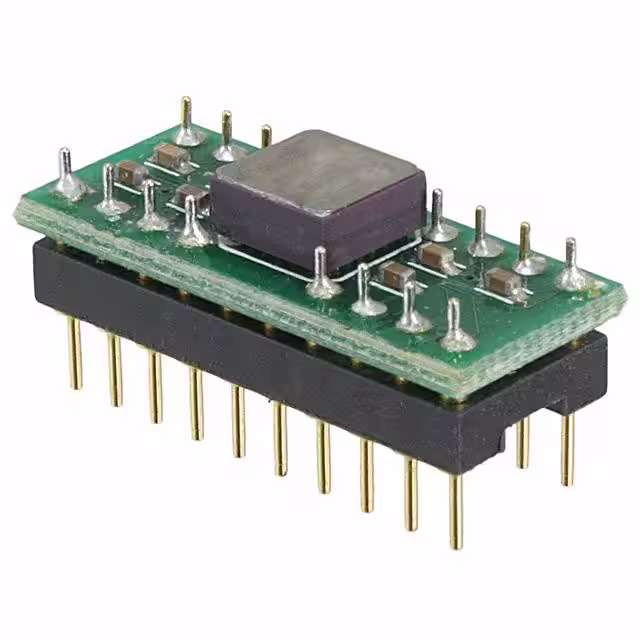

EVAL-ADXRS652ZBOARD EVAL FOR ADXRS652 |
1 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | Analog | 7mV/°/sec | 4.75V ~ 5.25V | No | Board(s) | ADXRS652 |
|
EVAL-AD7150EBZBOARD EVAL FOR AD7150 |
1 |
|
Datasheet | - | Box | Active | Touch, Capacitive | - | I2C | - | 2.7V ~ 3.6V | No | Board(s) | AD7150 |
|
EV86J15ALX34211 360 DEGREE ROTARY EVB |
3 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | Board(s) | LX34211 |
|
EVAL-CN0537-ARDZSMOKE DETECTOR |
8 |
|
Datasheet | Circuits from the Lab™ | Bulk | Active | Smoke | - | - | - | 3.3V ~ 5V | Yes | Board(s) | ADPD188BI |
|
HDC2080EVMDEVELOPMENT INTERFACE |
2 |
|
Datasheet | - | Bulk | Active | Humidity, Temperature | - | I2C, Serial | - | 5V, USB | Yes, MCU, 16-Bit | Board(s) | HDC2080 |
|
TMCS1108EVMTMCS1108 ISOLATED HALL-EFFECT CU |
2 |
|
Datasheet | - | Box | Active | Current Sensor | - | - | - | 3V ~ 5.5V | No | Board(s) | TMCS1108 |
|
EVAL-ADXRS450ZBOARD STAMP ADXRS450 SOIC |
1 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | SPI | 80LSB/°/s | 3.15V ~ 5.25V | - | Board(s) | ADXRS450 |
|
SI7051-EVBEVALUALTION BOARD FOR SI7051 |
2 |
|
Datasheet | - | Box | Active | Temperature | - | - | - | - | - | Board(s) | Si7051 |
|
EVAL-AD7156EBZBOARD EVAL FOR AD7156 |
2 |
|
Datasheet | - | Box | Active | Touch, Capacitive | - | I2C | - | 1.8V ~ 3.6V | No | Board(s) | AD7156 |
|
EVAL-ADXL313-ZBREAKOUT BOARD |
5 |
|
Datasheet | - | Box | Active | Accelerometer, 3 Axis | ±0.5g, 1g, 2g, 4g | I2C, Serial, SPI | 1024LSb/g | 2V ~ 3.6V | - | Board(s) | ADXL313 |
|
DM160222BOARD EVAL CAP1188 |
15 |
|
Datasheet | RightTouch™ | Box | Active | Touch, Capacitive | 7 Buttons/Keys, Slider | USB | - | 5V, USB | Yes, MCU, 8-Bit | Board(s), Cable(s) | CAP1188 |
|
PIC16F690DM-PCTLHSBOARD DEMO PICTAIL HUMIDITY SNSR |
2 |
|
Datasheet | PICtail™ | Bulk | Active | Humidity | 1 ~ 99% RH | Analog | - | 5V | Yes, MCU, 8-Bit | Board(s) | MCP6291, PIC16F690 |
