Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KX132-1211-EVK-001EVAL BOARD FOR KX132-1211 |
13 |
|
Datasheet | - | Box | Active | Accelerometer, 3 Axis | ±2g, 4g, 8g, 16g | I2C, Serial, SPI | - | 1.71V ~ 3.6V | No | Board(s) | KX132-1211 |
|
KX134-1211-EVK-001EVAL BOARD FOR KX134-1211 |
10 |
|
Datasheet | - | Bulk | Active | Accelerometer, 3 Axis | ±8g, 16g, 32g, 64g | I2C, Serial, SPI | - | 1.71V ~ 3.6V | No | Board(s) | KX134-1211 |
|

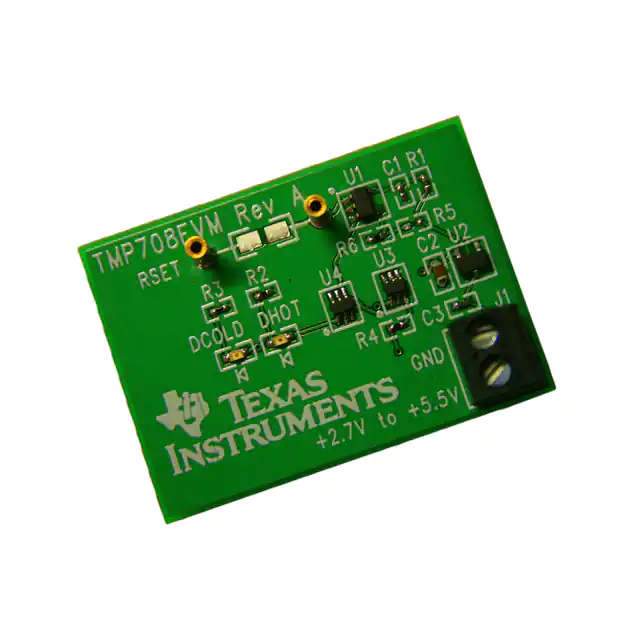

TMP708EVMEVAL MODULE FOR TMP708 |
6 |
|
Datasheet | - | Box | Active | Thermostat | 0°C ~ 125°C | Analog | ±3°C | 2.7V ~ 5.5V | No | Board(s) | TMP708 |
|
DM160221BOARD DEMO FOR MTCH112 |
2 |
|
Datasheet | - | Bulk | Active | Proximity | - | - | - | - | - | Board(s) | MTCH112 |
|
TLE5309EVALKITTOBO1TLE5309 EVAL KIT |
3 |
|
Datasheet | - | Bulk | Active | Magnetic, GMR (Giant Magnetoresistive) | 360° | - | 0.1° | 3V ~ 3.6V | Yes, MCU, 32-Bit | Board(s) | TLE5309, XMC4700 |
|
TLE5009EVALKITTOBO2TLE5009 EVAL KIT |
3 |
|
Datasheet | - | Bulk | Active | Magnetic, GMR (Giant Magnetoresistive) | 360° | - | 0.6° | 3V ~ 3.6V | Yes, MCU, 32-Bit | Board(s) | TLE5009, XMC4700 |
|
TLE5109EVALKITTOBO2TLE5109 EVAL KIT |
2 |
|
Datasheet | - | Bulk | Active | Magnetic, AMR (Anisotropic Magnetoresistive) | 180° | - | 0.1° | 3V ~ 3.6V | Yes, MCU, 32-Bit | Board(s) | TLE5109, XMC4700 |
|
P-NUCLEO-6283A1NUCLEO PACK F401RE/VD6283 |
17 |
|
Datasheet | - | Bulk | Active | Light, Ambient | - | I2C, Serial | - | - | No | Board(s) | STM32F401RE, VD6283 |
|
TMAG5110-5111EVMEVAL BOARD TMAG5110 TMAG5111 |
6 |
|
Datasheet | - | Box | Active | Hall Effect | - | Digital | - | 2.5V ~ 38V | No | Board(s), Cable(s), Accessories | TMAG5110, TMAG5111 |
|
TMP114EVMEVAL BOARD FOR TMP114 |
4 |
|
Datasheet | - | Box | Active | Temperature | -40°C ~ 125°C | I2C | ±1°C | 1.4V ~ 3.6V | Yes, MCU, 16-Bit | Board(s) | TMP114 |
|

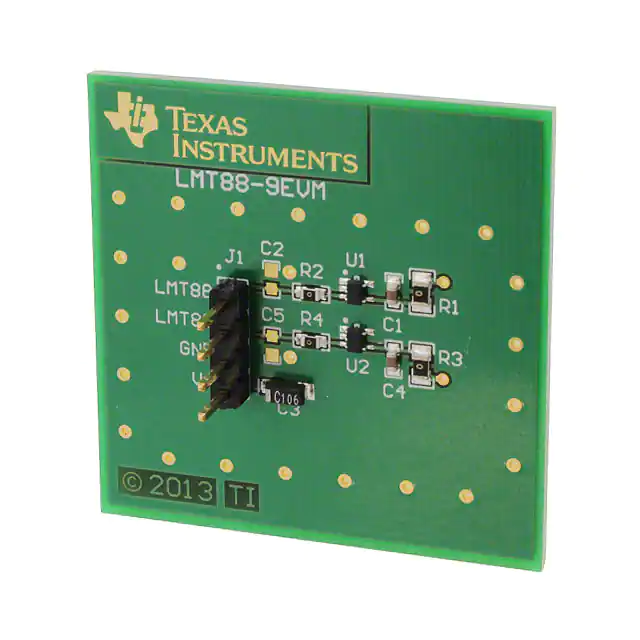

LMT88-9EVMEVAL MODULE FOR LMT88-9 |
2 |
|
Datasheet | - | Box | Active | Temperature | -55°C ~ 130°C | Analog | ±1.5°C | 2.7V ~ 5.5V | No | Board(s) | LMT88, LMT89 |
|

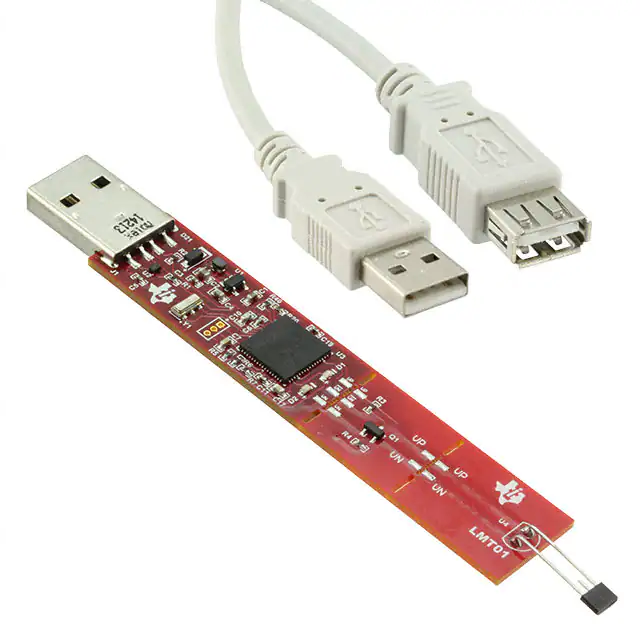

LMT01EVMEVAL BOARD FOR LMT01 |
2 |
|
Datasheet | - | Box | Active | Temperature | -50°C ~ 150°C | Digital | ±0.5°C | 5V, USB | Yes, MCU, 16-Bit | Board(s) | LMT01 |
|

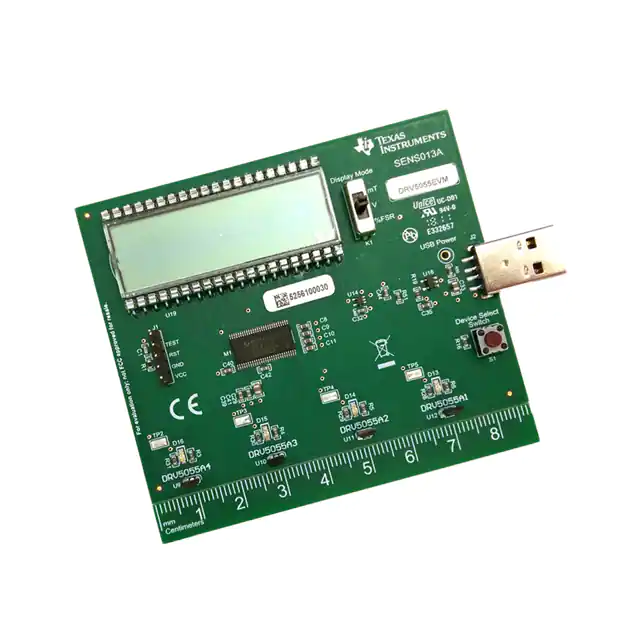

DRV5055EVMEVAL MODULE FOR DRV5055 |
2 |
|
Datasheet | - | Bulk | Active | Hall Effect | - | - | - | - | - | Board(s), Cable(s), Accessories | DRV5055 |
|
TMP6EVMDEVELOPMENT POWER MANAGEMENT |
2 |
|
Datasheet | - | Box | Active | Temperature | - | Analog and Digital | - | 3V, 5V | Yes, MCU, 16-Bit | Board(s), Cable(s) | TMP116, TMP6xxx |
|

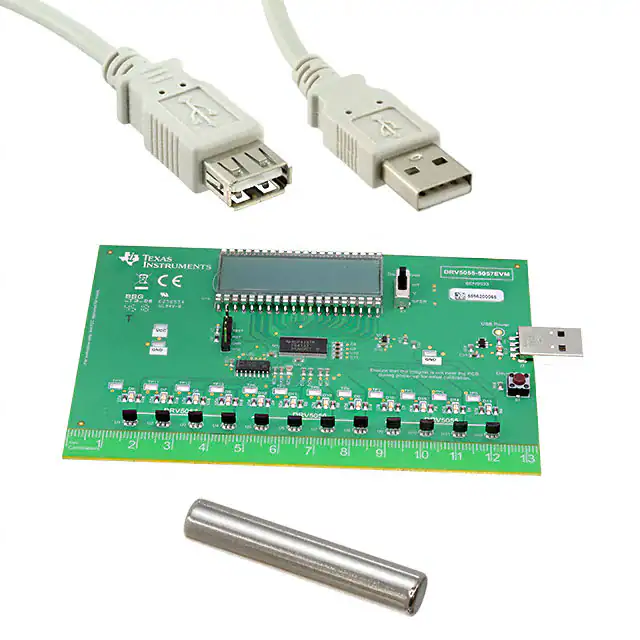

DRV5055-5057EVMHALL EFFECT SENSOR |
2 |
|
Datasheet | - | Box | Active | Hall Effect | - | - | - | 5V, USB | Yes, MCU, 16-Bit | Board(s), Cable(s), Accessories | DRV5055, DRV5056, DRV5057 |
|
TMAG5123EVMTMAG5123 IN-PLANE HIGH-PRECISION |
2 |
|
Datasheet | - | Box | Active | Magnetic, Hall Effect | - | USB | - | 2.5V ~ 38V | - | Board(s) | TMAG5123 |
|

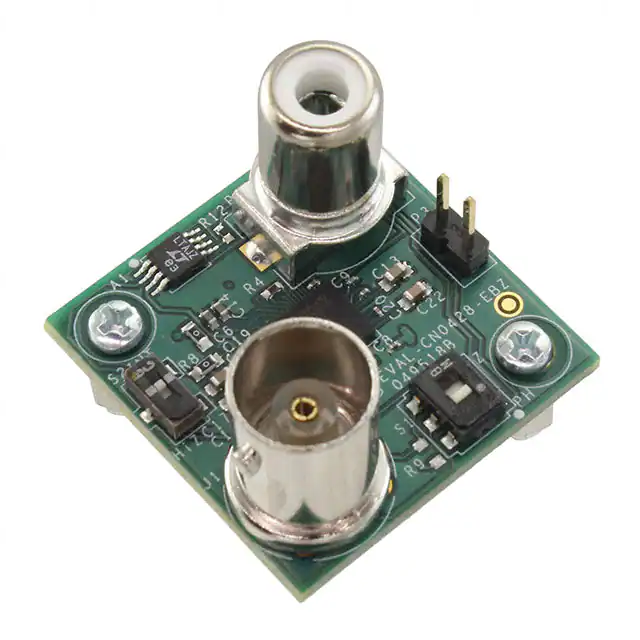

EVAL-CN0428-EBZADUCM355 WATER QUALITY SENSOR |
10 |
|
Datasheet | Circuits from the Lab™ | Bulk | Active | Water Quality (pH) | - | - | - | - | Yes, MCU, 32-Bit | Board(s) | ADuCM355, LTC6078 |
|
TLE5501EVALKITTOBO1EVAL TLE5501 ANGLE SENSOR |
3 |
|
Datasheet | - | Bulk | Active | Magnetic, Rotary Position | 360° | - | - | - | Yes, MCU, 32-Bit | Board(s) | TLE5501 |
|
LXE3302AR001LX3302A ROTARY EVB |
3 |
|
Datasheet | - | Bulk | Active | Proximity, Inductive | - | - | - | 4.5V ~ 5.6V | Yes, MCU, 32-Bit | Board(s) | LX3302A |
|
LXE3301AL003EVAL BOARD LINEAR LX3301A |
3 |
|
Datasheet | - | Bulk | Active | Proximity, Inductive | - | - | - | 4.5V ~ 5.6V | Yes, MCU, 32-Bit | Board(s) | LX3301A |
