Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

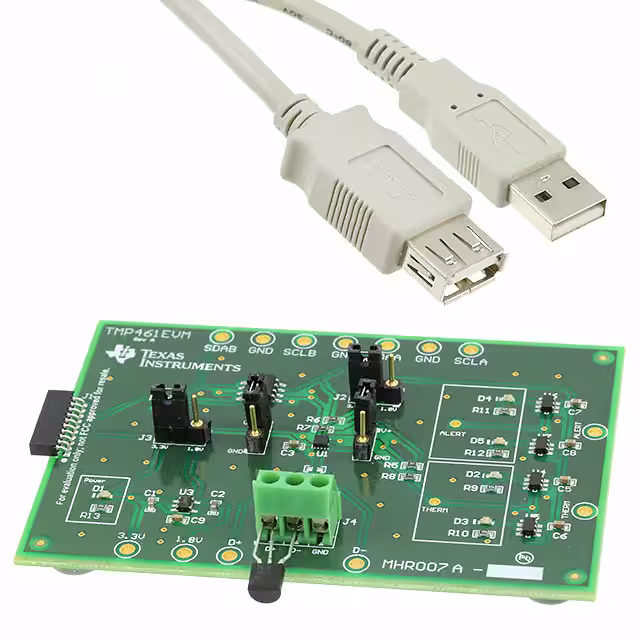

TMP461EVMEVAL MODULE TMP461 |
8 |
|
Datasheet | - | Box | Active | Temperature | - | I2C | ±1°C | 3.3V | Yes, MCU, 8-Bit | Board(s), Cable(s) | TMP461 |
|
EVAL-ADXRS649ZBOARD EVAL FOR ADXRS649Z |
7 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±20000°/sec | Analog | 0.1mV/°/s | 4.75V ~ 5.25V | No | Board(s) | ADXRS649 |
|

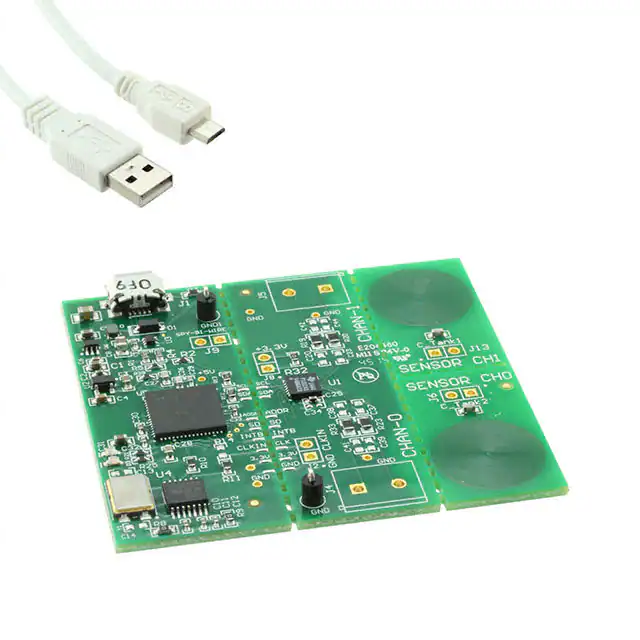

LDC1312EVMEVAL MODULE FOR LDC1312 |
6 |
|
Datasheet | - | Box | Active | Proximity, Inductive | - | USB | - | 5V, USB | Yes, MCU, 16-Bit | Board(s) | LDC1312 |
|
OPT4048DTSEVMOPT4048 EVALUATION MODULE FOR HI |
5 |
|
Datasheet | - | Box | Active | Light, Ambient | - | I2C | - | 1.6V ~ 3.6V | Yes, MCU | Board(s) | OPT4048 |
|
|
OPT4001DTSEVMEVAL BOARD FOR OPT4001 |
2 |
|
Datasheet | - | Box | Active | Light, Ambient | - | I2C | - | 1.6V ~ 3.6V | Yes, MCU | Board(s), Cable(s) | OPT4001 |
|
|
OPT4003DNPQ1EVMOPT4003-Q1 EVALUATION MODULE FOR |
2 |
|
Datasheet | - | Box | Active | Light, Ambient | - | I2C | - | 1.6V ~ 3.6V | Yes, MCU | Board(s) | OPT4003 |
|
EVAL-ADXRS646ZEVAL BOARD FOR ADXRS646 |
13 |
|
Datasheet | - | Box | Active | Gyroscope, 1 Axis | ±300°/sec | Analog | 9mV/°/s | 5.75V ~ 6.25V | No | Board(s) | ADXRS646 |
|
DC2296AEVAL BOARD FOR LTC2983 |
7 |
|
Datasheet | - | Box | Active | Temperature | - | SPI | - | 2.85V ~ 5.25V | - | Board(s) | LTC2983 |
|
EV15T80AEVAL BOARD FOR MCP9601 |
5 |
|
- |
- | Bulk | Active | Temperature, Thermocouple | - | - | - | - | - | Board(s), Accessories | MCP9601 |
|
EVAL-ADUCM355EMCZEMC REFERENCE DESIGN BOARD |
4 |
|
Datasheet | Circuits from the Lab™ | Box | Active | Gas | - | Serial, SPI | - | 3V | Yes, MCU, 32-Bit | Board(s) | ADuCM355 |
|
|
ZMID4200STKITZMID4200STKIT EVALUATION KIT |
6 |
|
Datasheet | - | Box | Active | Position, Inductive | 360° | Analog and Digital | - | 4.5V ~ 5.5V | Yes, MCU | Board(s) | ZMID4200 |
|
EV31T07ALX34211 100MM LINEAR EVAL KIT |
4 |
|
- |
- | Bulk | Active | Magnetic, Linear Position | 100mm | - | - | - | No | Board(s) | LX34211 |
|
EVAL-AD7147-1EBZBOARD EVAL FOR AD7147ACPZ-1 |
5 |
|
Datasheet | CapTouch™ | Box | Active | Touch, Capacitive | - | I2C | - | 2.6V ~ 3.6V | Yes, MCU, 8-Bit | Board(s), Cable(s) | AD7147 |
|

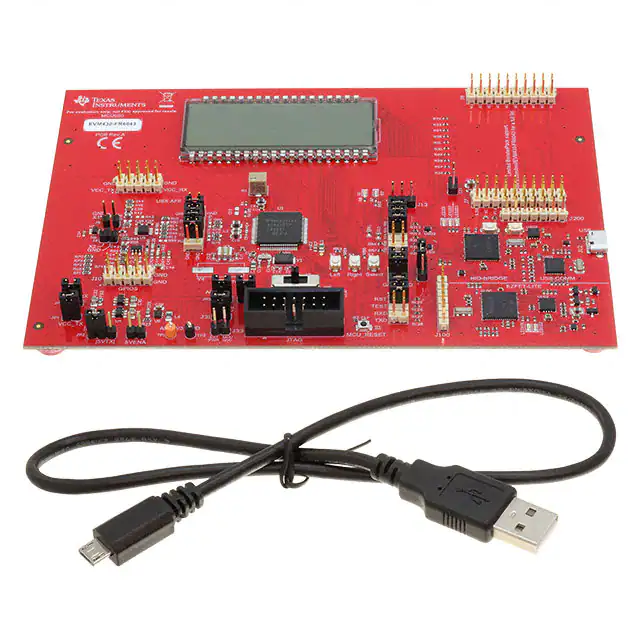

EVM430-FR6043MCU EVAL |
20 |
|
Datasheet | - | Box | Active | Flow, Gas | - | I2C, Serial | - | 5V, USB | Yes, MCU, 16-Bit | Board(s), Cable(s) | MSP430FR6043 |
|
DC2296A-KITEVAL KIT FOR LTC2983 |
5 |
|
Datasheet | - | Box | Active | Temperature | - | SPI | - | 2.85V ~ 5.25V | - | Board(s) | LTC2983 |
|
EVAL-ADXL367-SDPEVAL-ADXL367-SDP |
7 |
|
Datasheet | - | Bulk | Active | Accelerometer, 3 Axis | ±2g, 4g, 8g | I2C, Serial, SPI | 4000LSB/g, 2000LSB/g, 1000LSB/g | 1.1V ~ 3.6V | No | Board(s), Cable(s) | ADXL367 |
|
|
DEMOFX3U3VCAM01TOBO1DEMO BOARD |
4 |
|
Datasheet | - | Bulk | Active | Image Sensor | 5 Megapixel | I2C, SPI | - | - | No | Board(s) | OV5640 |
|
MICROFJ-SMA-30020-GEVBJ-SERIES 3MM 20U SMA |
3 |
|
Datasheet | J-SERIES SIPM | Bulk | Active | Light, Silicon Photomultiplier (SiPM) | - | Analog | - | - | - | Board(s) | MicroFJ-30020 |
|
MICROFJ-SMA-40035-GEVBJ-SERIES 4MM 35U SMA |
2 |
|
Datasheet | J-SERIES SIPM | Bulk | Active | Light, Silicon Photomultiplier (SiPM) | - | Analog | - | - | - | Board(s) | MicroFJ-40035 |
|
MICROFJ-SMA-60035-GEVBJ-SERIES 6MM 35U SMA |
3 |
|
Datasheet | J-SERIES SIPM | Bulk | Active | Light, Silicon Photomultiplier (SiPM) | - | Analog | - | - | - | Board(s) | MicroFJ-60035 |
