LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASL45XASLX41EVAL BOARD FOR ASLX41YSHN |
0 |
|
Datasheet | - | Bulk | Active | - | 6 Non-Isolated Outputs | - | - | - | Board(s) | ASLx41ySHN, ASLx500ySHN |
|

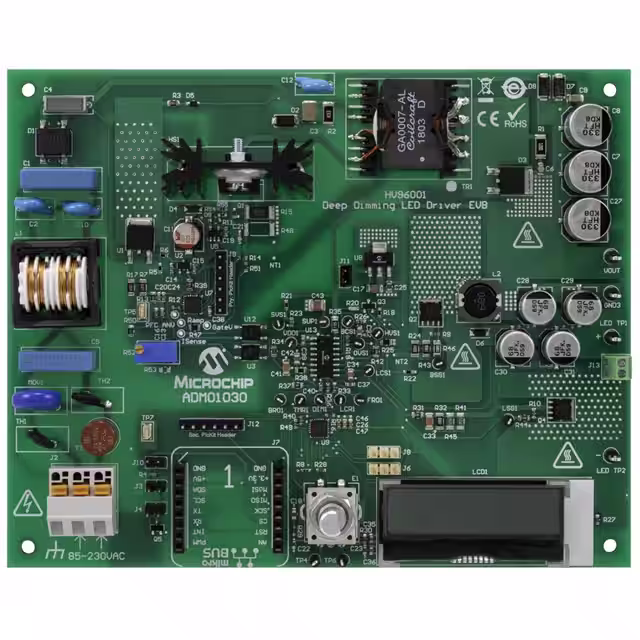

ADM01030EVAL BOARD FOR HV96001 |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Isolated Output | - | Dimmable | - | Board(s) | HV96001 |
|
|
RTK7RLG240P00000BJEVAL BOARD FOR RL78/G24 |
0 |
|
Datasheet | RL | Box | Active | 2A | 1 Non-Isolated Output | - | - | 5V | Board(s) | RL78/G24 |
|
|
OMPCA9957LEDEVEVAL BOARD FOR PCA9957 |
0 |
|
Datasheet | - | Bulk | Active | 32mA | 24 Non-Isolated Outputs | 5.5V | Dimmable | 2.7V ~ 5.5V | Board(s) | PCA9957 |
|

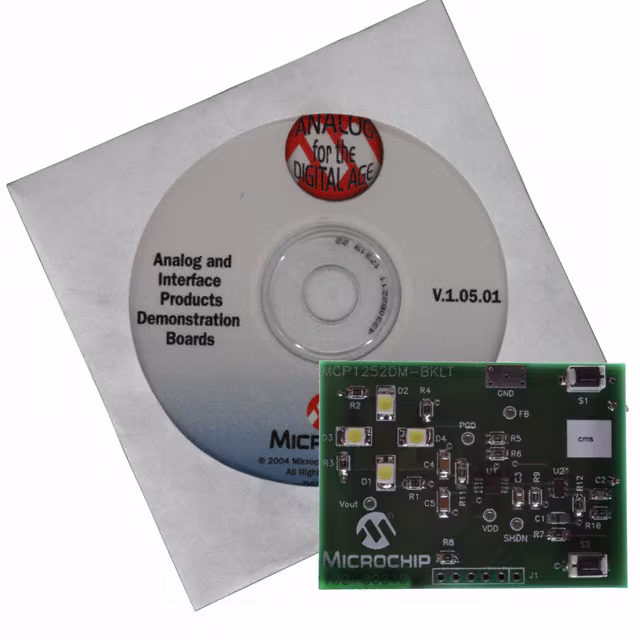

MCP1252DM-BKLTEVAL BOARD FOR MCP1252 |
0 |
|
Datasheet | - | Bulk | Obsolete | 120mA | 1 Non-Isolated Output | - | - | 2V ~ 5.5V | Board(s) | MCP1252 |
|
TPS61050EVM-269EVAL BOARD FOR TPS61050 |
0 |
|
Datasheet | - | Box | Active | 1.2A | 1 Non-Isolated Output | - | - | 2.5V ~ 6V | Board(s) | TPS61050 |
|
TPS61160EVM-243EVAL BOARD FOR TPS61160 |
0 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | 26V | - | 9V ~ 18V | Board(s) | TPS61160 |
|
STEVAL-ILL015V1EVAL BOARD FOR STP24DP05 |
0 |
|
Datasheet | - | Bulk | Active | 80mA | 16 Non-Isolated Outputs | 20V | - | 7.5V ~ 18V | Board(s), Cable(s) | STP24DP05 |
|
|
OM6282,598EVAL BOARD FOR OM6275 PCA9633 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 4 Non-Isolated Outputs | - | Dimmable | 2.3V ~ 5.5V | Board(s) | OM6275, PCA9633 |
|

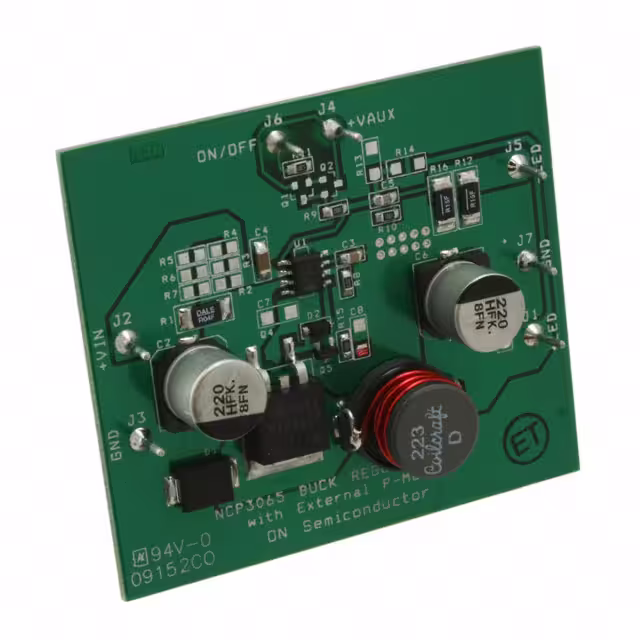

NCP30653ABCKGEVBEVAL BOARD FOR NCP3065 |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | - | - | Board(s) | NCP3065 |
|

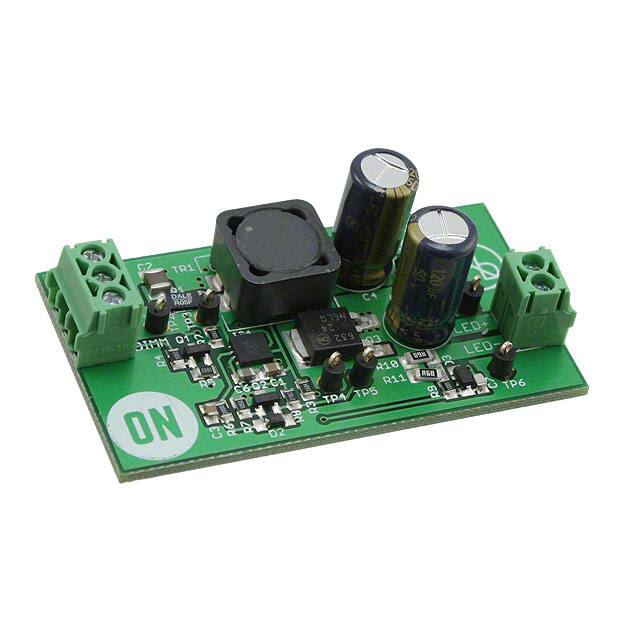

NCP3065D2SLDGEVBEVAL BOARD FOR NCP3065 |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 7V ~ 23V | - | 8V ~ 25V | Board(s) | NCP3065 |
|

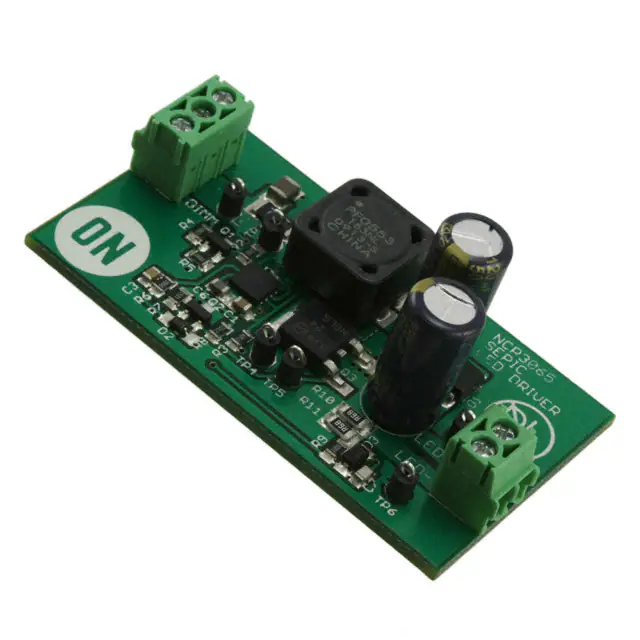

NCP3065D3SLDGEVBEVAL BOARD FOR NCP3065 |
0 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | 7V ~ 23V | - | 8V ~ 25V | Board(s) | NCP3065 |
|

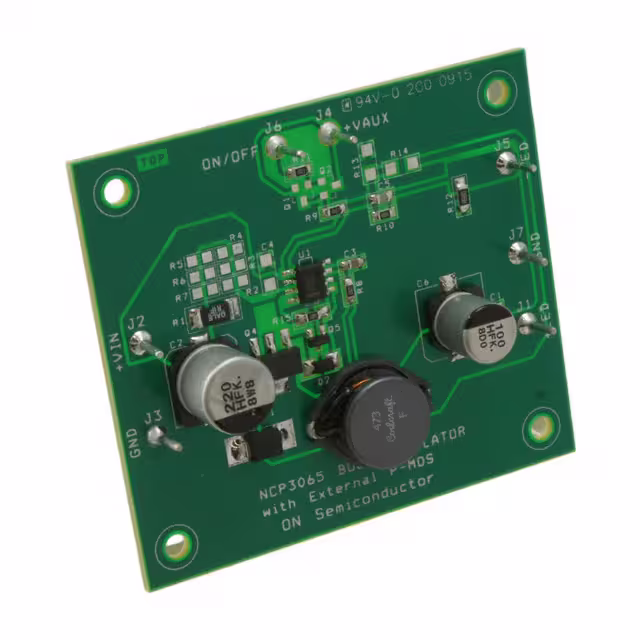

NCP3065SOBCKGEVBEVAL BOARD FOR NCP3065 |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 3.6V | - | 12V | Board(s) | NCP3065 |
|

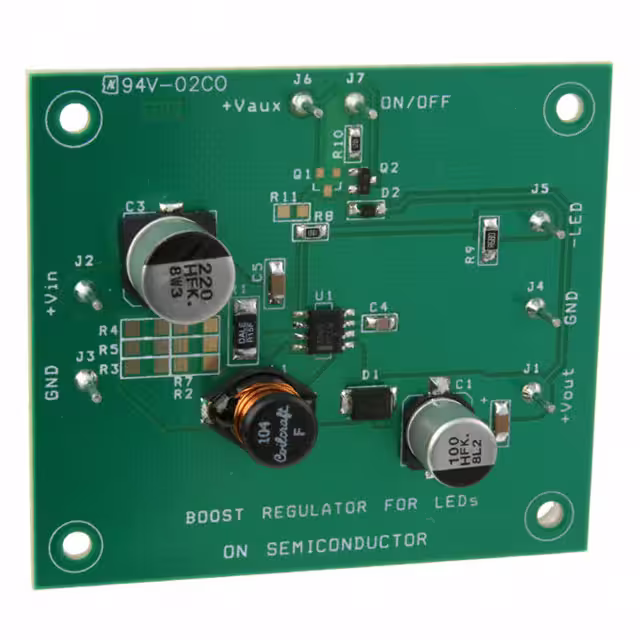

NCP3065SOBSTGEVBEVAL BOARD FOR NCP3065 |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 20V | - | 12V | Board(s) | NCP3065 |
|

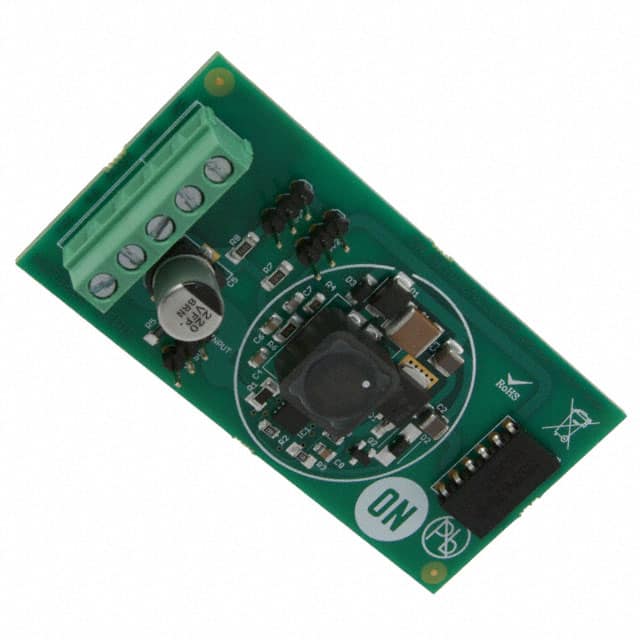

NCP3066DFSEPGEVBEVAL BOARD FOR NCP3066 |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 7.2V | - | 25VAC, 12 V ~ 24 V | Board(s) | NCP3066 |
|

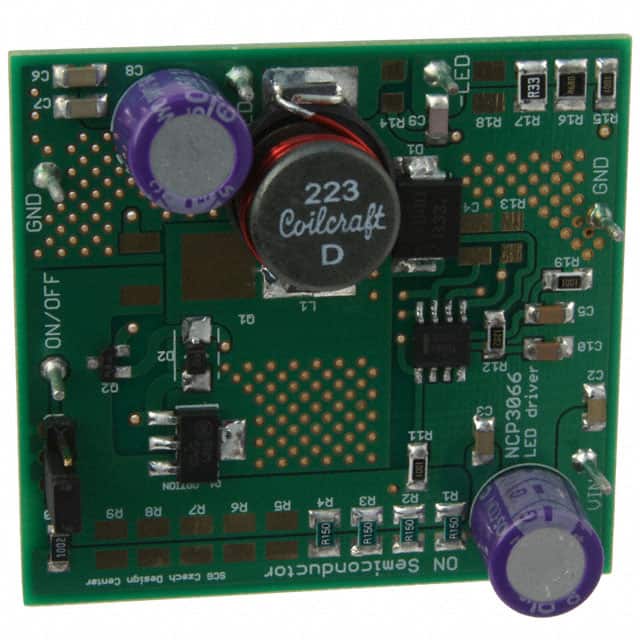

NCP3066S3BCKGEVBEVAL BOARD FOR NCP3066 |
0 |
|
Datasheet | - | Bulk | Active | 3A | 1 Non-Isolated Output | 3.2V | - | 12V ~ 35V | Board(s) | NCP3066 |
|

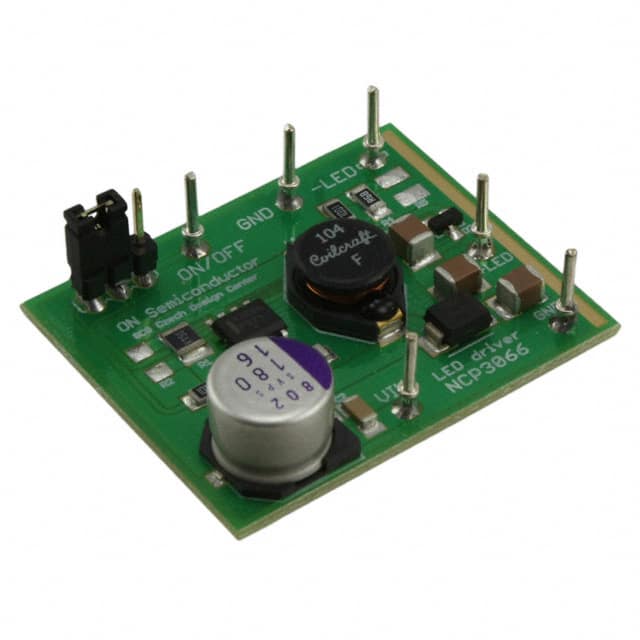

NCP3066SCBSTGEVBEVAL BOARD FOR NCP3066 |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 16V | - | 12V | Board(s) | NCP3066 |
|
TPS61195EVM-460EVAL BOARD FOR TPS61195 |
0 |
|
Datasheet | - | Box | Active | 160mA | 8 Non-Isolated Outputs | 32V | - | 4V ~ 24V | Board(s) | TPS61195 |
|

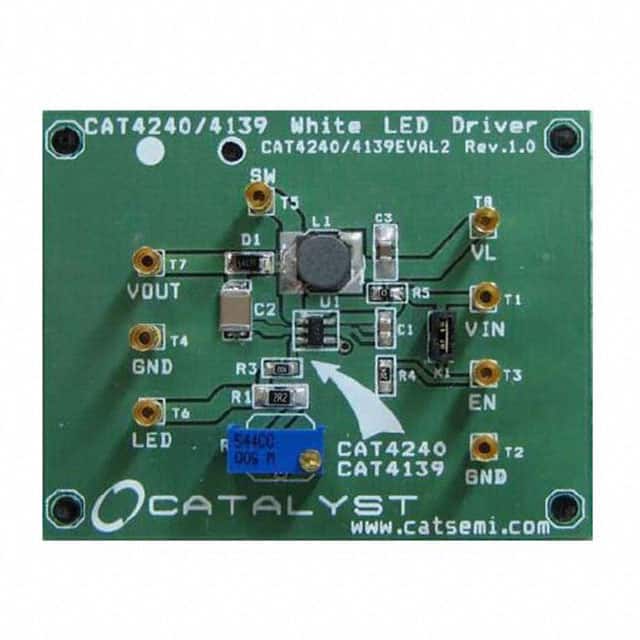

CAT4139AEVBEVAL BOARD FOR CAT4139 |
0 |
|
Datasheet | - | Bulk | Active | 100mA | 1 Non-Isolated Output | 22V | Dimmable | 2.8V ~ 5.5V | Board(s) | CAT4139 |
|

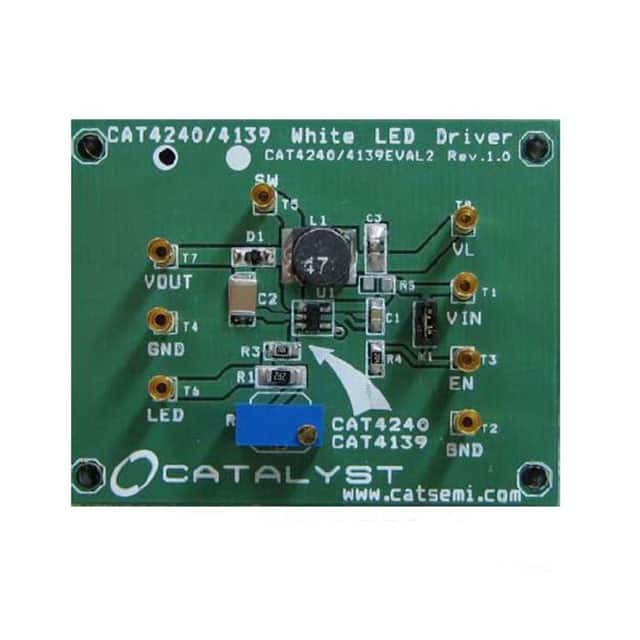

CAT4240AEVBEVAL BOARD FOR CAT4240 |
0 |
|
- |
- | Bulk | Active | - | 1 Non-Isolated Output | - | Dimmable | 5V, 12V | Board(s) | CAT4240 |
