LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1130AEVAL BOARD FOR LT3003 |
0 |
|
Datasheet | - | Box | Active | 110mA | 3 Non-Isolated Outputs | 29V | Dimmable | 8V ~ 16V | Board(s) | LT3003 |
|
|
IRPLLED13EVAL BOARD FOR IRS2980 |
0 |
|
Datasheet | LEDrivIR™ | Box | Obsolete | 350mA | 1 Non-Isolated Output | - | - | 90 ~ 250 VAC | Board(s) | IRS2980 |
|
|
ISL78171EVAL1ZEVAL BOARD FOR ISL78171 |
0 |
|
Datasheet | - | Box | Active | 20mA | 6 Non-Isolated Outputs | 32V | Dimmable | 4.5V ~ 26.5V | Board(s) | ISL78171 |
|

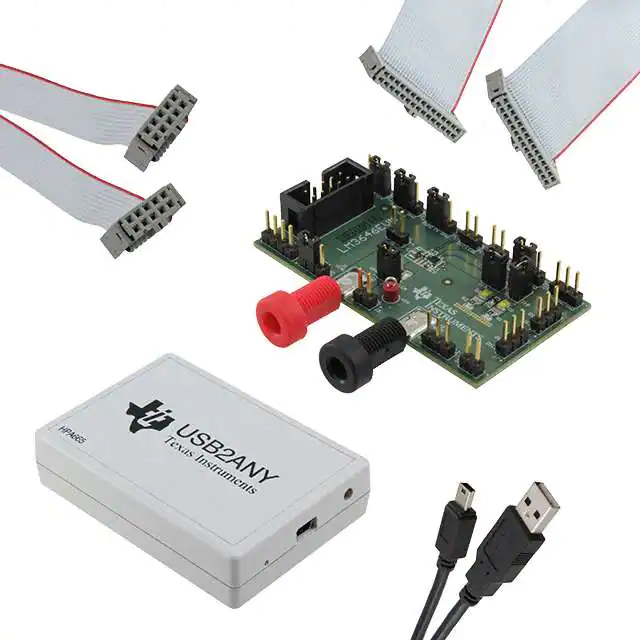

LM3646EVMEVAL BOARD FOR LM3646 |
1 |
|
Datasheet | - | Box | Obsolete | - | 1 Non-Isolated Output | - | - | 2.7V ~ 5.5V | Board(s) | LM3646 |
|

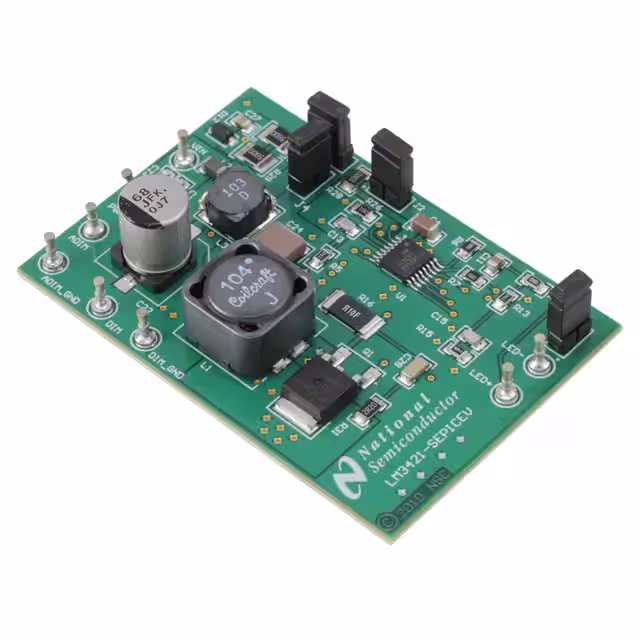

LM3421-SEPICEV/NOPBEVAL BOARD FOR LM3421 |
0 |
|
Datasheet | - | Bulk | Obsolete | 350mA | 1 Non-Isolated Output | 18.9V | Dimmable | 8V ~ 18V | Board(s) | LM3421 |
|

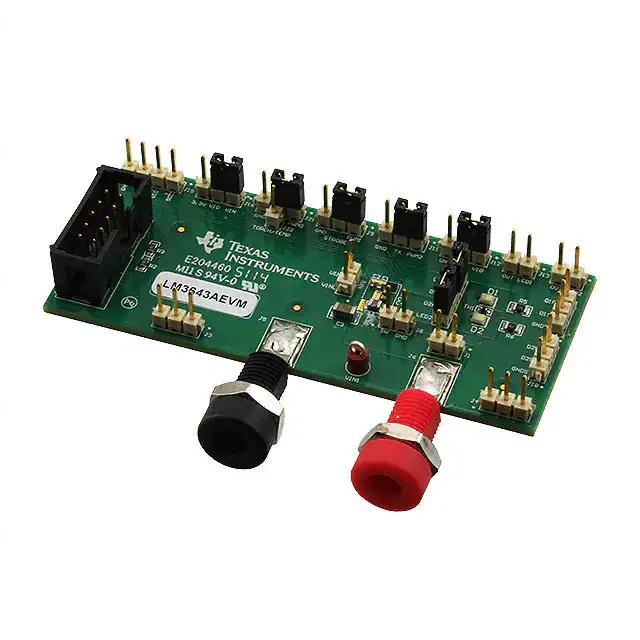

LM3643AEVMEVAL BOARD FOR LM3643A |
0 |
|
Datasheet | - | Box | Obsolete | - | 2 Non-Isolated Outputs | - | - | 2.5V ~ 5.5V | Board(s) | LM3643A |
|
|
TPS92621Q1EVMEVAL BOARD FOR TPS92621-Q1 |
0 |
|
Datasheet | - | Bulk | Active | 250mA | 1 Non-Isolated Output | - | Dimmable | 9V ~ 20V | Board(s) | TPS92621-Q1 |
|
LM27965SQEVEVAL BOARD FOR LM27965 |
0 |
|
Datasheet | - | Box | Obsolete | 20mA | 9 Non-Isolated Outputs | 4V | - | 2.7V ~ 5.5V | Board(s) | LM27965 |
|
TLD5190IVREGEVALTOBO1EVAL BOARD FOR TLD5190QV |
1 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | 1.5A | 1 Non-Isolated Output | 5.5V ~ 41.8V | Dimmable | 5.5V ~ 35V | Board(s) | TLD5190QV |
|
STEVAL-ILL053V1EVAL BOARD FOR L6562AT L6599AT |
0 |
|
Datasheet | - | Box | Obsolete | 2.7A | 1 Isolated Output | 48V | - | 85 ~ 305 VAC | Board(s) | L6562AT, L6599AT |
|
|
ISL6745ALEVAL3ZEVAL BOARD FOR ISL6745A |
0 |
|
Datasheet | - | Box | Active | 670mA | 1 Non-Isolated Output | 10V ~ 46V | Dimmable | 50 ~ 140 VAC | Board(s) | ISL6745A |
|
|
ISL97687IRTZ-LEVALZEVAL BOARD FOR ISL97687 |
0 |
|
Datasheet | - | Box | Active | 160mA | 4 Non-Isolated Outputs | 5V | Dimmable | 9V ~ 32V | Board(s) | ISL97687 |
|
|
ISL97687IRTZ-HEVALZEVAL BOARD FOR ISL97687 |
0 |
|
Datasheet | - | Box | Active | 160mA | 4 Non-Isolated Outputs | 5V | Dimmable | 9V ~ 32V | Board(s) | ISL97687 |
|
ADM8845EB-EVALZEVAL BOARD FOR ADM8845 |
0 |
|
Datasheet | - | Box | Active | 20mA | 6 Non-Isolated Outputs | 5.5V | Dimmable | 2.6V ~ 5.5V | Board(s), Cable(s) | ADM8845 |
|
|
ASL5015EVBSLAVEVAL BOARD FOR ASL5015 |
0 |
|
Datasheet | - | Bulk | Active | 1.5A | 12 Non-Isolated Outputs | - | Dimmable | 4.5V ~ 5.5V | Board(s) | ASL5015 |
|
|
ASL5115EVBSLAVEVAL BOARD FOR ASL5115 |
0 |
|
Datasheet | - | Bulk | Active | 1.5A | 12 Non-Isolated Outputs | - | Dimmable | 4.5V ~ 5.5V | Board(s) | ASL5115 |
|

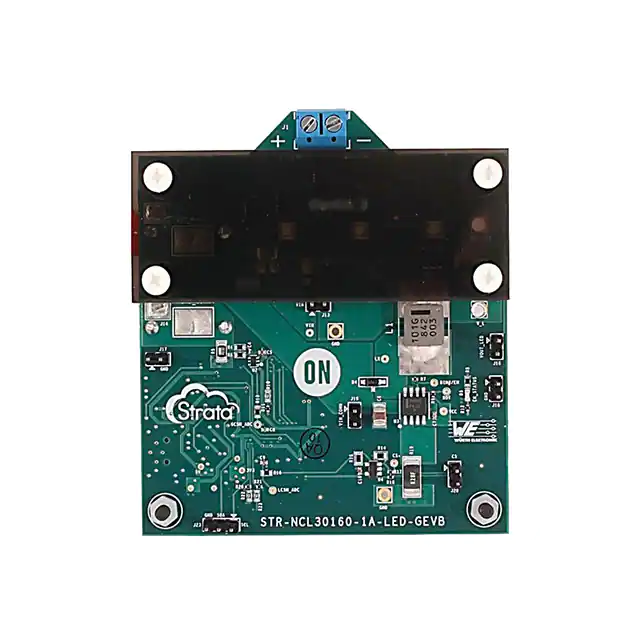

STR-NCL30160-1A-LED-GEVBEVAL BOARD FOR NCL30160 |
0 |
|
Datasheet | Strata | Bulk | Obsolete | 1A | 1 Non-Isolated Output | - | Dimmable | 6.3V ~ 40V | Board(s) | NCL30160 |
|
|
DC1775AEVAL BOARD FOR LT3799 |
0 |
|
Datasheet | - | Box | Active | 500mA | 1 Isolated Output | 30V | Dimmable | 90 ~ 270 VAC | Board(s) | LT3799 |
|
DC1319A-BEVAL BOARD FOR LT3756 |
0 |
|
Datasheet | - | Bulk | Obsolete | 500mA | 1 Non-Isolated Output | 100V | Dimmable | 8V ~ 80V | Board(s) | LT3756 |
|
ADP8861DBCB-EVALZEVAL BOARD FOR ADP8861 |
0 |
|
Datasheet | - | Bulk | Obsolete | 30mA | 7 Non-Isolated Outputs | 4.9V | - | 2.5V ~ 5.5V | Board(s) | ADP8861 |
