LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1217AEVAL BOARD FOR LTC3230 |
0 |
|
Datasheet | - | Bulk | Active | - | 5 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LTC3230 |
|
|
DC909AEVAL BOARD FOR LTC3217 |
0 |
|
Datasheet | - | Bulk | Active | - | 4 Non-Isolated Outputs | - | - | 2.9V ~ 4.5V | Board(s) | LTC3217 |
|
STEVAL-ILL028V1EVAL BOARD FOR STP1612PW05 |
0 |
|
Datasheet | STM32 | Box | Obsolete | - | 16 Non-Isolated Outputs | - | - | 7.5V ~ 18V | Board(s) | STP1612PW05 |
|
ADM00656EVAL BOARD FOR HV9805 |
1 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 125V | - | 195.5 ~ 264.5 VAC | Board(s) | HV9805 |
|
LM3423MHBSTEVAL/NOPBEVAL BOARD FOR LM3423 |
0 |
|
Datasheet | - | Box | Obsolete | 1A | 1 Non-Isolated Output | 35V | Dimmable | 4.5V ~ 35V | Board(s) | LM3423 |
|
|
LM3423MHBKBSTEV/NOPBEVAL BOARD FOR LM3423 |
0 |
|
Datasheet | - | Box | Obsolete | 1A | 1 Non-Isolated Output | 35V | Dimmable | 4.5V ~ 35V | Board(s) | LM3423 |
|
|
DC633AEVAL BOARD FOR LTC3202 |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | - | 3V ~ 4.5V | Board(s) | LTC3202 |
|

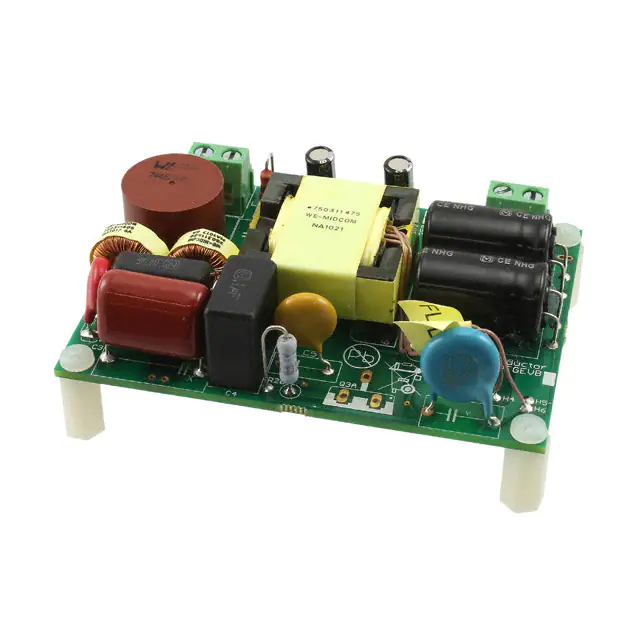

NCL30000LED2GEVBEVAL BOARD FOR NCL30000 |
1 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Isolated Output | 12V ~ 50V | Dimmable | 180 ~ 265 VAC | Board(s) | NCL30000 |
|
STEVAL-ILL035V1EVAL BOARD FOR LED7708 |
1 |
|
Datasheet | - | Bulk | Active | 85mA | 16 Non-Isolated Outputs | - | Dimmable | 10V ~ 28V | Board(s) | LED7708 |
|

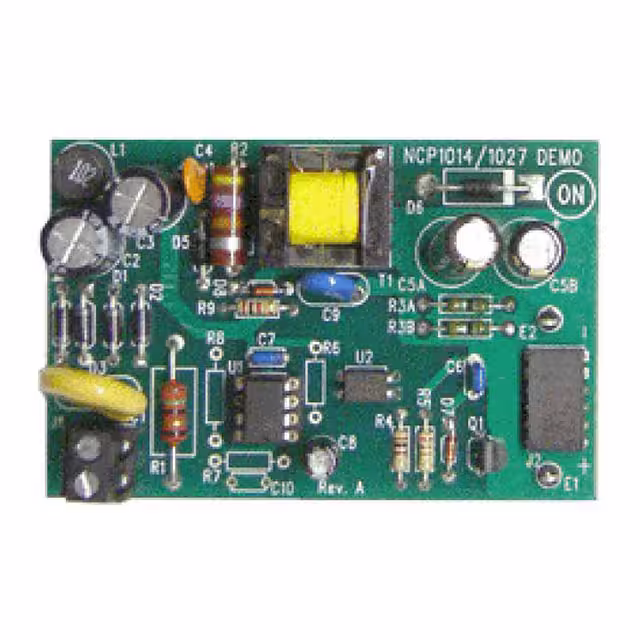

NCP1014LEDR2GEVBEVAL BOARD FOR NCP1014 |
0 |
|
Datasheet | - | Bulk | Obsolete | 360mA | 1 Isolated Output | 24V | - | 90 ~ 265 VAC | Board(s) | NCP1014 |
|
|
NCL30188FLYGEVBEVAL BOARD FOR NCL30188 |
0 |
|
Datasheet | - | Box | Active | 350mA | 1 Isolated Output | 14V ~ 28V | - | 90 ~ 265 VAC | Board(s) | NCL30188 |
|
|
ADP1655-EVALZEVAL BOARD FOR ADP1655 |
0 |
|
Datasheet | - | Box | Obsolete | 500mA | 1 Non-Isolated Output | 4.9V | - | 2.7V ~ 5.5V | Board(s) | ADP1655 |
|

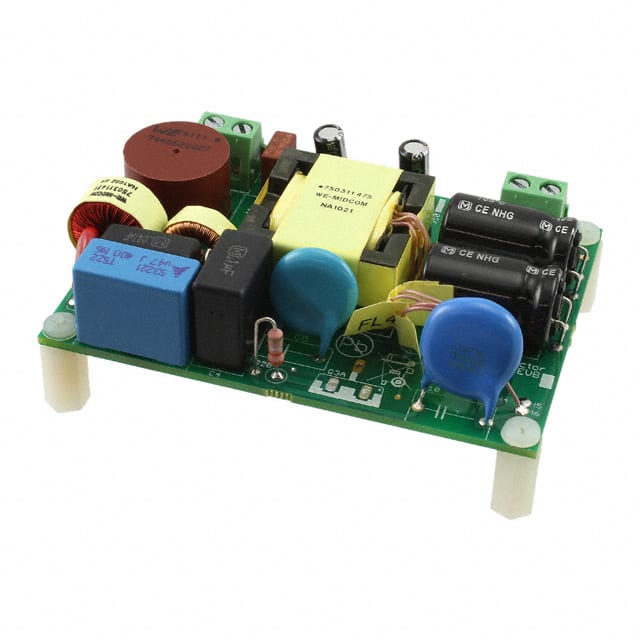

NCL30000LED1GEVBEVAL BOARD FOR NCL30000 |
0 |
|
Datasheet | - | Bulk | Obsolete | 350mA | 1 Isolated Output | 12V ~ 50V | Dimmable | 90 ~ 135 VAC | Board(s) | NCL30000 |
|
|
EVL6564H-25W-BBEVAL BOARD FOR L6564H |
0 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | - | - | 85 ~ 265 VAC | Board(s) | L6564H |
|
STEVAL-ILL053V2EVAL BOARD FOR L6562AT L6599AT |
1 |
|
Datasheet | - | Bulk | Active | 2.7A | 1 Isolated Output | 48V | - | 85 ~ 305 VAC | Board(s) | L6562AT, L6599AT |
|
REFICL5102U130WCCTOBO1EVAL BOARD FOR ICL5102 |
0 |
|
Datasheet | - | Bulk | Active | 1.75A | 1 Isolated Output | 38V ~ 76V | Dimmable | 90 ~ 305 VAC | Board(s) | ICL5102 |
|
CY3267EVAL BOARD FOR CY8CLEDXX |
0 |
|
Datasheet | PowerPSOC™ | Box | Obsolete | 1A | 4 Non-Isolated Outputs | 32V | Dimmable | 32V | Board(s), Cable(s), Power Supply, Accessories | CY8CLEDxx |
|
|
DC332AEVAL BOARD FOR LTC1682 |
0 |
|
Datasheet | - | Bulk | Active | - | 5 Non-Isolated Outputs | 4.5V | - | 3V ~ 4.2V | Board(s) | LTC1682 |
|
DC843AEVAL BOARD FOR LT3479 |
0 |
|
Datasheet | - | Box | Obsolete | 150mA | 1 Non-Isolated Output | - | - | 2.7V ~ 4.5V | Board(s) | LT3479 |
|
|
DC395AEVAL BOARD FOR LTC3202 |
0 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | - | 3.3V | Board(s) | LTC3202 |
