LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIC2289-3-LED-EVEVAL BOARD FOR MIC2289 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 15mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 10V | Board(s) | MIC2289 |
|
|
MIC2293-6-LED-EVEVAL BOARD FOR MIC2293 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | 15mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 10V | Board(s) | MIC2293 |
|
|
MIC3287-24YD6 EVEVAL BOARD FOR MIC3287 |
0 |
|
Datasheet | - | Box | Discontinued at Digi-Key | - | 1 Non-Isolated Output | - | - | 2.8V ~ 6.5V | Board(s) | MIC3287 |
|
|
FEBFAN7631-L17U120A-GEVBEVAL BOARD FOR FAN7631 FAN73402 |
0 |
|
Datasheet | - | Box | Active | 2.4A | 1 Isolated Output | 50V | Dimmable | 85 ~ 300 VAC | Board(s) | FAN7631, FAN73402, FL7930C, FSL117MRIN |
|
CAT4104AGEVBEVAL BOARD FOR CAT4104 |
0 |
|
Datasheet | - | Box | Active | 175mA | 4 Non-Isolated Outputs | - | - | 3V ~ 5.5V | Board(s) | CAT4104 |
|

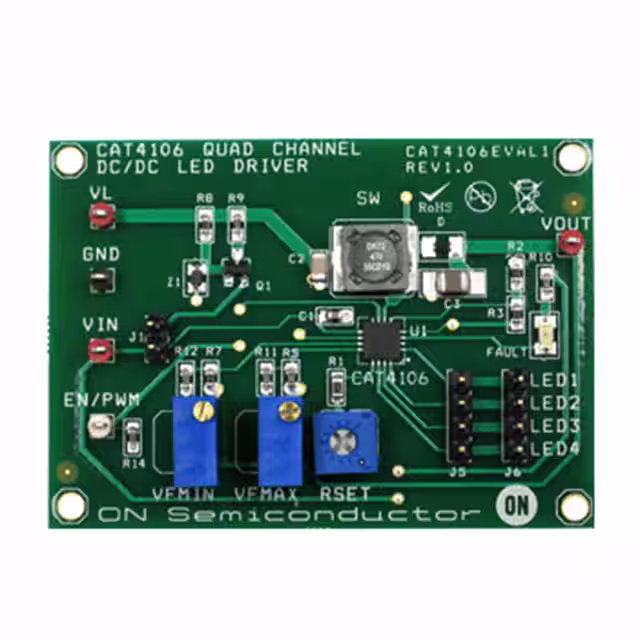

CAT4106AGEVBEVAL BOARD FOR CAT4106 |
0 |
|
Datasheet | - | Box | Active | 175mA | 4 Non-Isolated Outputs | 36V | Dimmable | 3V ~ 5.5V | Board(s) | CAT4106 |
|

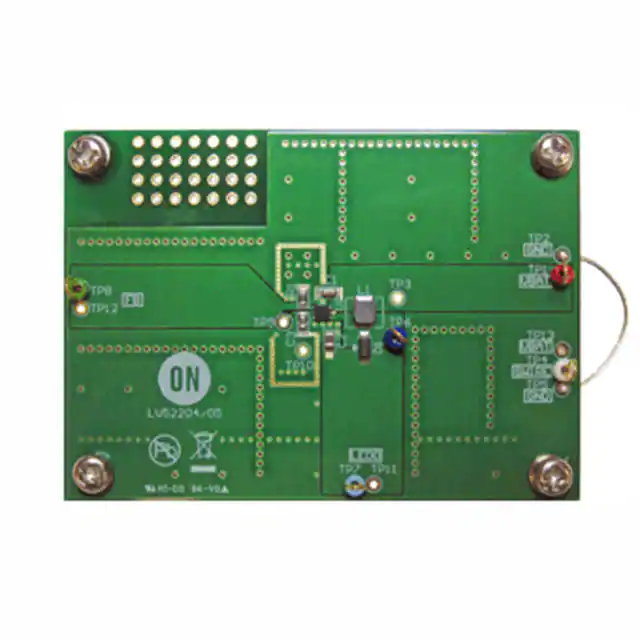

LV52204MUGEVBEVAL BOARD FOR LV52204 |
0 |
|
Datasheet | - | Box | Active | - | 1 Non-Isolated Output | - | Dimmable | 2.7V ~ 5.5V | Board(s) | LV52204 |
|
NCL30002DIM1GEVBEVAL BOARD FOR NCL30002 |
0 |
|
Datasheet | - | Box | Active | 750mA | 1 Non-Isolated Output | 22V ~ 26V | Dimmable | 100 ~ 132 VAC | Board(s) | NCL30002 |
|
NCL30002DIM2GEVBEVAL BOARD FOR NCL30002 |
0 |
|
Datasheet | - | Box | Active | 750mA | 1 Non-Isolated Output | 22V ~ 26V | Dimmable | 200 ~ 265 VAC | Board(s) | NCL30002 |
|
NCL30002LED1GEVBEVAL BOARD FOR NCL30002 |
0 |
|
Datasheet | - | Box | Active | 750mA | 1 Non-Isolated Output | 22V ~ 26V | - | 100 ~ 132 VAC | Board(s) | NCL30002 |
|
NCL30002LED2GEVBEVAL BOARD FOR NCL30002 |
0 |
|
Datasheet | - | Box | Active | 750mA | 1 Non-Isolated Output | 22V ~ 26V | - | 200 ~ 265 VAC | Board(s) | NCL30002 |
|
NCL30086SMRTGEVBEVAL BOARD FOR NCL30086 |
0 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 40V ~ 80V | Dimmable | 100 ~ 265 VAC | Board(s) | NCL30086 |
|
NCL30088LED1GEVBEVAL BOARD FOR NCL30088 |
0 |
|
Datasheet | - | Box | Active | 100mA | 1 Non-Isolated Output | 90V ~ 180V | - | 100 ~ 277 VAC | Board(s) | NCL30088 |
|
|
FEBFL7732_L26U017BEVAL BOARD FOR FL7732 |
0 |
|
- |
- | Box | Obsolete | 700mA | 1 Isolated Output | 11V ~ 28V | - | 90 ~ 265 VAC | Board(s) | FL7732 |
|
|
OM13482ULEVAL BOARD FOR PCU9956 |
0 |
|
Datasheet | - | Bulk | Obsolete | - | 24 Non-Isolated Outputs | - | Dimmable | - | Board(s) | PCU9956 |
|
|
NCL30186SMRTGEVBEVAL BOARD FOR NCL30186 |
0 |
|
Datasheet | - | Bulk | Active | 100mA | 1 Non-Isolated Output | 40V ~ 80V | Dimmable | 100 ~ 265 VAC | Board(s) | NCL30186 |
|
|
HV9922DB1EVAL BOARD FOR HV9922 |
0 |
|
Datasheet | - | Box | Active | 50mA | 1 Non-Isolated Output | - | - | 80 ~ 265 VAC | Board(s) | HV9922 |
|
|
HV9912DB1EVAL BOARD FOR HV9912 |
0 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 35V ~ 80V | Dimmable | 21V ~ 27V | Board(s) | HV9912 |
|
|
MB39C603-EVBSK-01EVAL BOARD FOR MB39C603 |
0 |
|
- |
- | Box | Obsolete | 470mA | 1 Isolated Output | 32V ~ 42V | Dimmable | 85 ~ 145 VAC | Board(s) | MB39C603 |
|
|
MB39C604-EVB-CN01EVAL BOARD FOR MB39C604 |
0 |
|
- |
- | Box | Obsolete | 450mA | 1 Isolated Output | 30V ~ 42V | Dimmable | 85 ~ 265 VAC | Board(s) | MB39C604 |
