LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B-G474E-DPOW1EVAL BOARD FOR STM32G474 |
114 |
|
Datasheet | STM32G4 | Bulk | Active | 100mA | 4 Non-Isolated Outputs | - | Dimmable | - | Board(s) | STM32G474 |
|
LP5036EVMEVAL BOARD FOR LP5036 |
3 |
|
Datasheet | - | Bulk | Active | 35mA | 36 Non-Isolated Outputs | 6V | - | 3V ~ 5.5V | Board(s), Cable(s) | LP5036 |
|
LP5813-12WCSPEVMEVAL BOARD FOR LP5812 LP5813 |
14 |
|
Datasheet | - | Box | Active | - | 12 Non-Isolated Outputs | - | - | 1.8V ~ 5.5V | Board(s), Cable(s) | LP5812, LP5813 |
|
LP8863EVMEVAL BOARD FOR LP8863-Q1 |
7 |
|
Datasheet | - | Bulk | Active | 120mA | 1 Non-Isolated Output | - | Dimmable | - | Board(s), Cable(s) | LP8863-Q1 |
|
|
TPS92201AEVMEVAL BOARD FOR TPS92201A |
23 |
|
Datasheet | - | Box | Active | 500mA | 1 Non-Isolated Output | - | Dimmable | 2.5V ~ 5.5V | Board(s) | TPS92201A |
|
TPS92515HVEVM-749EVAL BOARD FOR TPS92515 |
20 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | 3V ~ 65V | Dimmable | 5.5V ~ 65V | Board(s) | TPS92515 |
|
TPS92641EVMEVAL BOARD FOR TPS92641 |
6 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | 32V ~ 33V | Dimmable | 43V ~ 53V | Board(s) | TPS92641 |
|
TPS61169EVMEVAL BOARD FOR TPS61169 |
6 |
|
Datasheet | - | Box | Active | 20mA | 1 Non-Isolated Output | - | Dimmable | 2.7V ~ 5.5V | Board(s) | TPS61169 |
|
TPS92200D1EVMEVAL BOARD FOR TPS92200D1 |
6 |
|
Datasheet | - | Box | Active | 500mA | 1 Non-Isolated Output | - | Dimmable | 4V ~ 30V | Board(s) | TPS92200D1 |
|
LP5562EVMEVAL BOARD FOR LP5562 |
3 |
|
Datasheet | - | Box | Active | - | - | - | Dimmable | 2.7V ~ 5.5V | Board(s), Cable(s) | LP5562 |
|
LP8867Q1EVMEVAL BOARD FOR LP8867-Q1 |
16 |
|
Datasheet | - | Box | Active | 120mA | 4 Non-Isolated Outputs | - | - | 4.5V ~ 40V | Board(s) | LP8867-Q1 |
|
|
EVAL-LT3964-1-AZEVAL BOARD FOR LT3964-1 |
5 |
|
Datasheet | - | Box | Active | 1A | 2 Non-Isolated Outputs | 2.5V ~ 7.7V | Dimmable | 9V ~ 36V | Board(s) | LT3964-1 |
|
DC1831AEVAL BOARD FOR LT3763 |
8 |
|
Datasheet | - | Box | Active | 10A | 1 Non-Isolated Output | 10V | Dimmable | 12V ~ 60V | Board(s) | LT3763 |
|
DC2339AEVAL BOARD FOR LT3744 |
7 |
|
Datasheet | - | Box | Active | 20A | 3 Non-Isolated Outputs | 6.05V | Dimmable | 5.5V ~ 36V | Board(s) | LT3744 |
|
DC2575AEVAL BOARD FOR LT8391 |
2 |
|
Datasheet | - | Box | Active | 1.5A | 1 Non-Isolated Output | 16V | - | 4V ~ 60V | Board(s) | LT8391 |
|
DC2404AEVAL BOARD FOR LT3942 |
1 |
|
Datasheet | - | Bulk | Active | 2A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 36V | Board(s) | LT3942 |
|
DC976AEVAL BOARD FOR LT3476 |
0 |
|
Datasheet | - | Box | Active | 350mA | 4 Non-Isolated Outputs | 27V | Dimmable | 33V | Board(s) | LT3476 |
|
LP5012EVMEVAL BOARD FOR LP5012 |
9 |
|
Datasheet | - | Box | Active | 35mA | 12 Non-Isolated Outputs | - | - | 3V ~ 5.5V | Board(s), Cable(s) | LP5012 |
|

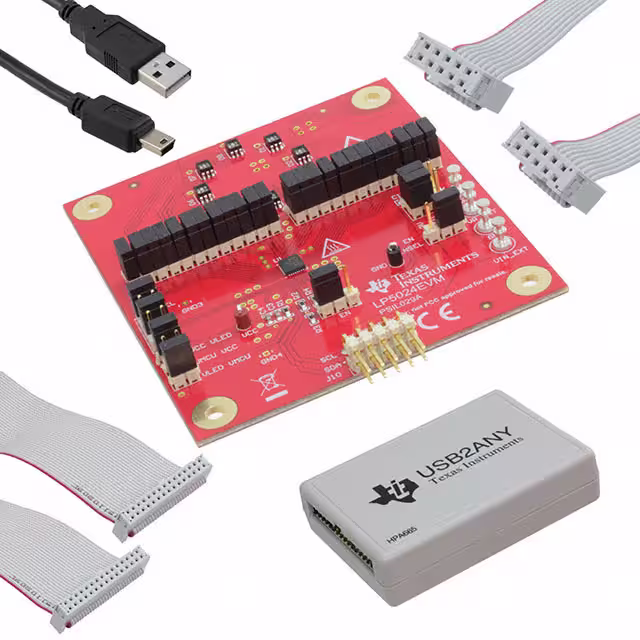

LP5024EVMEVAL BOARD FOR LP5024 |
2 |
|
Datasheet | - | Bulk | Active | 35mA | 24 Non-Isolated Outputs | - | Dimmable | 3V ~ 5.5V | Board(s), Cable(s), Accessories | LP5024 |
|
|
TLD55421HIPOWEVALTOBO1EVAL BOARD FOR TLD5542-1 |
4 |
|
Datasheet | - | Bulk | Active | 25A | 1 Non-Isolated Output | 5V ~ 24V | Dimmable | 7.5V ~ 35V | Board(s) | TLD5542-1 |
