DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS54395EVM-057EVAL BOARD FOR TPS54395 |
3 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 3A, 3A | 5V ~ 18V | Buck | 700kHz | Board(s) | TPS54395 |
|
LM20343EVAL/NOPBEVAL BOARD FOR LM20343 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 25V | Buck | - | Board(s) | LM20343 |
|
LM3103EVAL/NOPBEVAL BOARD FOR LM3103 |
3 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 750mA | 8V ~ 42V | Buck | 500kHz | Board(s) | LM3103 |
|
LM34926EVAL/NOPBEVAL BOARD FOR LM34926 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 250mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM34926 |
|

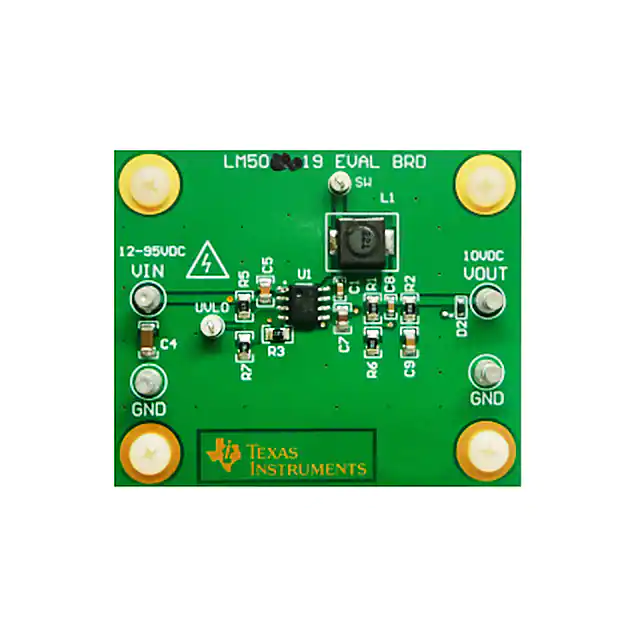

LM5019EVAL/NOPBEVAL BOARD FOR LM5019 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 100mA | 12.5V ~ 100V | Buck | 440kHz | Board(s) | LM5019 |
|
LM5019ISOEVAL/NOPBEVAL BOARD FOR LM5019 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 100mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM5019 |
|
TPS54540EVM-558EVAL BOARD FOR TPS54540 |
3 |
|
Datasheet | Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 42V | Buck | 400kHz | Board(s) | TPS54540 |
|
TPS54627EVM-052EVAL BOARD FOR TPS54627 |
3 |
|
Datasheet | D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 6A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54627 |
|
LM34919CQTLEVMEVAL BOARD FOR LM34919CQ1 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 4.5V ~ 24V | Buck | 1.5MHz | Board(s) | LM34919C-Q1 |
|
TPS61281EVM-586EVAL BOARD FOR TPS61281 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.15V or 3.35V | 3A | 2.3V ~ 4.8V | Boost | 2.3MHz | Board(s) | TPS61281 |
|
TPS8268180EVM-589EVAL BOARD FOR TPS8268180 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.6A | 2.5V ~ 5.5V | Buck | 5.5MHz | Board(s) | TPS8268180 |
|
TPS82084EVM-672EVAL BOARD FOR TPS82084 |
3 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 6V | Buck | 2.4MHz | Board(s) | TPS82084 |
|
TPSM84A21EVM-808EVAL BOARD FOR TPSM84A21 |
3 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.8V, 1V, 1.1V or 1.2V | 10A | 8V ~ 14V | Buck | 4MHz | Board(s) | TPSM84A21 |
|
TLV62084EVM-828EVAL BOARD FOR TLV62084 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.7V ~ 6V | Buck | - | Board(s) | TLV62084 |
|
TPS549A20EVM-737EVAL BOARD FOR TPS549A20 |
3 |
|
Datasheet | D-CAP3™, SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 5V ~ 18V | Buck | 1MHz | Board(s) | TPS549A20 |
|
TPS65235EVM-747EVAL BOARD FOR TPS65235 |
3 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 11V ~ 20V | 1A | 4.5V ~ 16V | Boost | - | Board(s) | TPS65235 |
|
TLV62568PEVM-860EVAL BOARD FOR TLV62568P |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | TLV62568P |
|
DCPA10512DEVM-868EVAL BOARD FOR DCPA10505 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 2 Isolated Outputs | 1 W | ±12V | - | 4.5V ~ 5.5V | - | - | Board(s) | DCPA10505 |
|
DCPA10505DEVM-868EVAL BOARD FOR DCPA10505 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 2 Isolated Outputs | 1 W | ±5V | - | 4.5V ~ 5.5V | - | - | Board(s) | DCPA10505 |
|
TPS549B22EVM-847EVAL BOARD FOR TPS549B22 |
3 |
|
Datasheet | D-CAP3™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 25A | 5V ~ 14V | Buck | 650kHz | Board(s) | TPS549B22 |
