DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR10510YSDDEMO/NOPBEVAL BOARD FOR LMR10510 |
5 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 5.5V | Buck | 3MHz | Board(s) | LMR10510 |
|
TPS56921EVM-188EVAL BOARD FOR TPS56921 |
5 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 9A | 4.5V ~ 17V | Buck | 500kHz | Board(s) | TPS56921 |
|
LMZ30606EVM-003EVAL BOARD FOR LMZ30606 |
5 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 6A | 2.95V ~ 6V | Buck | - | Board(s) | LMZ30606 |
|
TLV62566EVM-232EVAL BOARD FOR TLV62566 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | TLV62566 |
|

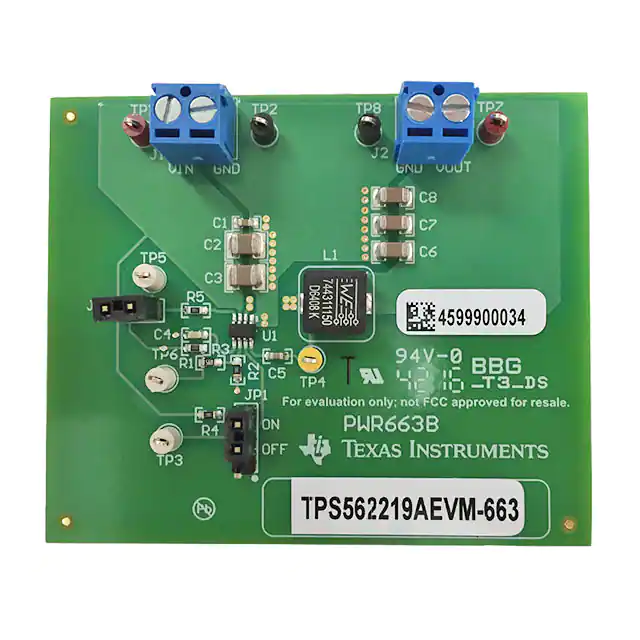

TPS562219AEVM-663EVAL BOARD FOR TPS562219A |
5 |
|
Datasheet | D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS562219A |
|
DCPA10512EVM-861EVAL BOARD FOR DCPA10505 |
5 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Isolated Output | 1 W | 12V | - | 4.5V ~ 5.5V | - | - | Board(s) | DCPA10505 |
|

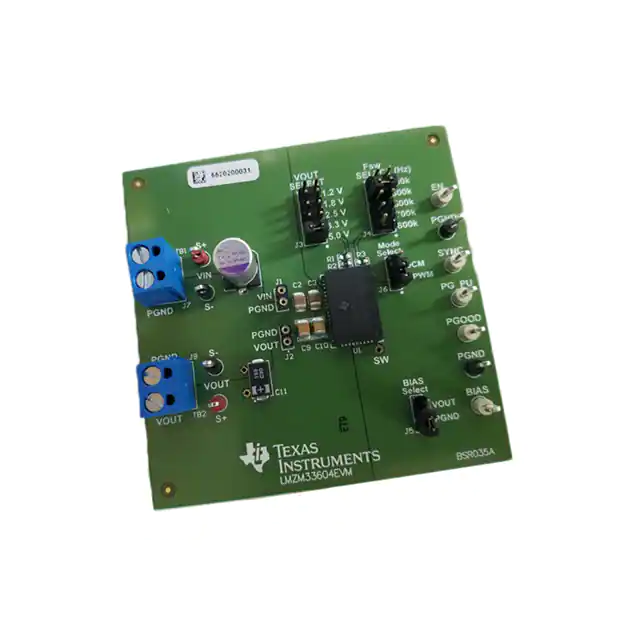

LMZM33604EVMEVAL BOARD FOR LMZM33604 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V, 3.3V or 5V | 4A | 3.5V ~ 36V | Buck | - | Board(s) | LMZM33604 |
|

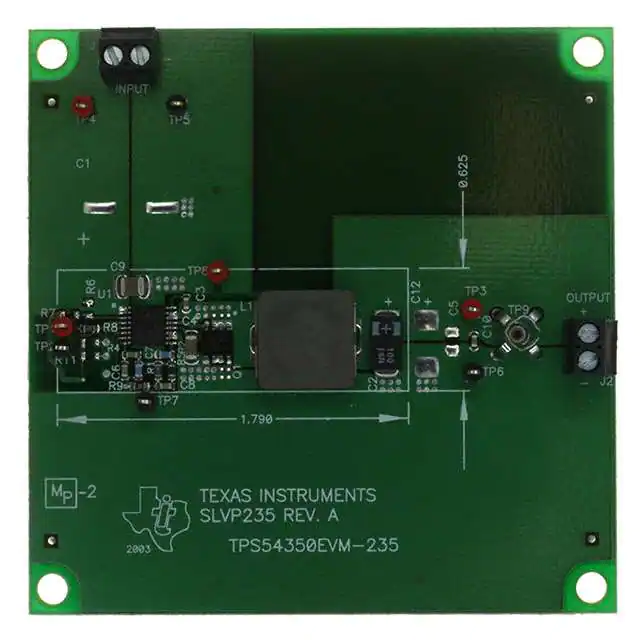

TPS54350EVM-235EVAL BOARD FOR TPS54350 |
4 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 18V | Buck | 500kHz | Board(s) | TPS54350 |
|

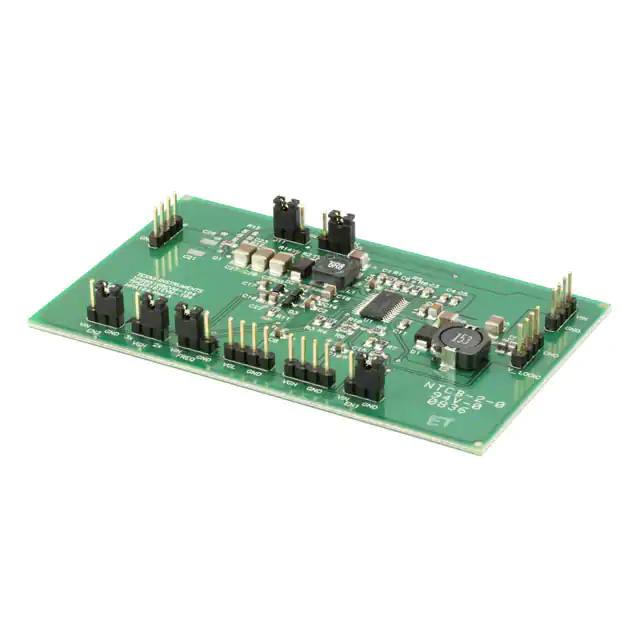

TPS65161EVM-194EVAL BOARD FOR TPS65161 |
4 |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | 32.8 W | 3.3V, 18V, 32V, -5V | 2.3A, 1.3A, 50mA, 50mA | 11.4V ~ 12.6V | Buck-Boost | 750kHz | Board(s) | TPS65161 |
|

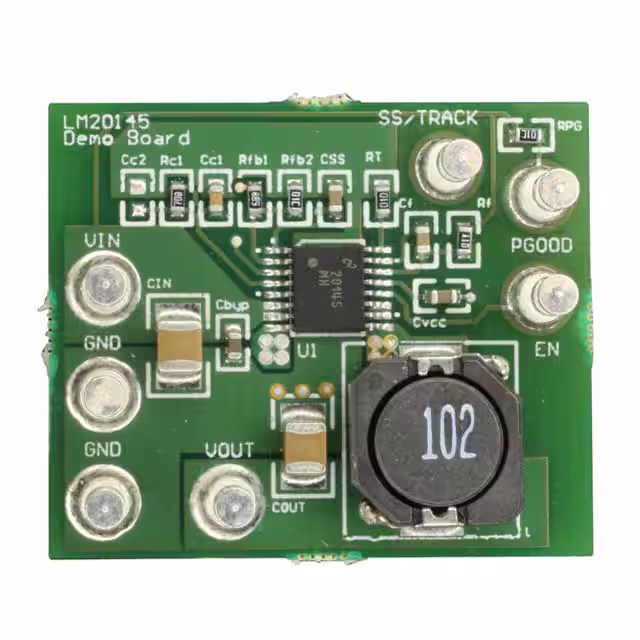

LM20145EVALEVAL BOARD FOR LM20145 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 2.95V ~ 5.5V | Buck | 500kHz | Board(s) | LM20145 |
|
LM34919EVALEVAL BOARD FOR LM34919 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 8V ~ 40V | Buck | 800kHz | Board(s) | LM34919 |
|
LM2833XSDEVALEVAL BOARD FOR LM2833 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 3V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM2833 |
|

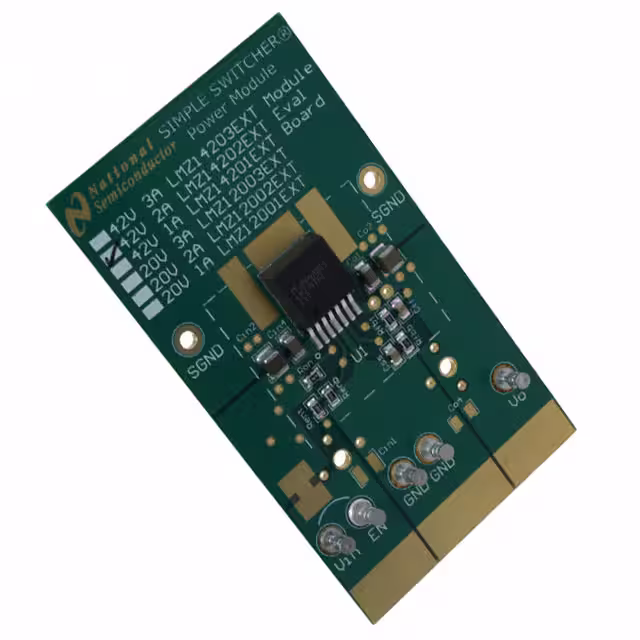

LMZ14202EXTEVAL/NOPBEVAL BOARD FOR LMZ14202EXT |
4 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 6V ~ 42V | Buck | - | Board(s) | LMZ14202EXT |
|

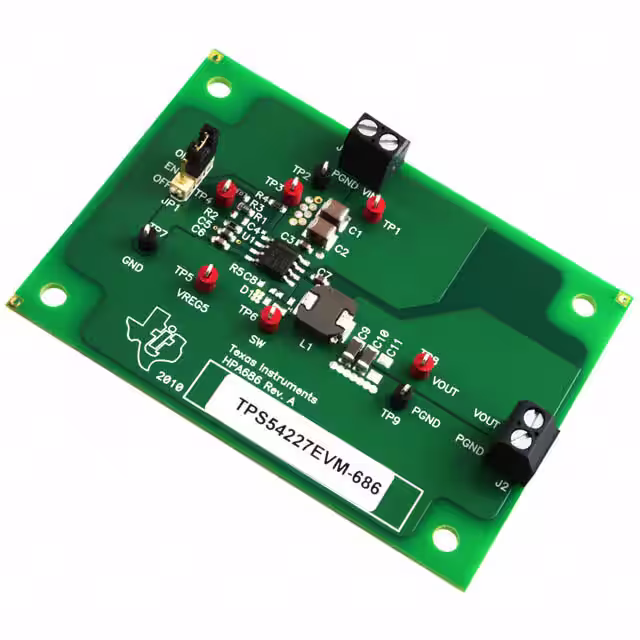

TPS54227EVM-686EVAL BOARD FOR TPS54227 |
4 |
|
Datasheet | SWIFT™, D-CAP2™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54227 |
|

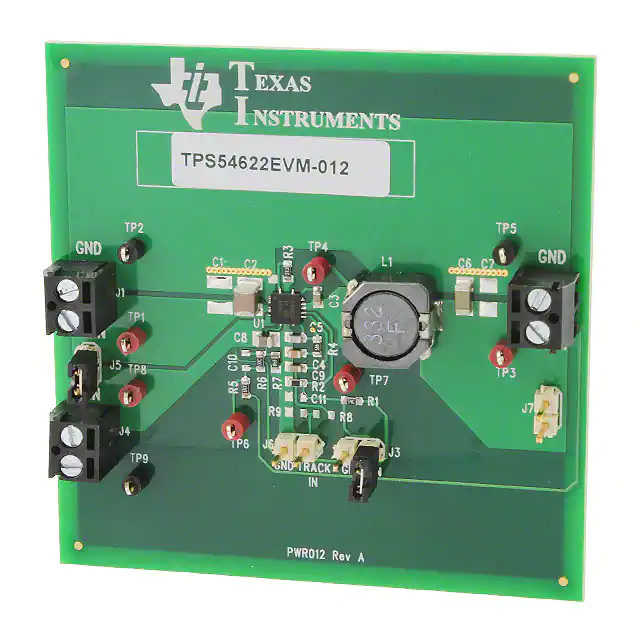

TPS54622EVM-012EVAL BOARD FOR TPS54622 |
4 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 6A | 8V ~ 17V | Buck | 480kHz | Board(s) | TPS54622 |
|

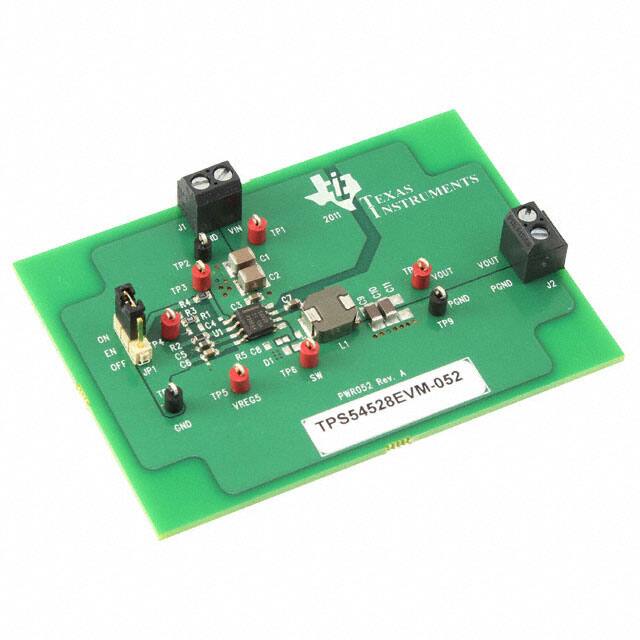

TPS54528EVM-052EVAL BOARD FOR TPS54528 |
4 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54528 |
|
LM25017MR-EVMEVAL BOARD FOR LM25017 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 650mA | 12.5V ~ 48V | Buck | 480kHz | Board(s) | LM25017 |
|

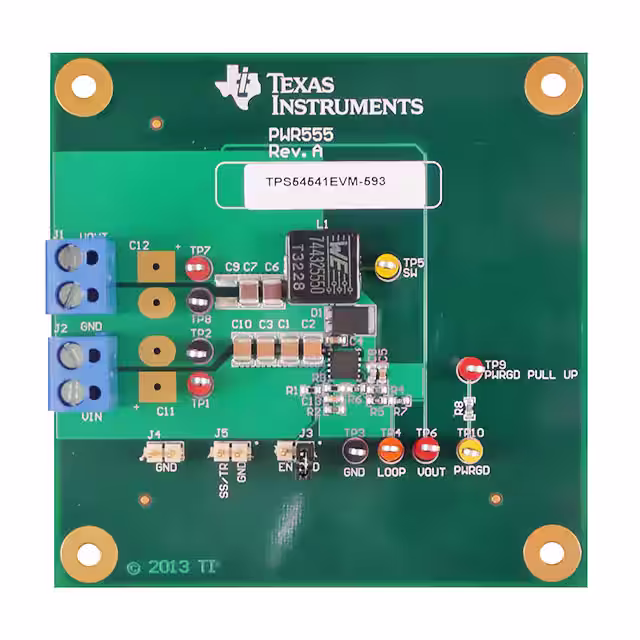

TPS54541EVM-555EVAL BOARD FOR TPS54541 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 42V | Buck | 400kHz | Board(s) | TPS54541 |
|

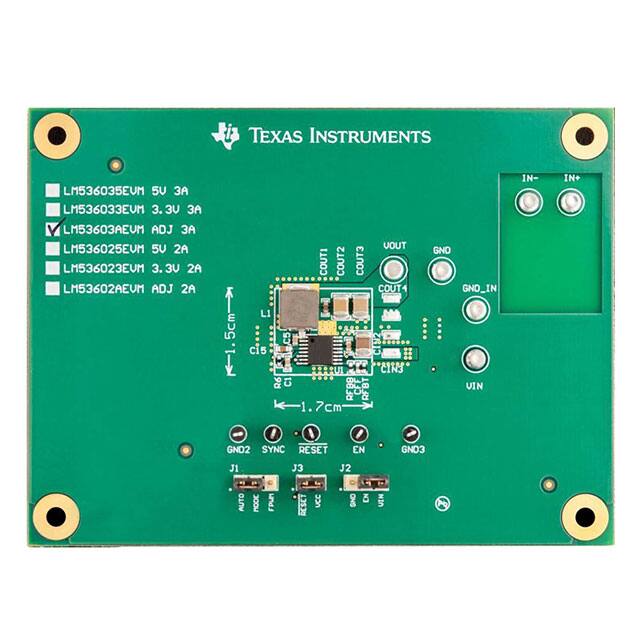

LM53603AEVMEVAL BOARD FOR LM53603A |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V ~ 6V | 3A | 3.9V ~ 36V | Buck | 2.1MHz | Board(s) | LM53603A |
|

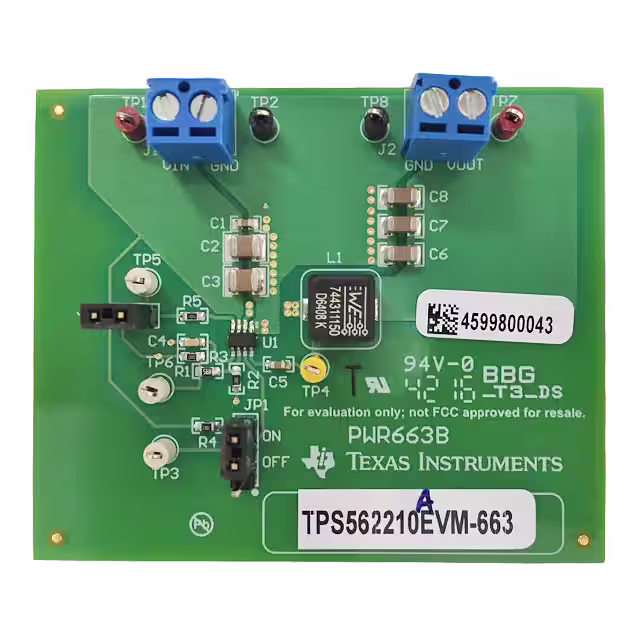

TPS562210AEVM-663EVAL BOARD FOR TPS562210A |
4 |
|
Datasheet | D-CAP2™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS562210A |
