DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2896A-BEVAL BOARD FOR LT8551 |
1 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | 1.44 kW | 48V | 30A | 10V ~ 46V | Boost | - | Board(s) | LT8551 |
|
DC2596AEVAL BOARD FOR LT8708 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 48V | 6A | 36V ~ 75V | Buck-Boost | 200kHz | Board(s) | LT8708 |
|
EVLMG1-250WLLCEVAL BOARD FOR MASTERGAN1 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC Converter | 1 Isolated Output | 250 W | 24V | 10.4A | 360V ~ 440V | Resonant | - | Board(s) | MasterGaN1 |
|
DC2348A-AEVAL BOARD FOR LTC3871 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Bidirectional | 1 Non-Isolated Output | - | 12V or 48V | 60A or 15A | 10V ~ 13V or 30V ~ 75V | Boost, Buck | 110kHz | Board(s) | LTC3871 |
|
|
DC2886AEVAL BOARD FOR LTC7060 LTC7871 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Bidirectional | 1 Non-Isolated Output | - | 14V or 48V | 180A or 51A | 10V ~ 14V or 30V ~ 70V | Boost, Buck | 150kHz | Board(s) | LTC7060, LTC7871 |
.jpg)
|
EVAL3K3WLLCHBCFD7TOBO1EVAL BOARD FOR ICE5QSAG XMC4200 |
5 |
|
Datasheet | CoolMOS™, CoolSiC™, EiceDRIVER™, OptiMOS™ 5 | Box | Active | DC/DC Converter | 1 Isolated Output | 3.3 kW | 43.5V ~ 59.5V | - | 350V ~ 415V | Flyback | - | Board(s) | ICE5QSAG, XMC4200 |
|
EVAL1K4WZVSFBSMDTOBO1EVAL BOARD IFX91041EJV33 XMC4200 |
3 |
|
Datasheet | CoolMOS™, CoolSET™ | Box | Active | DC/DC, Step Down | 1 Isolated Output | 1.4 kW | 12V | - | 400V | Buck | 100kHz | Board(s) | IFX91041EJV33, XMC4200 |
|
|
EVAL500W5GPSUTOBO1EVAL BOARD ICE1HS01G ICE3PCS01G |
2 |
|
Datasheet | CoolMOS™ | Bulk | Active | AC/DC Converter | 2 Isolated Outputs | 500 W | 12V | 42A | 100 ~ 240 VAC | Boost | - | Board(s) | ICE1HS01G, ICE3PCS01G |
|
TPS50601ASPEVM-DEVAL BOARD FOR TPS50601ASP |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 6A | 4.5V ~ 6.3V | Buck | 100kHz | Board(s) | TPS50601A-SP |
|
EVAL2KWZVSFBCFD7TOBO1EVAL BOARD FOR ICE3RBR4765JZ |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 2 kW | 45V ~ 56V | - | 350V ~ 420V | Buck | - | Board(s) | ICE3RBR4765JZ |
|
TPS536C7EVM-051EVAL BOARD FOR CSD95410 TPS536C7 |
2 |
|
Datasheet | D-CAP+™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.88V, 1V | 400A, 50A | 12V | Buck | - | Board(s) | CSD95410, TPS536C7 |
|
LM3152-3.3DEMOEVAL BOARD FOR LM3152 |
9 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 6V ~ 24V | Buck | 500kHz | Board(s) | LM3152 |
|
TPS82675EVM-646EVAL BOARD FOR TPS82675646 |
7 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.3V ~ 4.8V | Buck | 6MHz | Board(s) | TPS82675-646 |
|
STEVAL-1PS02DEVAL BOARD FOR ST1PS02DQTR |
9 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V ~ 1.35V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS02DQTR |
|
STEVAL-1PS02AEVAL BOARD FOR ST1PS02AQTR |
9 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.4V ~ 1.75V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS02AQTR |
|
STEVAL-1PS02BEVAL BOARD FOR ST1PS02 |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 2.5V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS02 |
|
STEVAL-1PS02CEVAL BOARD FOR ST1PS02CQTR |
7 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.6V ~ 3.3V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS02CQTR |
|

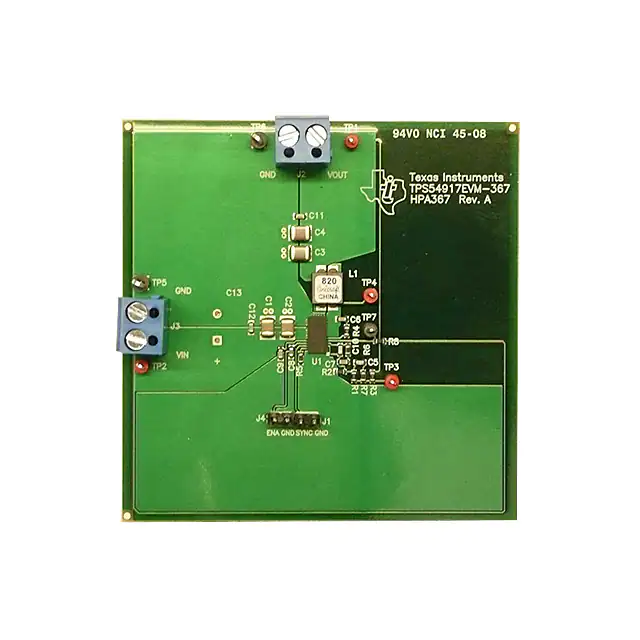

TPS54917EVM-367EVAL BOARD FOR TPS54917 |
10 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 9A | 3V ~ 4V | Buck | 1.6MHz | Board(s) | TPS54917 |
|
TPS65273VTEVMEVAL BOARD FOR TPS65273V |
25 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.1V | 3.5A, 3.5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65273V |
|

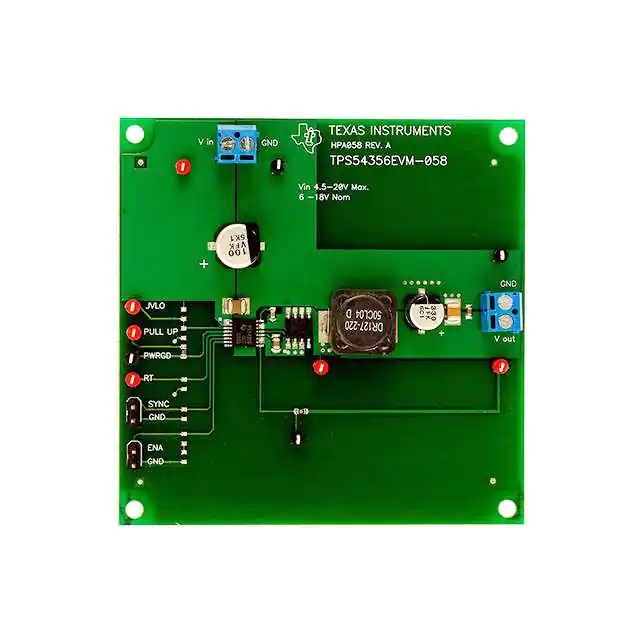

TPS54356EVM-058EVAL BOARD FOR TPS54356 |
21 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 18V | Buck | 500kHz | Board(s) | TPS54356 |
