DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS54429EVM-608EVAL BOARD FOR TPS54429 |
6 |
|
Datasheet | SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4.5A | 7V ~ 18V | Buck | 700kHz | Board(s) | TPS54429 |
|

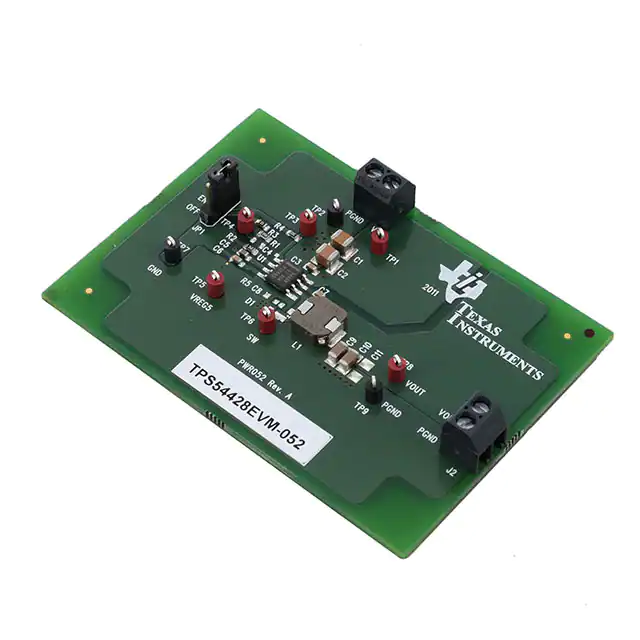

TPS54428EVM-052EVAL BOARD FOR TPS54428 |
6 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54428 |
|
TPS65001EVM-453EVAL BOARD FOR TPS65001 |
5 |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.8V | 600mA, 300mA, 300mA | 3.3V ~ 6V | Buck | 2.25MHz | Board(s) | TPS65001 |
|

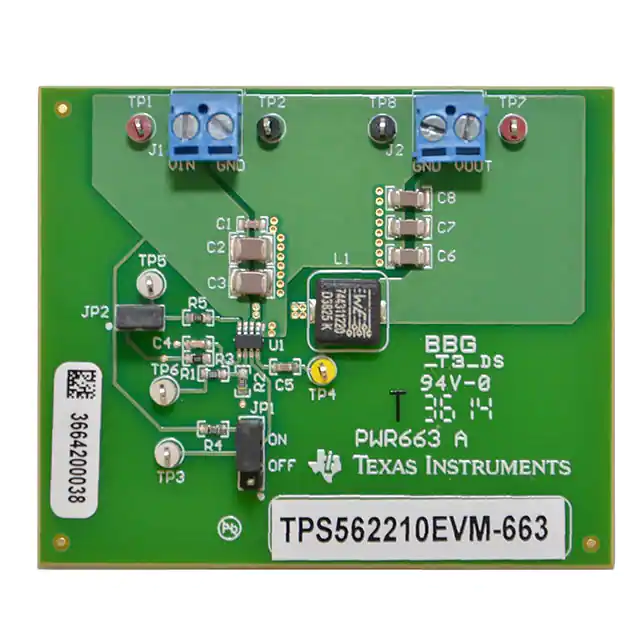

TPS562210EVM-663EVAL BOARD FOR TPS562210 |
5 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS562210 |
|

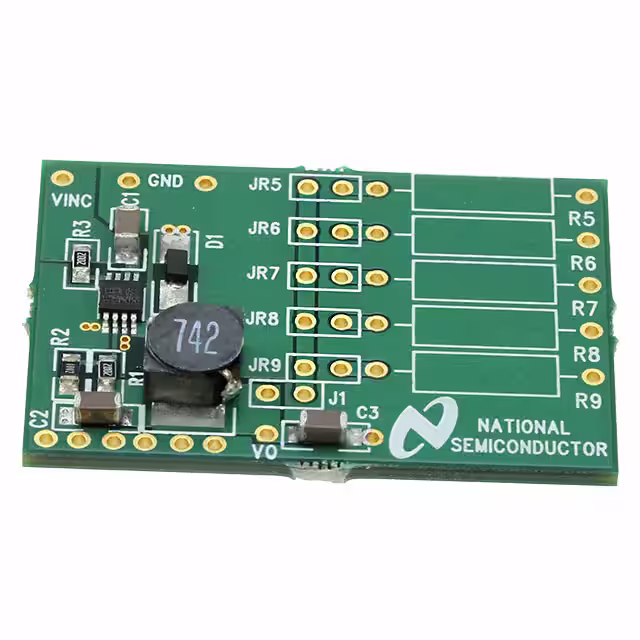

LM2832YMY EVALEVAL BOARD FOR LM2832 |
4 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.6V ~ 5.5V | Buck | 550kHz | Board(s) | LM2832 |
|

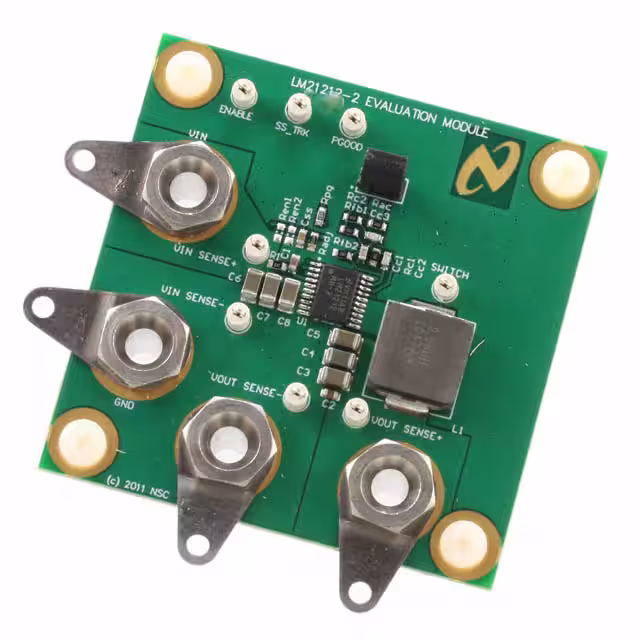

LM21212-2EVM/NOPBEVAL BOARD FOR LM212122 |
4 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 2.95V ~ 5.5V | Buck | 300kHz ~ 1.55MHz | Board(s) | LM21212-2 |
|

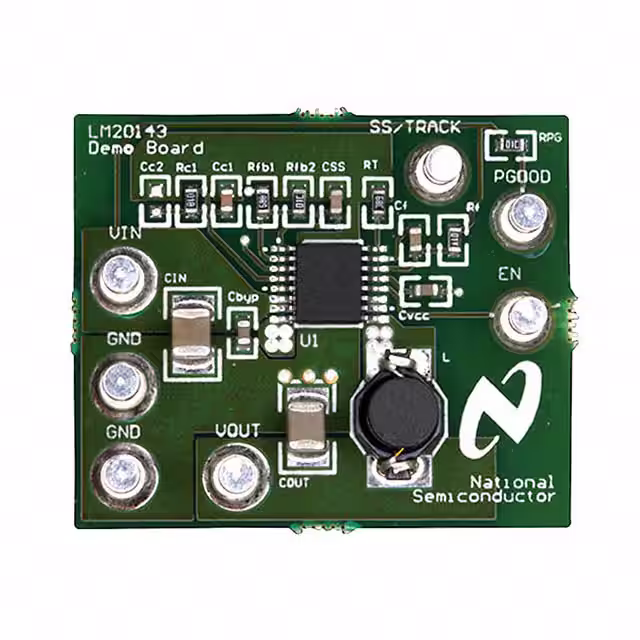

LM20143EVALEVAL BOARD FOR LM20143 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 2.95V ~ 5.5V | Buck | 1.5MHz | Board(s) | LM20143 |
|
BD71815AGW-EVK-101EVAL BOARD FOR BD71815A |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 13 Non-Isolated Outputs | - | - | - | 3.5V ~ 28V | Buck | - | Board(s) | BD71815A |
|

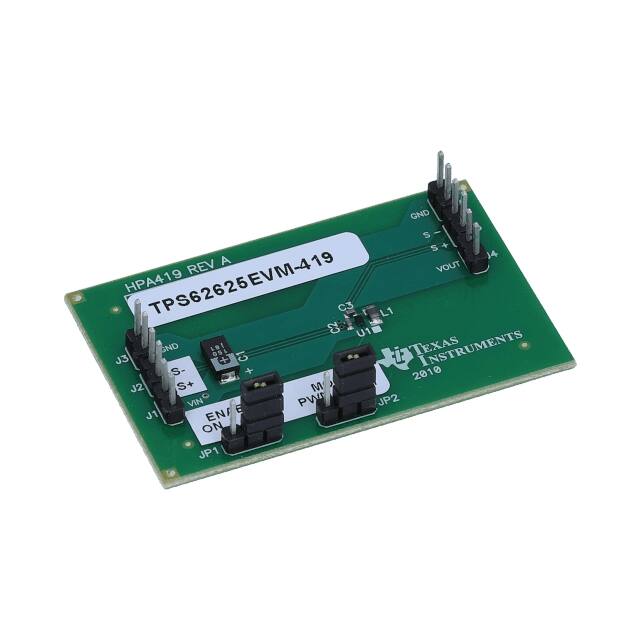

TPS62625EVM-419EVAL BOARD FOR TPS62625 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 2.3V ~ 5.5V | Buck | 6MHz | Board(s) | TPS62625 |
|

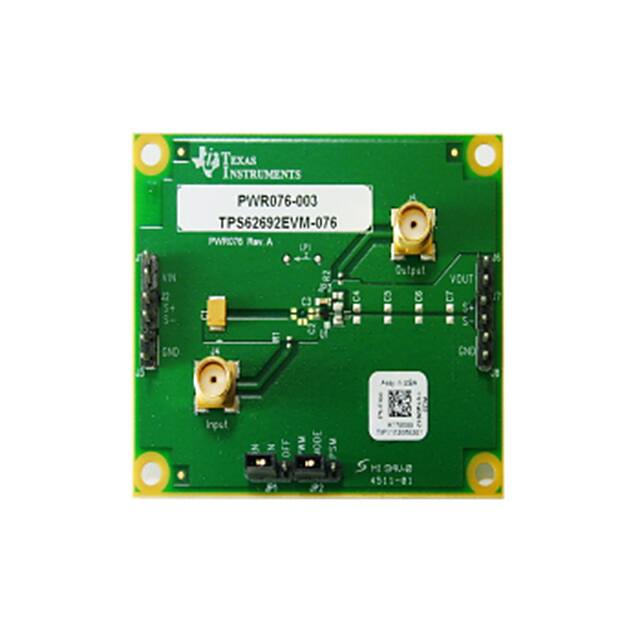

TPS62692EVM-076EVAL BOARD FOR TPS62692 |
6 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.85V | 800mA | 2.3V ~ 4.8V | Buck | 3MHz | Board(s) | TPS62692 |
|

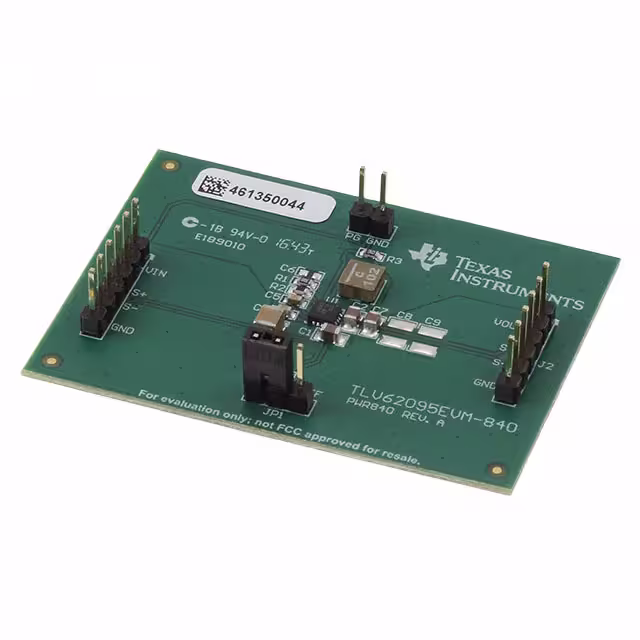

TLV62095EVM-840EVAL BOARD FOR TLV62095 |
5 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.5V ~ 5.5V | Buck | - | Board(s) | TLV62095 |
|
LM20333EVAL/NOPBEVAL BOARD FOR LM20333 |
4 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 25V | Buck | - | Board(s) | LM20333 |
|
TPS61120EVM-205EVAL BOARD FOR TPS61120 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 250mA, 200mA | 1.8V ~ 5.5V | Boost | - | Board(s) | TPS61120 |
|
TPS62020EVM-019EVAL BOARD FOR TPS62020 |
3 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.5V ~ 6V | Buck | - | Board(s) | TPS62020 |
|

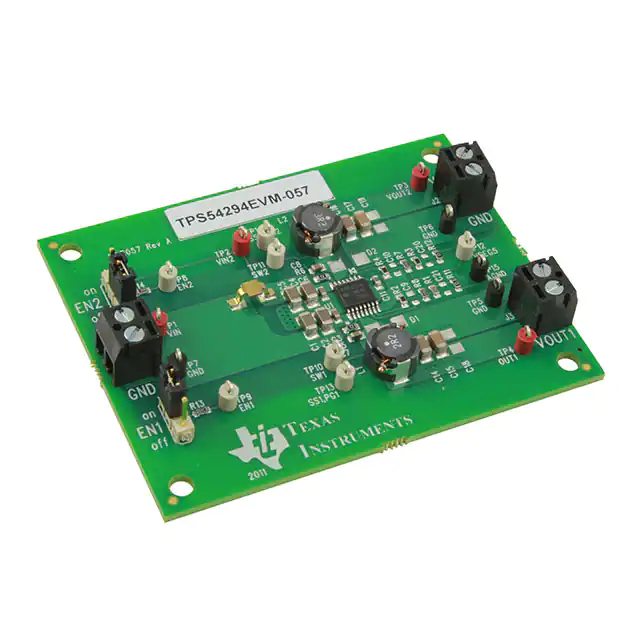

TPS54294EVM-057EVAL BOARD FOR TPS54294 |
3 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2A, 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54294 |
|

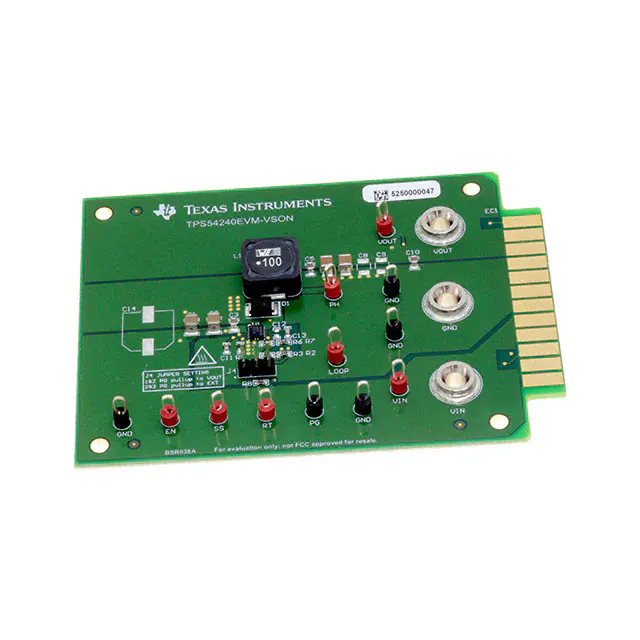

TPS54240EVM-VSONEVAL BOARD FOR TPS54240 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 7V ~ 24V | Buck | 500kHz | Board(s) | TPS54240 |
|
FSL538AFLYGEVBEVAL BOARD FOR FSL538A |
3 |
|
Datasheet | SENSEFET® | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 15 W | 12V, 15V | 1A, 150mA | 90 ~ 265 VAC | Flyback | - | Board(s) | FSL538A |
|
FSL538HFLYGEVBEVAL BOARD FOR FSL538H |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 21 W | - | 660mA | 15V ~ 17V | Flyback | 130kHz | Board(s) | FSL538H |
|

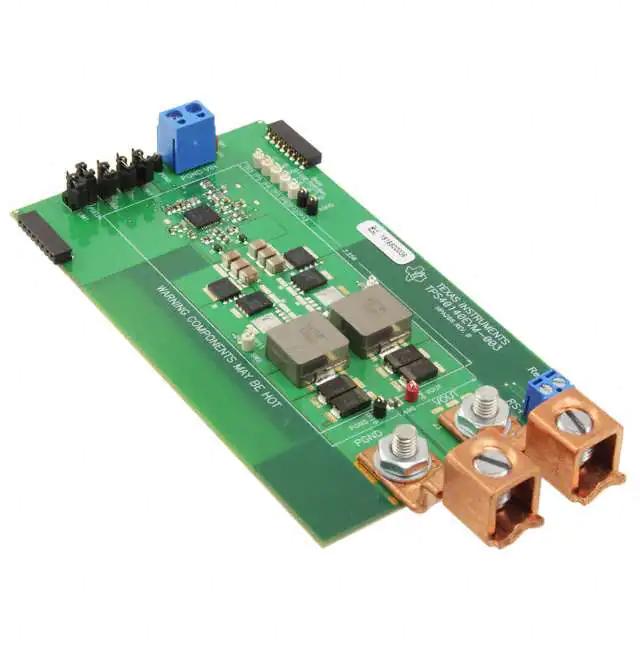

TPS40140EVM-003EVAL BOARD FOR TPS40140 |
3 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 32A | 10.8V ~ 13.2V | Buck | 500kHz | Board(s) | TPS40140 |
|
ADP5075CB-EVALZEVAL BOARD FOR ADP5075 |
0 |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 800mA | 2.85V ~ 15V | Inverting | - | Board(s) | ADP5075 |
