DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS54226EVM-539EVAL BOARD FOR TPS54226 |
2 |
|
Datasheet | SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54226 |
|
TPS54326EVM-540EVAL BOARD FOR TPS54326 |
2 |
|
Datasheet | SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54326 |
|
CSD86350Q5DEVM-604EVAL BOARD FOR CSD86350Q |
2 |
|
Datasheet | NexFET™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 8V ~ 13V | Buck | 290kHz | Board(s) | CSD86350Q |
|
LM5009AEVAL/NOPBEVAL BOARD FOR LM5009A |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 150mA | 8V ~ 75V | Buck | 130kHz | Board(s) | LM5009A |
|
LMZ14201HEVAL/NOPBEVAL BOARD FOR LMZ14201H |
2 |
|
Datasheet | SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 1A | 15V ~ 42V | Buck | - | Board(s) | LMZ14201H |
|

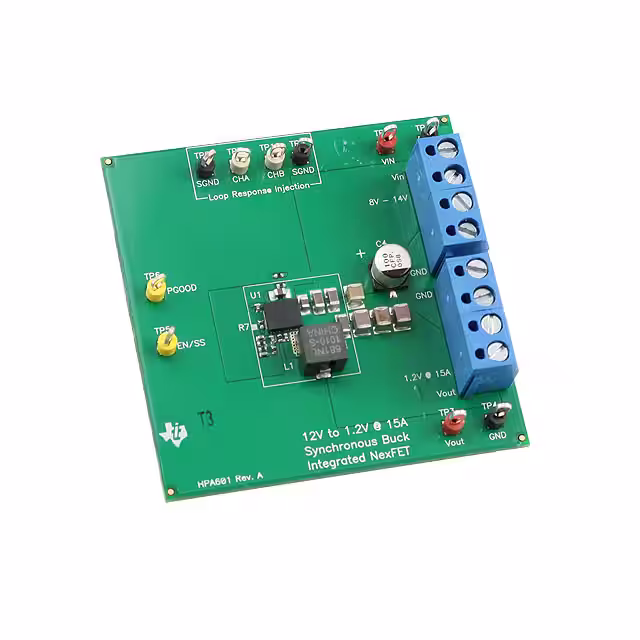

TPS56121EVM-601EVAL BOARD FOR TPS56121 |
2 |
|
Datasheet | SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 15A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS56121 |
|
TLV62065EVM-719EVAL BOARD FOR TLV62065 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.9V ~ 5.5V | Buck | 3MHz | Board(s) | TLV62065 |
|

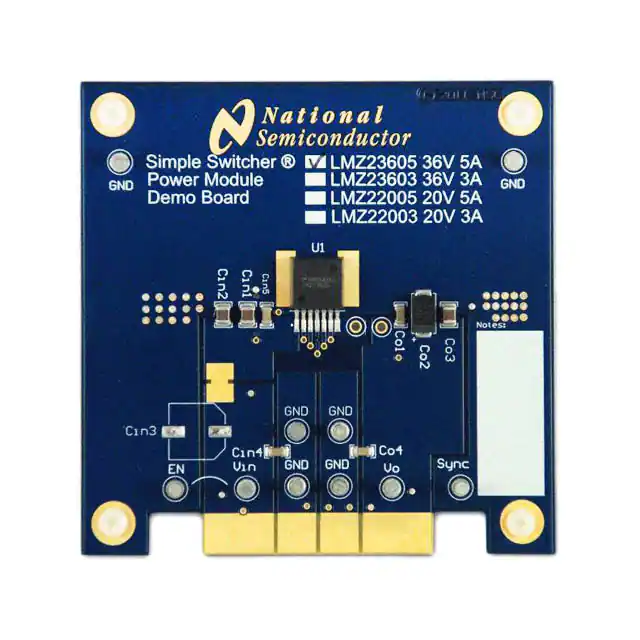

LMZ23605DEMO/NOPBEVAL BOARD FOR LMZ23605 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 36V | Buck | 650kHz ~ 950kHz | Board(s) | LMZ23605 |
|
TPS54295EVM-057EVAL BOARD FOR TPS54295 |
2 |
|
Datasheet | SWIFT™, D-CAP2™ | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS54295 |
|
TPS65270EVMEVAL BOARD FOR TPS65270 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 3A, 2A | 4.5V ~ 16V | Buck | 300kHz ~ 1.4MHz | Board(s) | TPS65270 |
|

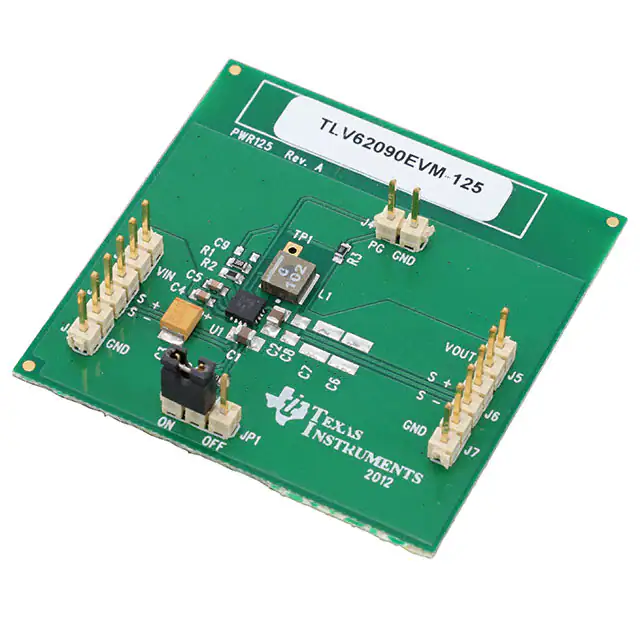

TLV62090EVM-125EVAL BOARD FOR TLV62090 |
2 |
|
Datasheet | DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.5V ~ 6V | Buck | 1.4MHz | Board(s) | TLV62090 |
|

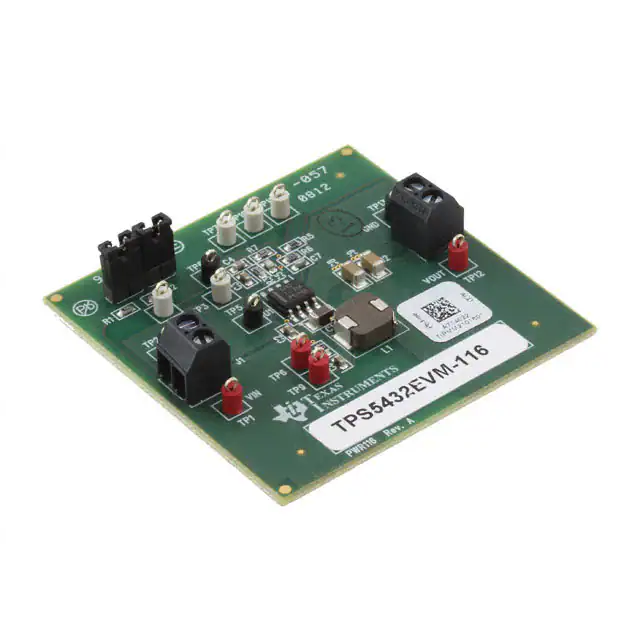

TPS5432EVM-116EVAL BOARD FOR TPS5432 |
2 |
|
Datasheet | SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 6V | Buck | 700kHz | Board(s) | TPS5432 |
|
LM3242TM-EV/NOPBEVAL BOARD FOR LM3242 |
2 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.6V | 750mA | 2.7V ~ 5.5V | Buck | 6MHz | Board(s) | LM3242 |
|
LM22670EVAL/NOPBEVAL BOARD FOR LM22670 |
2 |
|
Datasheet | SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 42V | Buck | 500kHz | Board(s) | LM22670 |
|
LM5018ISOEVAL/NOPBEVAL BOARD FOR LM5018 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 9.5V, 10V | 250mA | 20V ~ 100V | Buck | 750kHz | Board(s) | LM5018 |
|

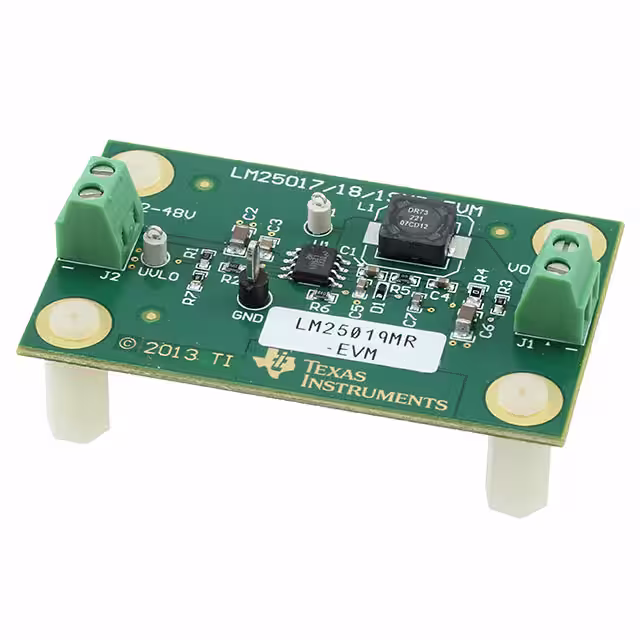

LM25019MR-EVMEVAL BOARD FOR LM25019 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 100mA | 12.5V ~ 48V | Buck | 420kHz | Board(s) | LM25019 |
|
TPS54628EVM-052EVAL BOARD FOR TPS54628 |
2 |
|
Datasheet | D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 6A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS54628 |
|
TPS56528EVM-534EVAL BOARD FOR TPS56528 |
2 |
|
Datasheet | D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | TPS56528 |
|
UCC28720EVM-212EVAL BOARD FOR UCC28720 |
2 |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 100 ~ 240 VAC | Flyback | - | Board(s) | UCC28720 |
|
LM3017EVMEVAL BOARD FOR LM3017 |
2 |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V | 1A | 8V ~ 12V | Boost | 600kHz | Board(s) | LM3017 |
